Product Description

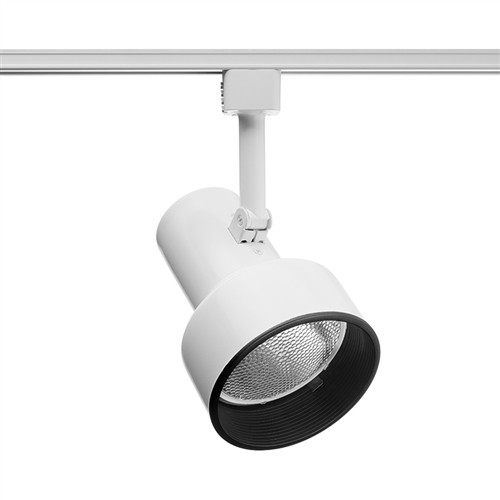

R512B-WH Trac-Lites Step Cylinder Line Voltage is a classic Juno Step Cylinder trac luminaire designed for utilitarian applications that need reliable lamp shielding and clean, focused accent lighting. Featuring a white finish with a black baffle, this fixture accepts PAR30/PAR30L lamps and delivers deep lamp shielding for comfortable viewing angles.
Quick Specs
- Catalog #: R512B-WH
- System: Line Voltage Trac-Lites
- Lamp Type: PAR30 / PAR30L
- Wattage Range: 35-75W
- Finish / Baffle: White / Black Baffle
- Dimensions: 6" (L) x 4 3/8" (Dia) x 4" (Stem)
Shipping
Free shipping on orders over $250
Designed for deep lamp shielding and durable everyday performance in commercial and retail environments.
Product Benefits
- Reduced glare with deep shielding: Step Cylinder design helps control brightness and improves visual comfort in task and accent lighting.
- Clean, professional appearance: White exterior with a black baffle creates a refined look while minimizing lamp view.
- Flexible lamp compatibility: Supports PAR30/PAR30L lamps within the specified 35-75W range for adaptable light output and beam options.
- Ideal for utilitarian applications: A proven trac luminaire style commonly used where durable, straightforward lighting is needed.
Key Features
- Catalog #: R512B-WH
- Line voltage Trac-Lites Step Cylinder lampholder
- White finish with black baffle
- Accepts PAR30 / PAR30L lamps
- 35-75W lamp rating range (lamp dependent)
- Deep lamp shielding for utilitarian and general-purpose trac lighting
Specifications
Technical
| System | Line Voltage Trac-Lites |
| Lamp Type | PAR30 / PAR30L |
| Lamp Wattage Range | 35-75W |
Physical
| Finish | White |
| Baffle | Black |
| Overall Length | 6" |
| Cylinder Diameter | 4 3/8" |
| Stem Dimension | 4" |
Performance
| Optical Control | Deep lamp shielding (Step Cylinder design) |
| Light Output | Dependent on selected PAR30/PAR30L lamp |
Applications
- Retail accent lighting: Highlight shelves, displays, and endcaps using PAR30/PAR30L beam options.
- Hospitality: Lobbies, corridors, and feature walls where glare control and clean aesthetics matter.
- Commercial spaces: Offices, reception areas, and conference spaces needing adjustable trac lighting.
- Galleries and showrooms: Directional aiming for artwork and product illumination.
Installation Tips
- Power safety: Turn power off before installing or relamping on any line voltage trac system.
- Use the correct lamp: Install a PAR30 or PAR30L lamp and keep wattage within 35-75W.
- Aiming: After mounting to the trac, aim the cylinder to target the task/display area and avoid direct glare to occupants.
- Heat management: Allow clearance around the lamp opening for airflow; avoid covering the fixture.
FAQ
What lamp types are compatible with the R512B-WH?
The R512B-WH is designed to use PAR30 and PAR30L lamps.
What is the wattage range for this trac luminaire?
This model supports a 35-75W range when using PAR30/PAR30L lamps within the specified rating.
What does the black baffle do?
The black baffle helps reduce perceived glare and minimizes lamp visibility for improved visual comfort.
Is this a line voltage fixture?
Yes. The R512B-WH is part of the Line Voltage Trac-Lites Step Cylinder family.
What are the fixture dimensions?
The R512B-WH measures 6" in length, 4 3/8" in diameter, and includes a 4" stem dimension as shown on the spec sheet.
Does this fixture include a lamp?
The spec sheet lists compatible lamp types and wattage ranges, but does not indicate that a lamp is included. Use a compatible PAR30/PAR30L lamp.
Where is this fixture commonly used?
It is commonly used for utilitarian trac lighting in retail, hospitality, commercial spaces, galleries, and showrooms where adjustable aiming and lamp shielding are beneficial.
Can I choose different beam spreads?
Beam spread is determined by the selected PAR30/PAR30L lamp, so you can tailor the distribution by choosing the lamp that fits your application.
