Product Description

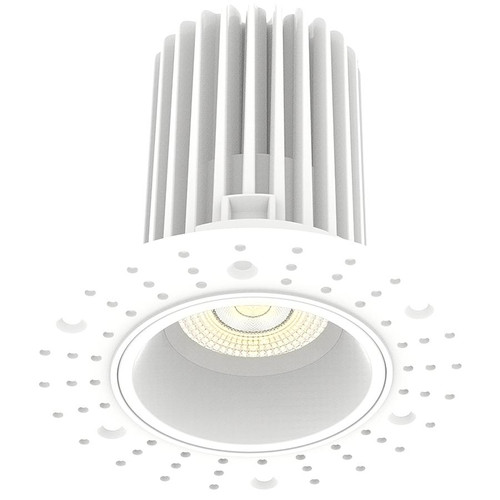

The R3TL Trimless 3IN Round Triac 15W 5CCT 1000LM CRI90 38D White Smooth by RAB Lighting offers a modern, trimless recessed downlight solution with five field-adjustable CCT options, making it versatile for various lighting applications. This high-performance downlight is designed for both new construction and retrofit applications, delivering superior illumination and a sleek, smooth finish for a high-end appearance.
Key Features
- High-end trimless design for a seamless appearance.
- 5 Field-adjustable CCTs: 2700K, 3000K, 3500K, 4000K, 5000K.
- Deep regress design with remote driver.
- Dimmable to 10% on compatible TRIAC/ELV dimmers.
- Energy Star Approved and California Title 24 JA8 compliant.
- Ideal for 90W incandescent equivalency, using just 15W.
- Certified air-tight housing as per ASTM E283.
Specifications
- Lumen Output: 1,250 lumens.
- Wattage: 15W.
- Color Temperature (CCT): 2700K / 3000K / 3500K / 4000K / 5000K (adjustable).
- Color Accuracy (CRI): >90 with R9 >50.
- Beam Angle: 38° ± 5°.
- Voltage: 120V.
- Lifespan: 50,000 hours (L70).
- Compliance: ETL Listed, RoHS-compliant, NEC, Energy Star certified.
- Operating Temperature: -13°F to 104°F (-25°C to 40°C).
- Finish: White Smooth.
Installation Tips
- Use the included template to cut a precise hole in the ceiling.
- Mount the trimless fixture securely with the provided screws.
- Patch the trim with stucco or plaster for a seamless finish.
- Connect the driver box to the fixture using the twist-lock connector.
- Adjust the desired color temperature (CCT) via the switch before closing the driver box.
Frequently Asked Questions
Q: Can this downlight be used in damp locations?
A: Yes, the fixture is suitable for dry, damp, and wet environments.
Q: Is the color temperature adjustable?
A: Yes, it has 5 field-adjustable color temperatures: 2700K to 5000K.
Q: What dimmers are compatible?
A: This downlight is compatible with TRIAC and ELV dimming systems.
Q: Can it be installed in insulated ceilings?
A: Yes, it is IC-rated and safe for direct contact with insulation.
Q: What is the equivalent incandescent wattage?
A: It is equivalent to a 90W incandescent bulb.
Q: Is the fixture energy-efficient?
A: Absolutely, it is Energy Star-certified and consumes only 15W of power.
