Product Description

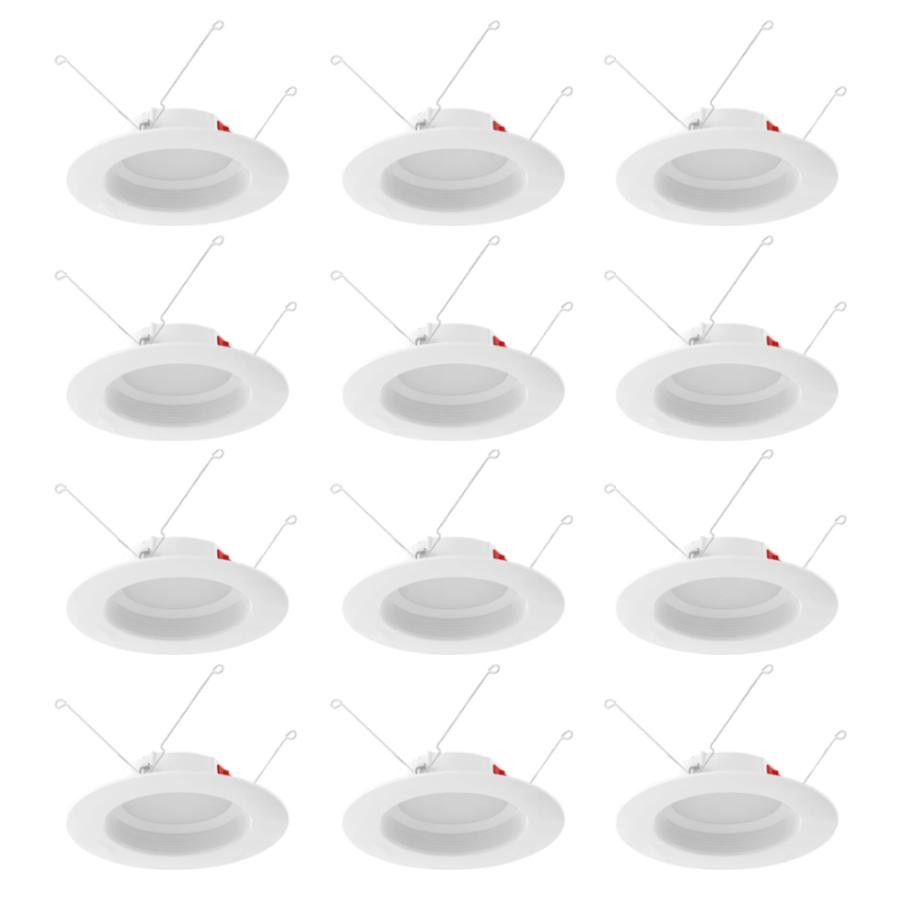

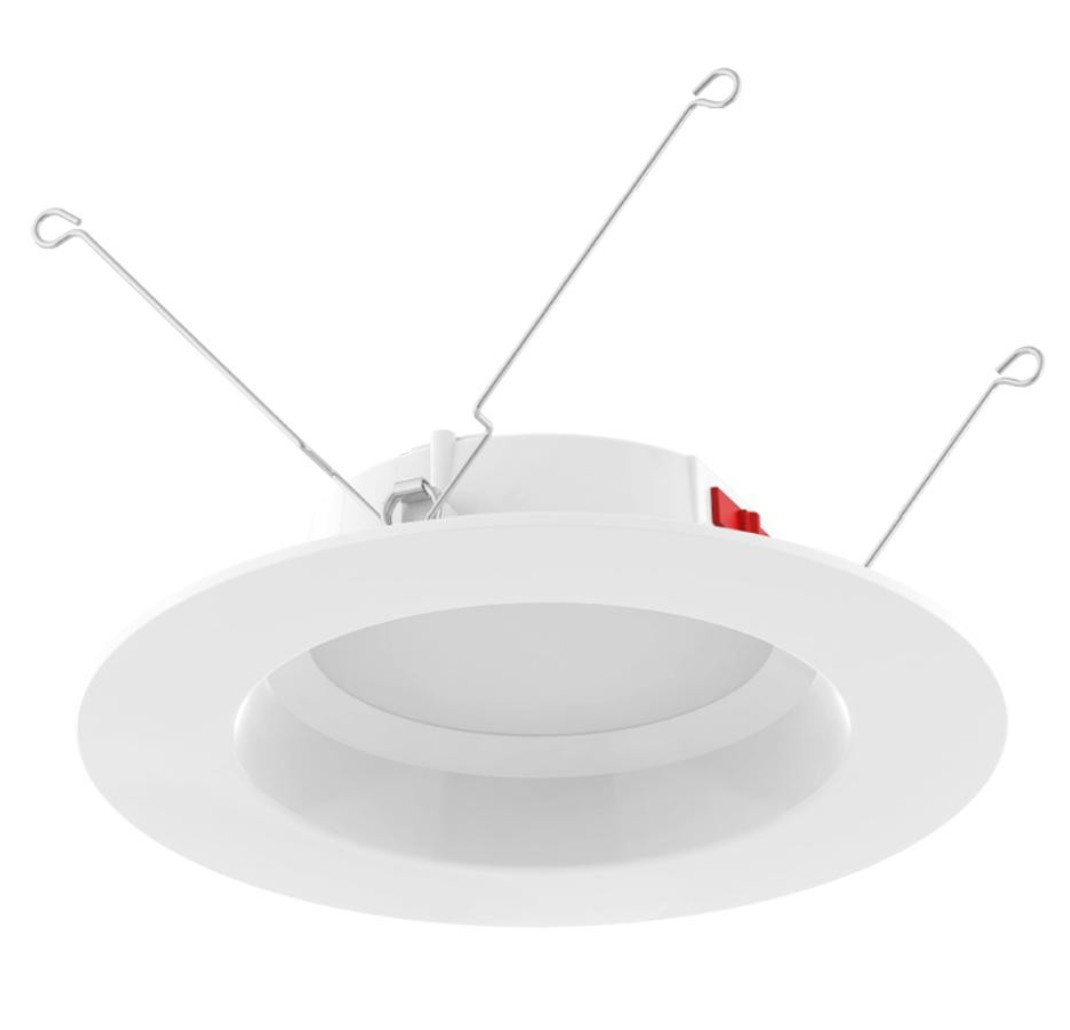

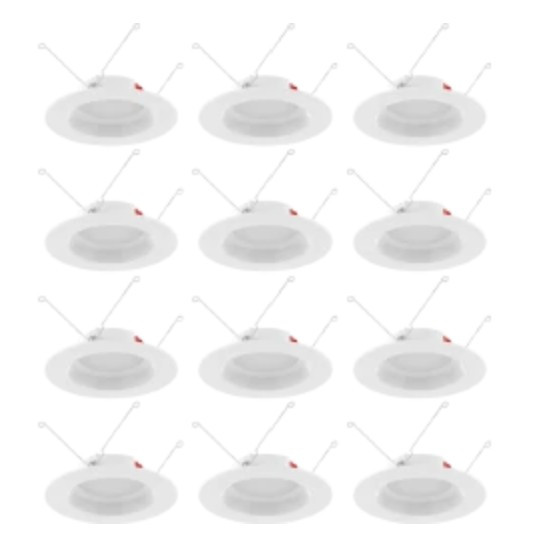

R34-6B/BP Recessed 6" Round E26 Baffle 10W 5CCT CRI90 Baffle 12PACK by RAB Lighting is a versatile LED retrofit downlight designed to upgrade existing recessed housings with high-efficiency illumination and selectable color temperatures. Delivering up to 989 lumens while consuming only 10W, this energy-efficient retrofit provides smooth, evenly distributed light with a durable baffle trim design. With five field-adjustable color temperatures and simple E26 installation, it is an ideal solution for residential and commercial lighting upgrades.
Product Summary
- Brand: RAB Lighting
- Model: R34-6B/BP
- Type: 6" LED Recessed Retrofit Downlight
- Wattage: 10W
- Lumen Output: 912–989 lm
- Color Temperatures: 2700K / 3000K / 3500K / 4000K / 5000K selectable
- Color Rendering: 90 CRI
- Beam Angle: 90°
- Voltage: 120V
- Dimming: TRIAC / ELV dimmable to 10%
- Base Type: E26 Edison adapter included
- Pack Size: 12 Pack
- Warranty: 5-Year Manufacturer Warranty
- Shipping: Free shipping on orders over $250
Product Benefits
- Provides energy-efficient LED performance with only 10W power consumption while replacing up to 75W incandescent lamps.
- 5 selectable color temperatures allow installers to choose the ideal light tone for residential, retail, or commercial environments.
- Simple retrofit installation using the included E26 Edison adapter makes upgrading existing recessed housings fast and convenient.
- Smooth, glare-reducing baffle trim provides comfortable lighting and improved visual performance in living spaces.
Key Features
- Field Adjustable CCT: 2700K / 3000K / 3500K / 4000K / 5000K selectable via switch.
- High Color Accuracy: 90 CRI with strong R9 value for vibrant color rendering.
- Energy Efficient: Delivers up to 989 lumens at up to 105.2 lm/W.
- Dimmable Performance: Compatible with TRIAC and ELV dimmers down to 10%.
- Long Life: 50,000-hour LED lifespan.
- Wide Beam Distribution: 90° beam angle for general illumination.
- Durable Construction: Anti-UV plastic housing with frosted polycarbonate diffuser.
- Retrofit Friendly: Designed to work with most standard recessed housings.
Specifications
Technical Specifications
| Product Type | LED Recessed Retrofit Downlight |
| Size | 6" |
| Input Voltage | 120V |
| Operating Frequency | 60 Hz |
| Input Wattage | 10W |
| Wattage Equivalent | 75W Incandescent |
| Driver Type | Constant Current |
Performance Specifications
| Lumen Output | 912–989 lm |
| Efficacy | 99.3–105.2 lm/W |
| Beam Angle | 90° |
| Color Temperature | 2700K / 3000K / 3500K / 4000K / 5000K selectable |
| CRI | 90 |
| Lifespan | 50,000 hours (L70) |
| Dimming | TRIAC / ELV dimmable to 10% |
Physical & Construction
| Shape | Round |
| Trim Style | Baffle |
| Finish | White |
| Lens | Frosted polycarbonate diffuser |
| Material | Plastic |
| Weight | 0.4 lb |
| Base Type | E26 Edison adapter |
Compliance & Certifications
| Listings | UL Classified |
| Energy Star | ENERGY STAR® Certified |
| Environment Rating | Dry, Damp, and Wet Locations |
| Operating Temperature | -4°F to 104°F |
| CEC Status | Lawful for sale in California |
| RoHS | Mercury and UV free |
| FCC | Complies with Part 15 |
Applications
- Residential recessed lighting upgrades
- Living rooms, kitchens, and hallways
- Retail and hospitality lighting
- Office and commercial interior spaces
- Closets and general-purpose ceiling lighting
- Retrofit installations replacing incandescent or halogen lamps
Installation Tips
- Turn off power at the circuit breaker before installing or servicing the fixture.
- Remove the existing trim and lamp from the recessed housing.
- Screw the included E26 adapter into the existing socket.
- Select the desired CCT setting using the switch on the driver box before installation.
- Connect the adapter cable and push the retrofit trim into the housing until flush with the ceiling.
- Ensure wiring is safely routed inside the housing and not exposed to sharp edges.
Frequently Asked Questions
What housings are compatible with this retrofit downlight?
This retrofit LED downlight is designed to work with most standard 6" recessed housings using an E26 Edison socket.
Does this light support dimming?
Yes. The fixture is compatible with TRIAC and ELV dimmers and can dim down to approximately 10% light output.
Can I change the color temperature after installation?
The color temperature must be selected using the switch on the driver before final installation into the ceiling housing.
How bright is this fixture?
The fixture produces between 912 and 989 lumens depending on the selected color temperature setting.
What does 5CCT mean?
5CCT indicates five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K, allowing you to choose the desired light tone.
Is this light suitable for damp or wet environments?
Yes. The fixture is rated for dry, damp, and wet locations, making it suitable for bathrooms and covered outdoor areas.
How long will the LED last?
The LED module is rated for approximately 50,000 hours of operation under normal conditions.
What comes in the box?
The package includes the LED downlight, an E26 adapter, and installation instructions.
