Product Description
Juno Trac-Lites R22BL Cord and Plug Connector provides a quick, portable way to power Juno Trac-Lites track sections using a 15-foot cord with an in-line switch. Finished in black to blend with contemporary retail and display environments, it’s a practical option when a junction box feed isn’t available.
- Catalog #: R22BL
- Finish: Black
- Cord Length: 15 ft (2-wire)
- Switch: In-line On/Off
- Max Current: 7A
- Includes: Surface wire retainers
- Rating: Not UL Rated
- System: Juno Trac-Lites
Free shipping on orders over $250
Fast processing, careful packaging, and expert support.
Benefits
- Plug-and-play power for track runs when a hardwired feed isn’t practical.
- Integrated in-line switch enables local control without extra accessories.
- Extended reach with a 15-foot cord to access distant receptacles.
- Clean installation using included surface wire retainers to manage the cord path.
Key Features
- Catalog: R22BL for black finish (R22WH/R22SL variants available separately).
- 2-wire cord assembly designed for Juno Trac-Lites systems.
- In-line switch for convenient on/off control.
- 7A maximum current capacity for connected track load.
- Surface wire retainers included to secure and route the cord neatly.
Specifications
Technical Specs
| System Compatibility | Juno Trac-Lites track |
| Max Current | 7A |
| Switch Type | In-line On/Off |
| Conductors | 2-wire cord |

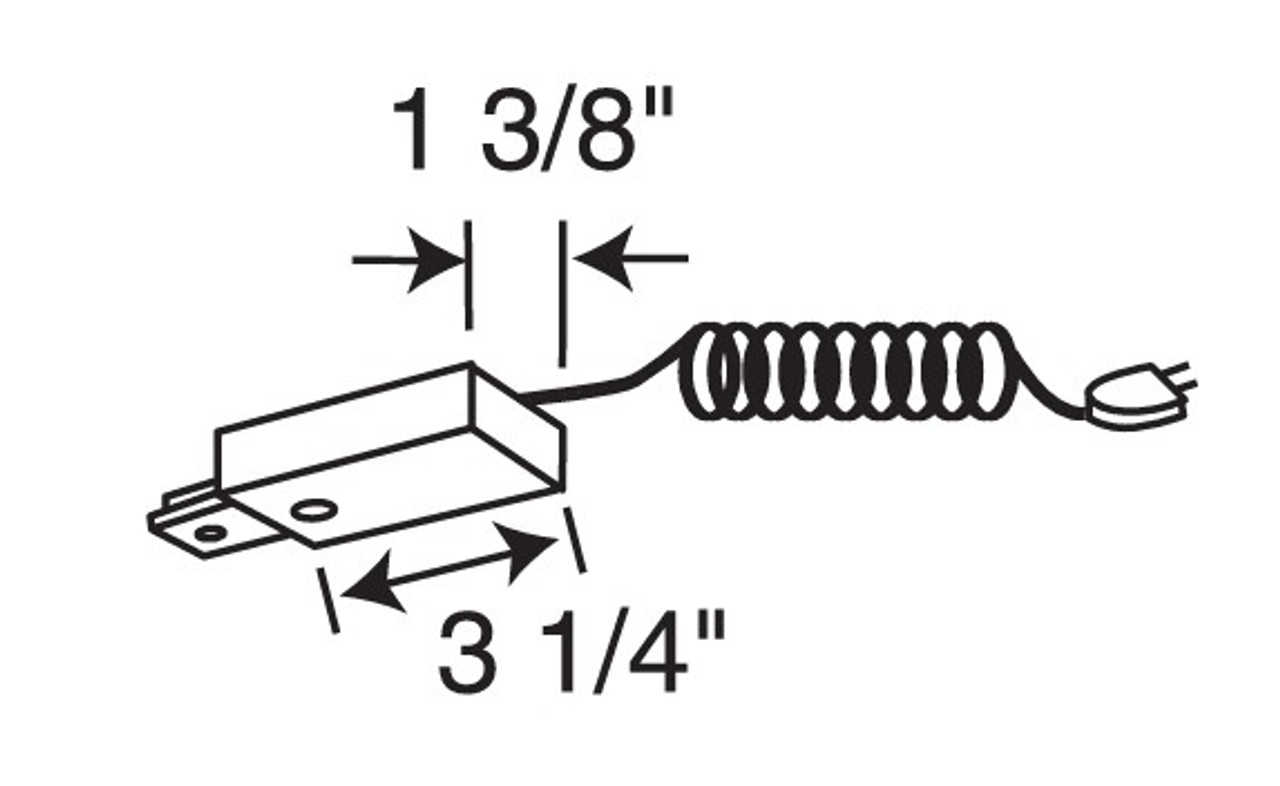

Physical Specs
| Cord Length | 15 ft |
| Finish / Color | Black |
Performance Specs
| Electrical Rating | 7A maximum |
| Voltage | — |
Compliance & Safety
| Listings | Not UL Rated |
| Use Guidelines | Follow local codes; suitable where cord-and-plug feeds are permitted. |
Application Examples
- Retail displays and pop-up shops needing temporary track lighting.
- Showrooms and trade-show booths without convenient junction boxes.
- Studios and workshops requiring flexible, movable setups.
- Residential accent lighting where plug-in track is acceptable by code.
Installation Tips
- Plan the cord route first and use the included surface wire retainers to secure it along walls or ceilings.
- Verify the total connected load on the track does not exceed 7A.
- Mount the connector firmly to the track and test the in-line switch before finalizing placement.
- Keep the cord clear of moving parts, doorways, and heat sources.
- Confirm cord-and-plug track feeds are permitted by local electrical codes.
Frequently Asked Questions
What does the R22BL include?
It includes a black cord-and-plug connector assembly with a 15-foot 2-wire cord, an in-line on/off switch, and surface wire retainers.
Is the R22BL UL listed?
No, it is noted as not UL rated. Always verify that cord-and-plug track feeds are acceptable in your jurisdiction.
How much load can I place on the connected track?
The assembly is rated for a maximum of 7 amps. Ensure the sum of all fixtures and accessories on the track does not exceed this value.
Does the cord include a switch?
Yes, an in-line on/off switch is integrated for local control.
What track systems does this work with?
It is designed for use with Juno Trac-Lites track systems.
What is the cord length and conductor count?
The cord is 15 feet long and uses two conductors (2-wire).
Can I dim fixtures when using the R22BL?
Dimming depends on the fixtures and controls used on the track, not the connector. Ensure the total load and control method are compatible and within the 7A limit.
Is hardwiring required?
No. This product provides a plug-in method to power the track when a junction box feed is not feasible.
