Product Description

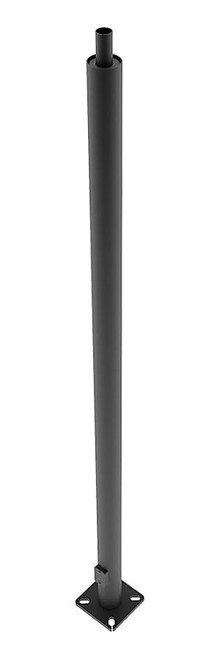

RAB PR4-11-10WT 4" Round Steel Pole (11 Gauge, 10 Feet, Welded Tenon) is a heavy‑duty round parking/area‑lighting pole with a square base and welded 2-3/8" tenon. Finished in a durable bronze TGIC polyester powder coat, it features reinforced hand holes with grounding lug and a removable cover for fast wiring access. This 10' pole is custom manufactured for ground mounting applications and includes a full wind/EPA rating table for proper fixture selection.
- Height: 10 ft
- Shaft Size: 4" round, 11 gauge (1/8" wall)
- Tenon: 2-3/8" welded tenon (included)
- Base: Square base, slotted plate (36,000 psi)
- Material Strength: Shaft ≥ 46,000 psi minimum yield
- Finish/Color: Bronze TGIC polyester powder coat
- Listed: CSA, suitable for wet locations
- Weight: 67.5 lb (approx.)
- Free shipping on orders over $250
Product Benefits
- Ready for fixtures with included 2-3/8" welded tenon—no extra adapters required.
- Durable construction with high-yield steel shaft and TGIC powder coat for long outdoor life.
- Easy wiring access via reinforced hand holes and removable cover with grounding lug.
- Engineered wind ratings help match pole to fixture EPA for code-compliant designs.
Key Features
- 4" round, 11‑gauge steel shaft designed for ground mounting.
- Square base with slotted plate for simplified alignment.
- Reinforced hand holes with grounding lug and removable cover.
- Heavy‑duty bronze finish (TGIC polyester) for corrosion resistance.
- Accessories available—BASE‑R4 base/cap, BOLT4/11 anchor bolts.
Enhanced Specifications
| Technical Specs | |
|---|---|
| Model | PR4‑11‑10WT |
| Description | 4" Round Steel Pole, 11 Gauge, 10', Square Base, Welded 2‑3/8" Tenon |
| Mounting | Ground mounting |
| Hand Holes | Reinforced; grounding lug; removable cover |
| Accessories | BASE‑R4 (base/cap), BOLT4/11 (anchor bolts) |
| Physical Specs | |
|---|---|
| Height | 10 ft |
| Shaft Size | 4" round |
| Gauge / Wall | 11 gauge / 1/8" wall |
| Base Plate | Square, slotted |
| Finish | Bronze TGIC polyester powder coat |
| Approx. Weight | 67.5 lb |
| Performance & Ratings | |
|---|---|
| Shaft Strength | ≥ 46,000 psi minimum yield |
| Base Plate Strength | 36,000 psi |
| Tenon | 2‑3/8" OD welded tenon (included) |
| Color | Bronze |
| Compliance & Safety | |
|---|---|
| Listing | CSA Listed; suitable for wet locations |
| Buy American | Available as BAA‑compliant upon request (quote required) |
| Anchor Bolt Template | Print on 11" × 17"; verify scale before use; templates ship with bolts |
| Terms of Sale | Pole Terms of Sale available online |
Max EPA (ft²) / Max Weight (lb) by Wind Speed
| Wind Speed | Max EPA | Max Weight |
|---|---|---|
| 70 MPH | 19.1 ft² | 700 lb |
| 80 MPH | 14.4 ft² | 620 lb |
| 90 MPH | 11.1 ft² | 585 lb |
| 100 MPH | 8.7 ft² | 445 lb |
| 110 MPH | 7.0 ft² | 370 lb |
| 120 MPH | 5.7 ft² | 335 lb |
| 130 MPH | 4.6 ft² | 300 lb |
| 140 MPH | 3.8 ft² | 265 lb |
| 150 MPH | 3.1 ft² | 180 lb |
Application Examples
- Parking lots and drive lanes using 2-3/8" tenon‑mount area lights.
- Walkways, campuses, and municipal sites needing 10' mounting height.
- Perimeter lighting for small lots, car dealerships, or retail plazas.
- Sports practice areas and parks with low‑to‑medium mounting heights.
Installation Tips
- Verify anchor bolt template is printed to scale (11"×17") before drilling the foundation.
- Confirm EPA/weight of the luminaire(s) and brackets are within limits for your local wind speed.
- Ensure proper grounding using the provided grounding lug inside the hand hole.
- Level the base using shims as needed; torque anchor nuts per engineering requirements.
- Seal conduit openings and apply anti‑seize to hardware in coastal/corrosive environments.
- Have installation performed by qualified personnel in accordance with local codes.
Frequently Asked Questions
Q: What size tenon is welded on this pole?
A: A 2‑3/8" OD welded tenon is included—ready for most area light heads.
Q: Is the base plate included and what is its strength?
A: Yes, the square slotted base plate is integral to the pole and is rated at 36,000 psi.
Q: Can I use this in wet outdoor locations?
A: Yes. The pole is CSA Listed and suitable for wet locations.
Q: Are anchor bolts and base covers included?
A: They are sold separately. Matching accessories are BASE‑R4 (base/cap) and BOLT4/11 (anchor bolt kit).
Q: How do I make sure the foundation is correct?
A: Use the provided anchor bolt template, verify scale before use, and follow local engineering requirements.
Q: Is a BAA‑compliant version available?
A: Yes—upon request. Contact for a quote if Buy American Act compliance is required.
