Product Description
PJ2-3BRL-GWH-A02 Lutron Pico Smart Remote for Audio gives you simple, fingertip control of Sonos and other supported audio systems through Lutron platforms. This battery-powered, three-button remote with raise/lower is compact, reliable, and installs anywhere without wiring.
Product Summary
- Platform Compatibility: Caséta Wireless, RadioRA 2, HomeWorks QS (via Lutron Smart Bridge / Connect Bridge)
- Audio Support: Works with Sonos and select audio control systems
- Control Layout: 3-Button with Raise/Lower (3BRL) — Play/Pause, Next Track/Favorite, Volume Up/Down
- Power: 3 V (CR2032 coin cell included), up to 10-year battery life
- Wireless: RF 431–437 MHz, typical range up to 30 ft (9 m)
- Environment: Indoor use; 32–140 °F (0–60 °C), ≤90% RH non-condensing
- Finish: Gloss White (GWH)

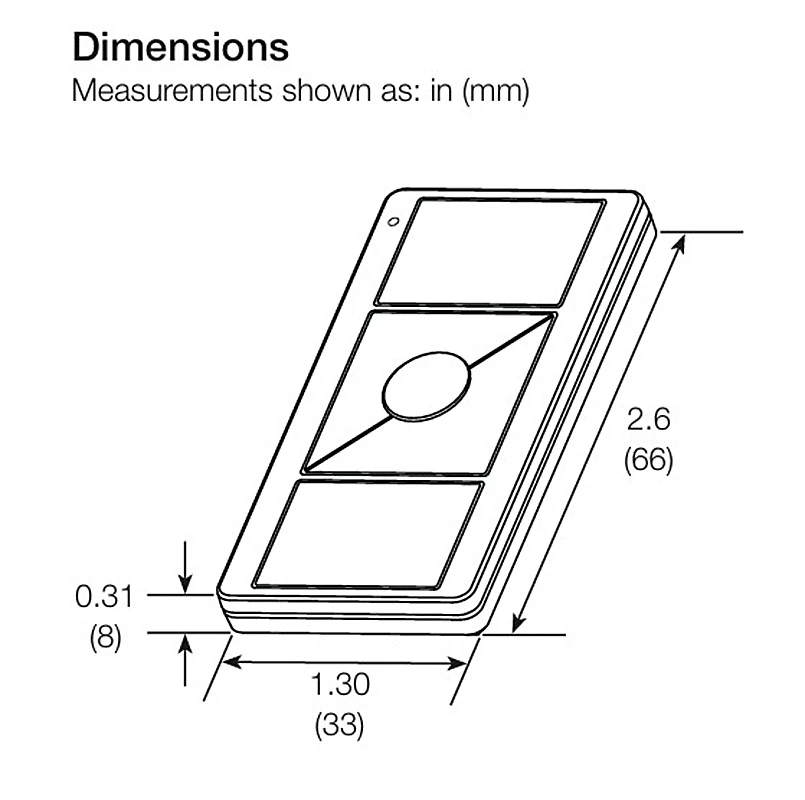

- Dimensions (W × H × D): 1.30" × 2.6" × 0.31"
Free shipping on orders over $250
Product Benefits
- No-wire installation: Mount on a wall, pedestal, or keep handheld—no power or communication wiring required.
- Instant audio control: Play/pause, adjust volume, skip tracks, or step through favorite stations from anywhere in the room.
- Long-life battery: Up to a decade on a single CR2032 for low maintenance in busy spaces.
- Seamless ecosystem: Integrates with Lutron Caséta, RadioRA 2, and HomeWorks QS for whole-home scenes that include audio.
Key Features
- 3BRL layout: Three buttons plus raise/lower rocker for intuitive audio navigation.
- Sonos support: Control play/pause, next track, and cycle favorite stations.
- Flexible mounting: Adhesive or screw-mount; wallbox adapter and pedestals available.
- Reliable RF: Thousands of unique addresses minimize interference.
- Status LED: Confirms button presses and programming mode.
Enhanced Specifications
Technical Specs
| Wireless Protocol | RF, 431–437 MHz |
| System Range | Up to 30 ft (9 m) to Smart Bridge/Repeater |
| Compatibility | Caséta Wireless, RadioRA 2, HomeWorks QS (with Lutron Smart Bridge / Connect Bridge) |
| Button Configuration | 3 Button with Raise/Lower (3BRL), Audio (A02) labeling |
Physical Specs
| Dimensions | 1.30" W × 2.6" H × 0.31" D |
| Finish / Color | Gloss White (GWH) |
| Mounting Options | Adhesive (included), screw-mount kit (PICO-SM-KIT), wallbox adapter (PICO-WBX-ADAPT), pedestals (L-PEDX-XX) |
Performance & Power
| Operating Voltage | 3 V DC |
| Battery Type | CR2032 coin cell (included) |
| Battery Life | Up to 10 years (typical) |
| Operating Temperature | 32–140 °F (0–60 °C) |
| Humidity | ≤90% RH, non-condensing |
| Use Case | Indoor only |
Compliance & Safety
| Certifications | FCC (US), IC (Canada), plus regional certifications |
| Quality | Lutron ISO 9001 registered |
| Warranty | 1-Year Limited Warranty |
Application Examples
- One-touch Sonos control in living rooms, kitchens, and bedrooms
- Guest-friendly audio scenes in hospitality suites and MDUs
- Conference room background music control paired with Lutron keypads
- Tabletop control using single/double/triple/quad L-PEDX-XX pedestals
Installation Tips
- Pairing: Add the Pico in the Lutron app (Caséta or Lutron Connect) and assign it to your bridge/repeater within range.
- Mounting: Use the included adhesive for smooth surfaces or the PICO-SM-KIT for screw-mounting. For in-wall look, use PICO-WBX-ADAPT with a compatible wallplate.
- Metal Surfaces: If mounting on metal, use PICO-MOUNT-1-XX-CPN5733 to maintain RF performance.
- Batteries: Replace with a quality CR2032; observe polarity and recycle properly.
- Range: Place the Smart Bridge/Repeater within ~30 ft and away from large metal objects for best reliability.
Frequently Asked Questions
Does this Pico work without a Lutron bridge?
The audio Pico is configured through a Lutron Smart Bridge or Connect Bridge. Add it in the Lutron app, then link it to your audio system.
Is it compatible with Sonos?
Yes. It supports Sonos for play/pause, next track, and favorite station cycling when set up through the Lutron app.
What is the expected battery life?
Typical life is up to ten years from the included CR2032 coin cell, depending on usage and environment.
How far can the Pico be from the bridge or repeater?
Plan for about 30 ft (9 m). For larger homes, position repeaters or the bridge to maintain reliable coverage.
Can I mount it like a regular wall switch?
Yes. Use the PICO-WBX-ADAPT wallbox adapter and a compatible wallplate, or choose the PJ2-WALL-WH-L01R kit.
What if I need a tabletop controller?
Select from L-PEDX-XX pedestals (single, double, triple, or quadruple) to place the Pico on a desk or nightstand.
Will metal surfaces affect performance?
Mounting on metal can reduce RF range. Use the PICO-MOUNT-1-XX-CPN5733 to maintain performance on metal surfaces.
Which button layout is this model?
It is the 3BRL (three buttons with raise/lower) “Audio” variant with labeled play/pause, next/favorite, and volume controls.
