Product Description

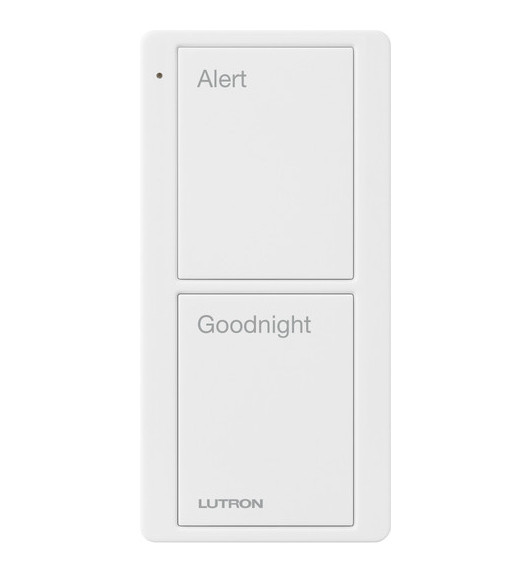

PJ2-2B-GWH-P02 Lutron 2-BUTTON Scene Pico Smart Remote, Pre-engraved “Alert/Goodnight” is a versatile wireless keypad designed for effortless scene control within Lutron lighting and shading systems. This battery-powered control pairs seamlessly with Caséta, RA2 Select, RadioRA 2, and HomeWorks QS systems, offering users a quick way to activate “Alert” or “Goodnight” lighting scenes at the touch of a button.
Product Summary
- Model: PJ2-2B-GWH-P02 Pico Scene Keypad
- Finish / Color: Gloss White (GWH)
- Buttons: 2-button with pre-engraved Alert / Goodnight (P02)
- Power: 3V CR2032 battery (included), up to 10-year life
- RF Range: 30 ft through walls; 60 ft line-of-sight
- RF Band: Clear Connect, 431–437 MHz
- Compatible Systems: Caséta, RA2 Select, RadioRA 2, HomeWorks QS

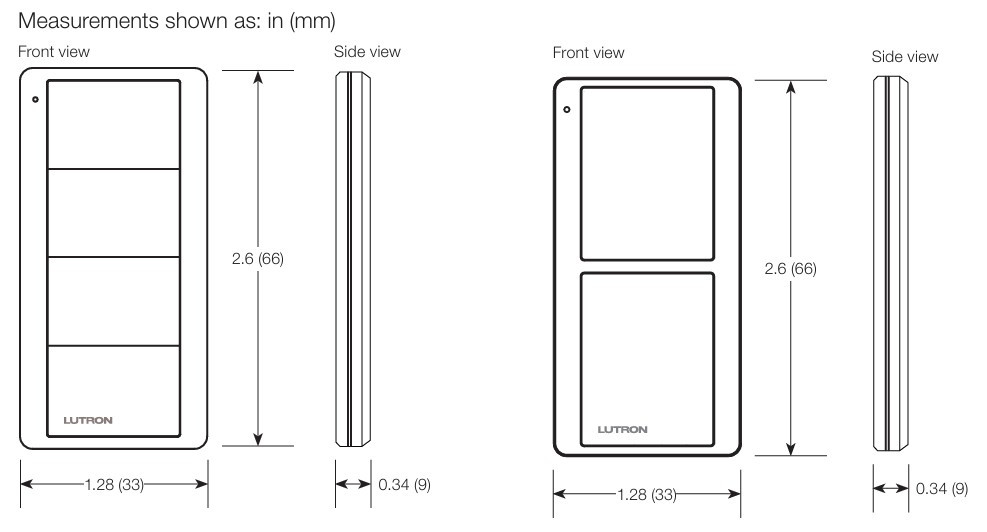

- Dimensions: 2.6" H × 1.28" W × 0.34" D
- Environment: Indoor use only; 32–140 °F; ≤ 90% RH non-condensing
- Mounting: Adhesive (included), optional screw/wallbox/pedestal kits
- Compliance: FCC, IC, NOM, COFETEL, Anatel certified
- Warranty: 1-year limited
Free shipping on orders over $250
Product Benefits
- Custom lighting control: One-touch scene activation for “Alert” and “Goodnight” moods.
- Battery-powered convenience: No wiring required, simple installation anywhere in minutes.
- Reliable Clear Connect RF: Ensures consistent communication free of interference.
- Flexible installation: Use handheld, wall-mounted, or on a tabletop pedestal.
Key Features
- Pre-engraved buttons: “Alert” and “Goodnight” labeling simplifies everyday control.
- Multi-system support: Compatible with Caséta, RA2 Select, RadioRA 2, and HomeWorks QS.
- Long battery life: Up to 10 years using one CR2032 lithium coin cell.
- Indicator LED: Flashes upon button press or during programming mode.
- Compact, low-profile design: Slim 0.34” depth suits modern décor.
Specifications
Technical Specs
| Manufacturer | Lutron Electronics |
| Model / SKU | PJ2-2B-GWH-P02 |
| Wireless Protocol | Clear Connect RF, 431–437 MHz |
| Range | 30 ft (through walls) / 60 ft (line-of-sight) |
| Systems Supported | Caséta, RA2 Select, RadioRA 2, HomeWorks QS |
Physical Specs
| Dimensions (H × W × D) | 2.6" × 1.28" × 0.34" |
| Finish / Color | Gloss White (GWH) |
| Mounting Options | Adhesive mount (included); optional screw, wallbox, or pedestal kits available |
Performance & Electrical
| Operating Voltage | 3 V (CR2032 coin cell battery) |
| Battery Life | Up to 10 years (typical use) |
| Operating Environment | 32–140 °F (0–60 °C); ≤ 90% RH, indoor use only |
Compliance & Safety
| Certifications | FCC (U.S.), IC (Canada), NOM (Mexico), COFETEL, SUTEL, Anatel (Brazil) |
| Quality Standard | Lutron ISO 9001:2015 Certified |
Application Examples
- Bedroom bedside control for “Alert” and “Goodnight” lighting scenes
- Children’s room or guest suite quick-access scene keypad
- Hallway or master suite use for nighttime safety or comfort lighting
- Integrated into Caséta or HomeWorks QS for unified lighting scenes
Installation Tips
- Use included adhesive for smooth, clean mounting surfaces.
- For non-smooth or permanent installations, use the PICO-SM-KIT screw mount.
- Use PICO-WBX-ADAPT for wallbox installations with decorator wallplates.
- Mount on non-metal surfaces for optimal RF performance; if metal is necessary, use PICO-MOUNT-XX-CPN67741.
- Program via the compatible Lutron app or system software to customize the Alert/Goodnight functions.
FAQ
Q: What lighting systems are compatible with this Pico keypad?
A: It works with Caséta, RA2 Select, RadioRA 2, and HomeWorks QS systems.
Q: What do the buttons “Alert” and “Goodnight” do?
A: They activate customizable lighting scenes—typically for alert mode or bedtime shutdowns.
Q: How long does the battery last?
A: Approximately 10 years with typical daily use.
Q: Can it be mounted in a wallbox?
A: Yes, using the optional PICO-WBX-ADAPT adapter and decorator wallplate.
Q: Does it require wiring?
A: No, it’s fully wireless and powered by a coin cell battery.
Q: Is this model available in other finishes?
A: Yes, Pico keypads come in Gloss and Satin Colors finishes.
Q: How do I maintain RF performance near metal?
A: Use the PICO-MOUNT-XX-CPN67741 accessory for proper signal strength.
Q: Can it control shades or drapes?
A: Yes, it can be assigned to lighting, shades, or drapes through the Lutron app.
