Product Description

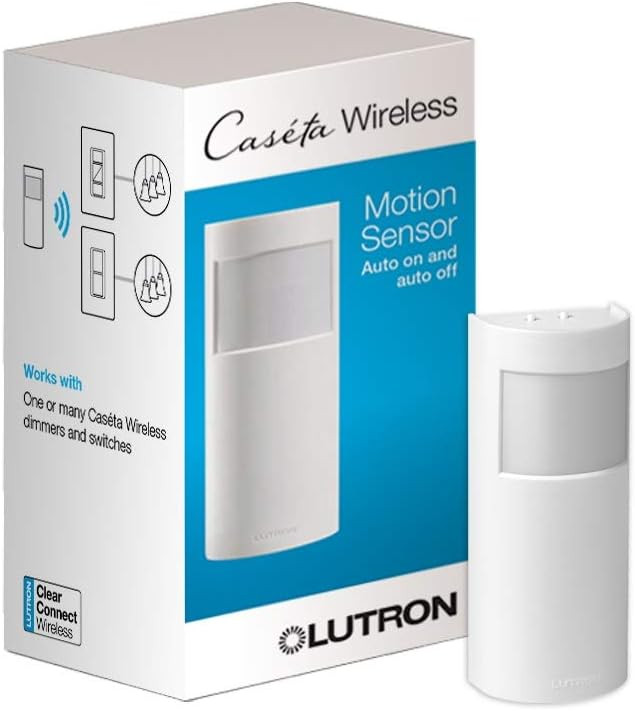

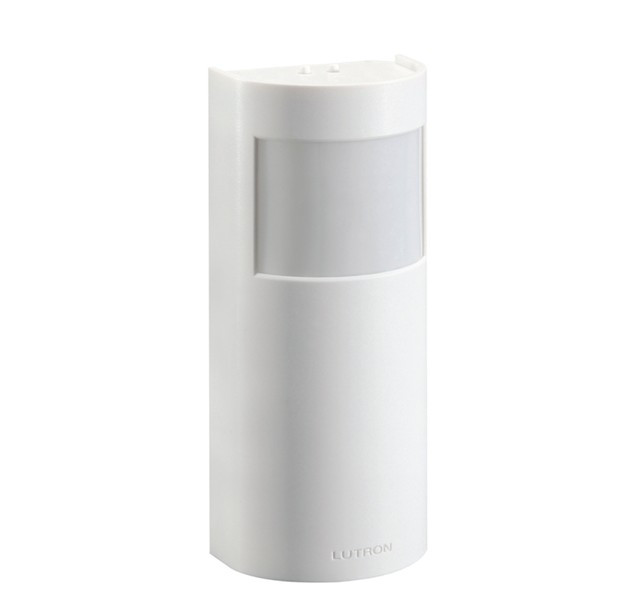

PD-OSENS-WH Lutron Caséta Motion Sensor adds hands-free lighting control to Caséta systems with reliable PIR detection, extended battery life, and simple wireless setup. Designed by Lutron, it communicates via RF to compatible dimmers/switches to turn lights on when you enter and off when you leave—no neutral, no hub required (Smart Bridge optional).
At-a-Glance
- Type: Wireless PIR occupancy/vacancy sensor (Caséta)
- Coverage: 180°; up to 1,800 ft² major motion / 1,050 ft² minor motion
- RF Range: Up to 60 ft line-of-sight; 30 ft through walls
- Power: 1 × CR123 lithium battery, 3V (10-year design)
- Timeout Options: 1 / 5 / 15 (default) / 30 minutes
- Mounting Height: 6–8 ft (eye level), wall or corner bracket included
- Environment: Indoor, 32–104 °F (0–40 °C)
Free shipping on orders over $250
Benefits
- Hands-free convenience: Lights turn on when you enter and off after timeout—ideal for hallways, laundry rooms, and bathrooms.
- Energy savings: Auto-off reduces wasted runtime and supports code-friendly vacancy operation.
- Fast install: Battery-powered, surface-mount sensor pairs wirelessly—no wiring or cutting boxes.
- Flexible coverage: Add multiple sensors to expand detection in L-shaped rooms or long corridors.
Key Features
- PIR with Lutron XCT™ fine-motion detection for reliable response.
- Dual operating modes: Auto-On/Auto-Off (occupancy) or Manual-On/Auto-Off (vacancy).
- Three sensitivity profiles: Low, Medium, High to match room activity.
- Dedicated test buttons for coverage and wireless link verification; lens illuminates during test.
- Long-life battery design: 10-year target with CR123 lithium cell.
- Included brackets: flat wall plate and corner-mount for optimal placement.
- Caséta ecosystem: Works with Caséta dimmers/switches; optional Smart Bridge for app control.
Specifications
Technical Specs
| Technology | Passive Infrared (PIR) with XCT™ fine-motion detection |
| Operating Modes | Occupancy (Auto-On/Auto-Off) or Vacancy (Manual-On/Auto-Off) |
| Timeout | 1 / 5 / 15 (default) / 30 minutes |
| Sensitivity | Low (default), Medium, High |
| Auto-On Options | Enabled/Disabled; 15-second grace period after auto-off |
Performance Specs
| Field of View | 180° |
| Coverage | Major motion up to 1,800 ft² (20 × 2 × 45 ft); Minor motion up to 1,050 ft² (15 × 2 × 35 ft) |
| RF Range | Up to 60 ft line-of-sight; 30 ft through typical walls |
Physical Specs
| Dimensions | 4.35 in H × 1.80 in W × 1.35 in D (110 × 46 × 34 mm) |
| Mounting | Wall or corner; recommended height 6–8 ft; temporary 3M™ Command™ strip included |
| Power | 1 × CR123 lithium, 3 V- (not rechargeable); 10-year design |
Compliance & Safety
| Listings | cULus, FCC, IC, IFT; Title 24-friendly vacancy operation |
| Environment | Indoor use only; 32–104 °F (0–40 °C); <90% RH, non-condensing |
Application Examples
- Hallways, laundry rooms, mud rooms, garages, basements
- Bathrooms and powder rooms (set Auto-On to Disabled if preferred)
- Bedrooms and nurseries (vacancy mode recommended)
- Open-plan areas—use multiple sensors for extended coverage
- Retrofits where adding wiring is impractical
Installation Tips
- Height matters: Mount at eye level (6–8 ft). Keep at least 4 ft from HVAC vents and heat sources.
- Mind line-of-sight: Avoid obstructions like tall furniture or glass; the sensor cannot “see” through glass.
- Pair first, then place: Use the Test button to verify coverage; the lens glows when motion is detected.
- Optimize sensitivity: Start at Low; raise to Medium/High if lights turn off while occupied.
- Bedrooms/pets: Consider disabling Auto-On to prevent nuisance turn-ons.
FAQ
Does PD-OSENS-WH need a neutral or traveler?
No. It is battery-powered and communicates wirelessly to Caséta dimmers/switches.
What’s the difference between PD-OSENS and PD-VSENS?
PD-OSENS supports Auto-On/Auto-Off (occupancy). PD-VSENS is vacancy only and meets Title 24 Manual-On/Auto-Off requirements.
How far can the sensor be from the controlled device?
Up to 60 ft line-of-sight or about 30 ft through typical interior walls.
How large of an area does it cover?
Up to ~1,800 ft² for walking (major motion) and ~1,050 ft² for fine movement (minor motion) within a 180° field of view.
What timeout settings are available?
1, 5, 15 (default), and 30 minutes.
What battery does it use and how long does it last?
One CR123 3V lithium cell with a 10-year design life.
Can I add more than one sensor to a room?
Yes. Multiple sensors can be paired to the same Caséta device to extend coverage.
Is a Smart Bridge required?
No. Pair directly to Caséta dimmers/switches. Use the Smart Bridge if you want app control and automations.
Where should I avoid mounting?
Do not mount within 4 ft of moving air (HVAC) or heat sources; keep at least 6 in from other RF devices and avoid locations blocked by furniture or glass.
