Product Description
The NYLM-2C35XBBLE4A is a 2" Ilene Series LED mini cylinder from Nora Lighting, featuring a sleek cable-mounted design and high-performance 1000 lumen output. Engineered for both performance and aesthetics, this black-finished pendant fixture is ideal for commercial and hospitality environments needing crisp, high-CRI lighting with dimming compatibility.
Key Specifications:
- Light Output: 1000lm
- Wattage: 15W
- Color Temperature: 3500K
- CRI: 90+
- Voltage: 120V (LE4A configuration)
- Finish: Black
- Mounting: Cable Mount with 8' adjustable aircraft cable
- Dimming: Triac, ELV, or 0-10V
Free shipping on orders over $250
Why Choose the NYLM-2C35XBBLE4A?
- Compact 2" form factor ideal for modern commercial interiors
- Field-changeable optics allow customization for beam spread
- High CRI and soft 3500K CCT delivers warm, clear visual comfort
- ENERGY STAR® and Title 24 JA8-2022 compliant for energy efficiency
Key Features
- Mounting Style: 8' adjustable aircraft cable included for cable mount
- Beam Options: Includes spot, narrow flood, and flood optics (flood pre-installed)
- Construction: Extruded aluminum with vented top for thermal management
- Reflector: Deep-set design for visual comfort with matched black finish
- Dimming: Supports Triac, ELV, or 0-10V dimming systems
Specifications
Technical Specs
| Input Voltage | 120V |
| Wattage | 15W |
| Dimming | Triac, ELV, or 0-10V |
Performance Specs
| Lumen Output | 1000lm |
| Color Temperature | 3500K |
| CRI | 90+ |
| Optics | Spot, Narrow Flood, Flood (field-changeable) |
Physical Specs
| Finish | Black |
| Mounting | 8' Field-adjustable aircraft cable |
| Material | Extruded aluminum cylinder and vented aluminum top |
Application Examples
- Hospitality environments like lobbies, restaurants, and reception areas
- Retail store displays and aisle lighting
- Art galleries and showrooms needing directional spotlighting
- Modern office interiors with high ceilings or track grid systems
Installation Tips
- Ensure canopy is properly mounted over compatible junction box
- Adjust aircraft cable to the desired drop length before final wiring
- Select preferred optic (spot, narrow flood, or flood) prior to power-up
- Confirm dimmer compatibility with selected control system
Frequently Asked Questions
Q: Can I use this fixture with 277V systems?
A: Yes, the LE4A version supports 120-277V input, though this specific model is configured for 120V.
Q: Is this suitable for damp locations?
A: Yes, it is cULus Listed for damp locations.
Q: Does it come with the aircraft cable?
A: Yes, an 8-foot field-adjustable aircraft cable is included.
Q: What dimming systems are supported?
A: It supports Triac, ELV, and 0-10V dimming, depending on the wiring setup.
Q: Are beam angles customizable?
A: Yes, spot, narrow flood, and flood optics are included and field-changeable.
Q: What are some accessory options?

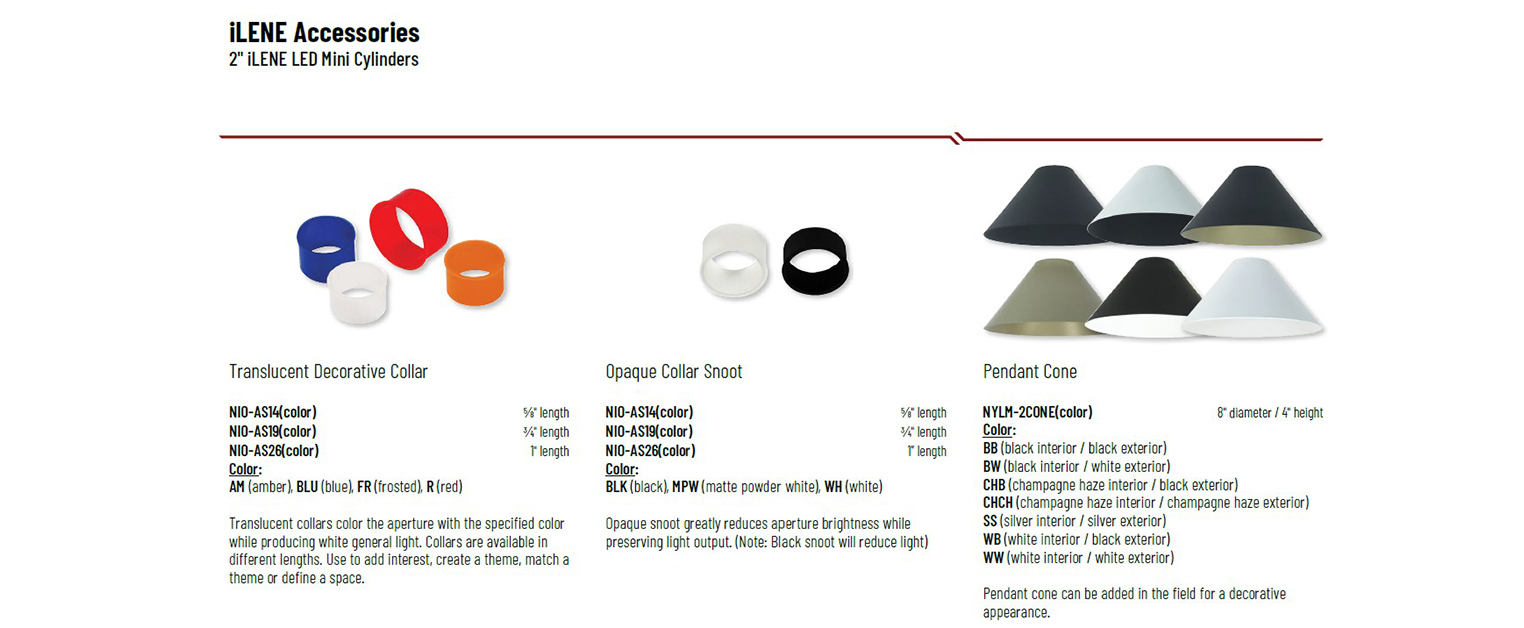

A: Decorative translucent collars, opaque snoots, and pendant cones in multiple finishes are available.
Q: Is it ENERGY STAR® certified?
A: Yes, this fixture is ENERGY STAR certified.
Q: What is the warranty?
A: Nora Lighting provides a 5-year limited warranty.
