Product Description

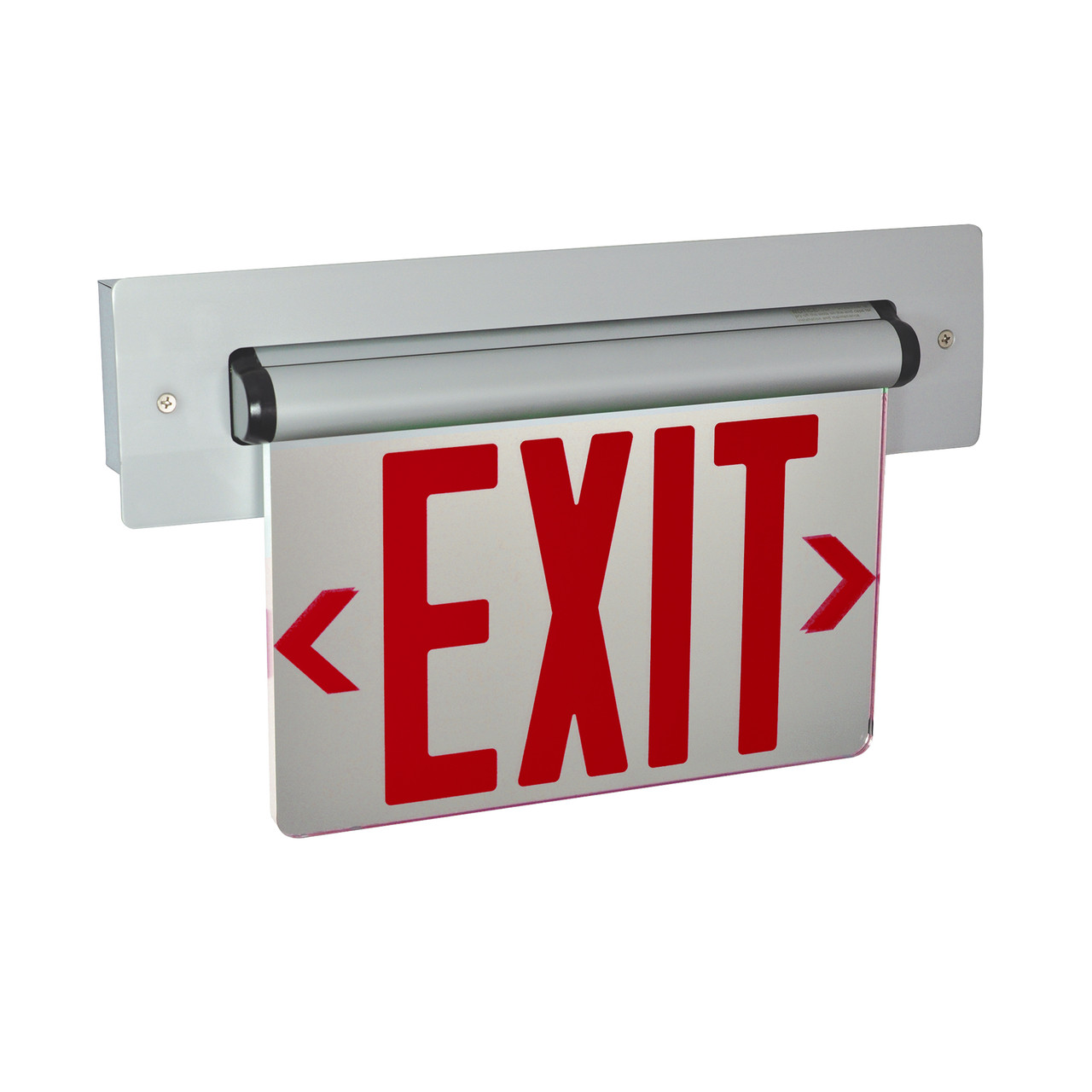

NX-815-LEDRMA Recessed Adjustable LED Edge-lit Exit Sign Battery Backup 6" from Nora Lighting delivers a clean, architectural edge-lit appearance in a true recessed installation where the wiring compartment is concealed inside a galvanized steel housing. Designed for high-end interiors like museums, galleries, and office lobbies, this adjustable face can be set from 0° to 90° for wall, ceiling, or sloped applications.
At-a-Glance
- Operation: Battery Backup (90 minutes emergency illumination)
- Input Voltage: Dual 120/277VAC
- Wattage: 3W normal / 5W emergency operation
- Face: Single face, mirrored acrylic
- Letter Color: Red, 6" letters (chevrons included)
- Housing: Galvanized steel recessed housing with die-cast cover plate
- Listings: UL Listed; certified to California Title 20 energy efficiency standards
- Warranty: 5-Year Limited Warranty
Free shipping on orders over $250
Product Benefits
- Clean recessed look keeps the wiring compartment concealed for premium architectural spaces.
- Field-adjustable face (0° to 90°) supports wall, ceiling, and sloped mounting conditions.
- Reliable emergency performance with replaceable NiCad battery providing 90 minutes of illumination.
- Long-life LED source engineered for extended service with consistent illumination.
Key Features
- Edge-lit acrylic sign face with rounded, finished edges for a refined appearance.
- Single or double face options available across the series (this configuration is single face mirrored acrylic).
- Included chevrons (adhesive-mounted) for directional egress indication.
- Charge / ready indicator and test button with automatic reset for simplified code checks.
- Protection features include isolated surge / short circuit protection and deep-discharge disconnect.
- Recessed mounting hardware included with adjustable bar hangers and T-bar notch for suspended ceilings.
Specifications
Technical Specs
| Voltage | Dual 120/277VAC (0.038A / 0.017A) |
| LED Wattage | 3W normal / 5W emergency operation |
| Emergency Mode | Battery Backup (replaceable NiCad) provides 90 minutes |
| Testing | Charge/ready indicator light with test button and automatic reset |
| Circuit Protection | Isolated surge/short circuit protection; deep-discharge disconnect |
| Life Expectancy | 25 years with no change in illumination level |
Physical Specs
| Housing | Galvanized steel recessed housing with die-cast cover plate |
| Face Material | Acrylic, edge-lit; rounded and finished edge |
| Face Configuration | Single face / mirrored acrylic |
| Lettering | 6" red letters; chevrons included |
| Adjustment | Field adjustable 0° to 90° |
Mounting & Installation Specs
| Mounting Method | Recessed installation with wiring compartment concealed inside housing |
| Included Hardware | Two adjustable bar hangers (13-3/4" to 24-1/2") with captive nails; T-bar notch for suspended ceilings |

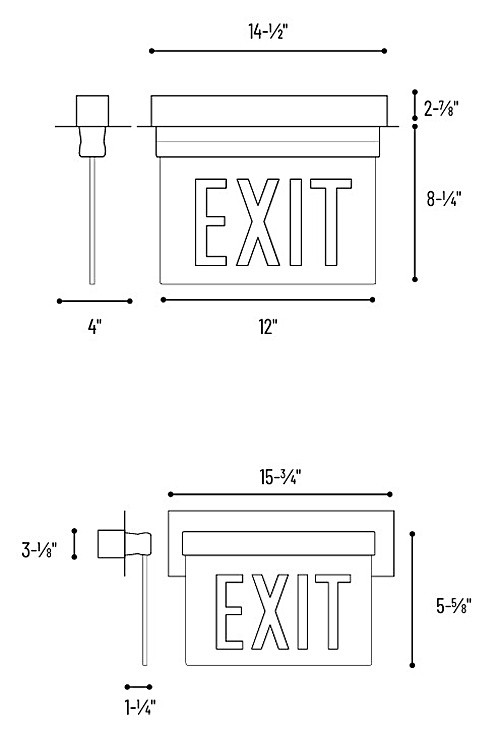

| Typical Dimensions (from spec diagram) | Approx. 12" face width; recessed housing depth approx. 2-7/8"; additional housing/plate dimensions shown on spec sheet |
Applications
- Museums and galleries requiring a minimal, architectural exit sign appearance
- Office building lobbies and Class A commercial interiors
- Corridors, egress pathways, and stairwell approaches
- Wall, ceiling, or sloped surfaces where an adjustable exit face is needed
- Suspended ceilings using the included T-bar notch feature
Installation Tips
- Confirm power type (dual 120/277VAC) and follow all applicable codes (NEC/NFPA and local requirements).
- Use the adjustable bar hangers to align the recessed housing before finishing the ceiling surface.
- Set the face angle in the field (0° to 90°) after mounting to match the viewing direction.
- Test emergency operation using the test button and verify the charge/ready indicator after installation.
- Plan for maintenance access so the replaceable NiCad battery can be serviced when needed.
FAQ
Is this exit sign recessed or surface mounted?
This model is designed for recessed installation, with the wiring compartment concealed within a galvanized steel housing for a clean architectural look.
How long does the battery backup run during an outage?
The replaceable NiCad battery provides 90 minutes of illumination during emergency operation.
What voltages does it support?
It supports dual 120/277VAC input, making it suitable for common commercial power systems.
Can I adjust the face direction after installation?
Yes. The acrylic face is field adjustable from 0° to 90° for wall, ceiling, or sloped applications.
Does it include directional chevrons?
Yes. Adhesive-mounted chevrons are included and can be applied as needed for the egress direction.
Is it available in green letters instead of red?
Yes. The series is available with either red or green lettering, depending on the selected configuration.
What material is the sign face?
The sign uses an edge-lit acrylic panel with a rounded, finished edge for an attractive appearance.
Is it code compliant and listed?
It is UL Listed and references compliance to NEC and NFPA requirements, along with state and municipal standards, and is certified to California Title 20 energy efficiency standards.
