Product Description
NX-810-LEDGCA Surface Adjustable LED Edge-lit Exit Sign AC Only 6" Green Letters by Nora Lighting delivers a sleek, low-profile emergency signage solution perfect for architectural and commercial interiors. With green 6" lettering embedded in clear acrylic and an extruded aluminum housing, this edge-lit sign offers an elegant yet code-compliant EXIT solution for museums, lobbies, office buildings, and more.

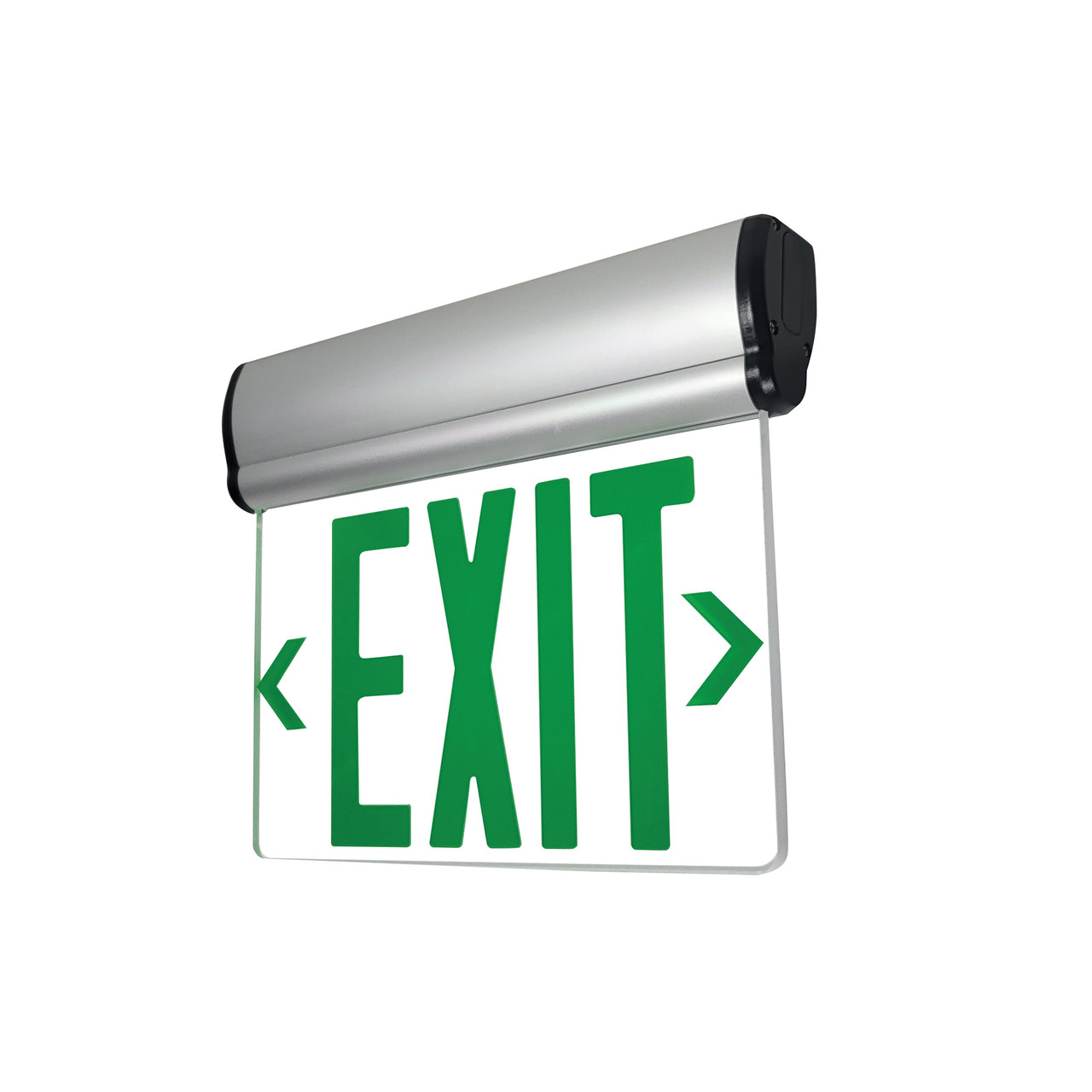

NX-810-LEDGCA Surface Adjustable LED Edge-lit Exit Sign
Brand: Nora Lighting
Operation: AC Only
Letter Color: Green
Face Style: Single Face / Clear Acrylic
Housing Finish: Aluminum
Voltage: Dual 120V/277V
Power Consumption: 3W
Mounting: Adjustable for wall, ceiling, or sloped ceiling applications
Compliance: UL Listed, Title 20, NFPA, NEC, Damp Location
Free shipping on orders over $250
Product Benefits
- Architectural-grade design complements modern interiors
- Adjustable face for surface mounting on ceilings or walls (0º to 90º)
- Edge-lit LED technology offers consistent, energy-efficient visibility
- Includes stick-on chevrons for field-directional indication
Key Features
- Extruded aluminum housing with precision-cut acrylic face
- 6" green EXIT lettering embedded in 0.40 acrylic for NFPA compliance
- Field-adjustable face allows for wall, ceiling, or sloped mounting angles

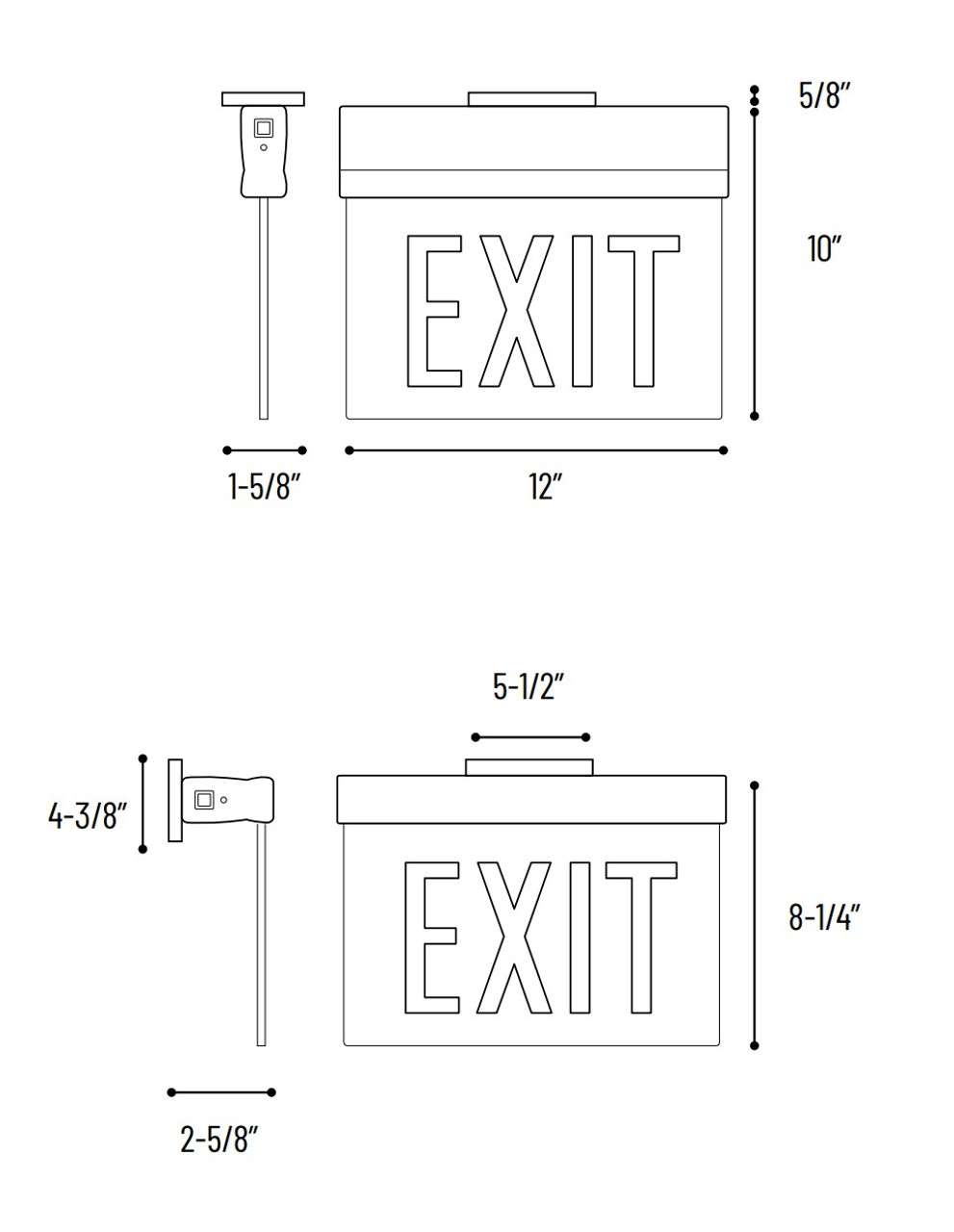

- Low profile design with only 5/8" thickness for minimal visual impact
- Dual 120/277V input with low 3W power consumption
Technical Specifications
| Technical Specs | |
|---|---|
| Manufacturer | Nora Lighting |
| Model | NX-810-LEDGCA |
| Housing Material | Extruded Aluminum |
| Face Type | Single Face / Clear Acrylic |
| Letter Color | Green |
| Letter Height | 6" high, 3/4" stroke |
| Electrical Specs | |
|---|---|
| Operation Mode | AC Only |
| Input Voltage | 120V / 277V Dual |
| Wattage | 3W (normal) |
| LED Life Expectancy | 25 Years |
| Compliance & Safety | |
|---|---|
| Certifications | UL Listed, NFPA, NEC, State & Municipal |
| Title 20 Compliant | Yes |
| Location Rating | Damp Location |
| Warranty | 5-Year Limited Warranty |
Application Examples
- Office building corridors and lobbies
- Museums and galleries requiring modern emergency signage
- Retail and hospitality exits
- Hallways and entry points in multi-family buildings
Installation Tips
- Includes universal junction box bracket and all mounting hardware
- Bracket allows 0º to 90º adjustment for surface ceiling, wall, or sloped mounting
- Apply reflective chevrons to rear of panel for directional arrows
- Do not install in wet locations—rated for damp use only
Frequently Asked Questions
Q: What does "AC Only" mean?
A: AC Only models require constant power and do not include battery backup. Use with building emergency circuits for code compliance.
Q: Can this sign be mounted to a sloped ceiling?
A: Yes, the face is field-adjustable from 0º to 90º for sloped or vertical surfaces:contentReference[oaicite:0]{index=0}.
Q: Are chevron arrows included?
A: Yes, stick-on reflective chevrons are included for field application to the rear of the panel.
Q: How long does the LED light last?
A: The edge-lit LED has a 25-year life expectancy with no change in brightness over time.
Q: Is this fixture compliant with Title 20?
A: Yes, it is certified to meet California Title 20 energy efficiency standards.
