Product Description

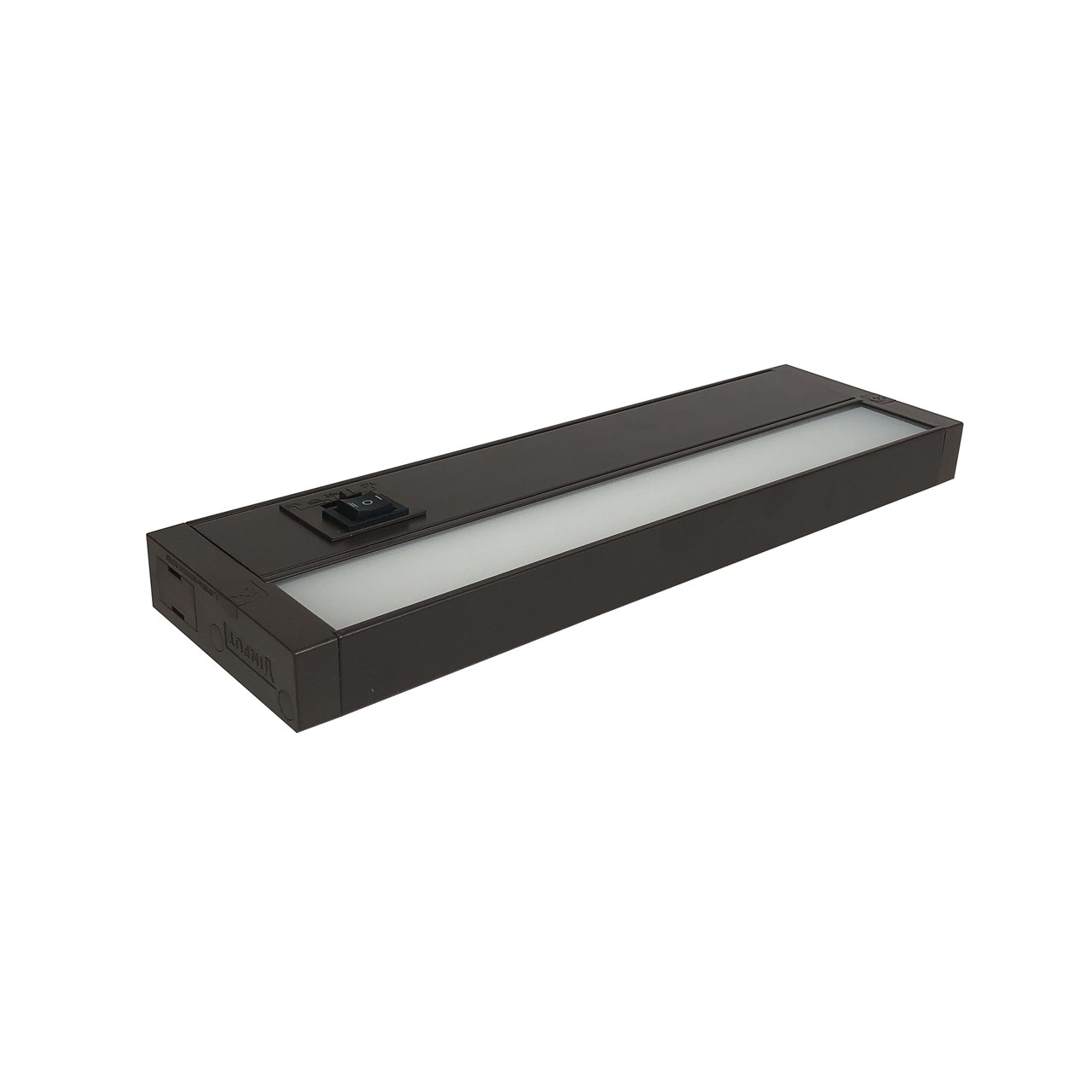

NUDTW-8822/23345BZ 22" Ledur Tunable White LED Undercabinet delivers versatile task and accent lighting with selectable color temperature (2700K–5000K) and dual lumen output settings. Featuring an edge-lit design, this undercabinet luminaire ensures smooth, uniform illumination without visible diode imaging, ideal for kitchens, offices, and retail displays.
Product Summary
- NUDTW-8822/23345BZ 22" Ledur Tunable White LED Undercabinet
- Lumen Output: 275lm or 475lm per foot (field selectable)
- Wattage: 11W
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90+
- Finish: Bronze
- Listings: ENERGY STAR, Title 24 JA8-2019, cULus for Dry Location
Free shipping on orders over $250
Benefits
- Ten fixtures in one: 5 selectable CCTs × 2 lumen outputs
- Edge-lit design: Eliminates diode spotting on reflective surfaces
- Versatile applications: Perfect for kitchens, offices, and display lighting
- Energy-efficient: Meets California Title 24 JA8 efficacy requirements
Key Features
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- Dual lumen settings: 275lm or 475lm per foot
- Available lengths: 11", 18", 22", 32", 42"
- Integral dimmable driver: Works with Triac or ELV dimmers
- Built-in rocker switch for On/Off control
- Linkable up to 400W of fixtures
Enhanced Specifications
| Technical Specs | |
|---|---|
| Model | NUDTW-8822/23345BZ |
| Lumen Output | 275lm or 475lm per foot |
| Wattage | 11W |
| Voltage | 120V |
| Color Temperature | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ |
| Operating Temp | 0˚C to 45˚C |
| Dimming | Triac or ELV |
Application Examples
- Residential kitchen and task lighting
- Retail display shelves and counters
- Office and workspace undercabinet lighting
- Hospitality bars and reception areas
Installation Tips
- Use included captive screws for quick, secure mounting
- Rear and top knockouts support flexible wiring options
- Link multiple units up to 400W for continuous runs
- Adjust lumen and CCT settings before finalizing installation
FAQ
Q: Can I adjust the color temperature after installation?
A: Yes, the built-in 5-position switch allows for on-site CCT selection (2700K–5000K).
Q: Does the fixture include a dimmable driver?
A: Yes, it has an integral driver compatible with Triac or ELV dimmers.
Q: What lengths are available in the Ledur series?
A: 11", 18", 22", 32", and 42".
Q: What is included with the fixture?
A: Mounting hardware, ½" die-cast metallic cable clamp, end-to-end connector, and integrated switches.
Q: Can it be linked with other fixtures?
A: Yes, it is linkable up to 400W total load.
Q: What finishes are available?
A: Bronze (BZ) and White (WH).
