Product Description

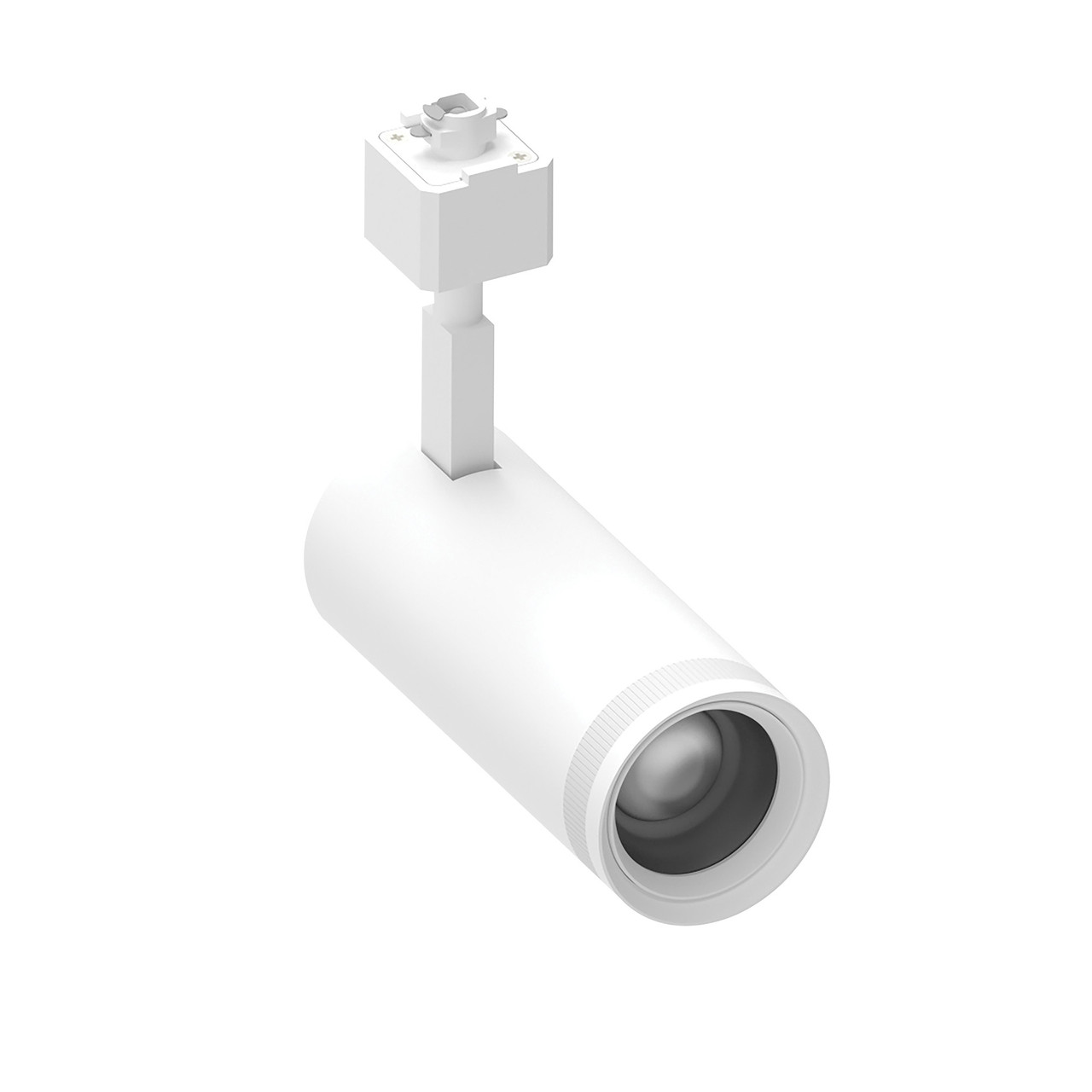

NTZ-L1TWW Z-Track Head with Selectable CCT, Zoomable Optics – 1550lm White H-Style from Nora Lighting is an economical LED cylinder track head designed for versatile accent and display lighting. Featuring five selectable color temperatures and a field-adjustable beam spread controlled by a rotating front bezel, this fixture is ideal for applications where lighting needs may evolve after installation.
Quick Specs
- Output: Up to 1550 lm
- Wattage: 20W
- Voltage: 120V
- CCT: Selectable 2700K / 3000K / 3500K / 4000K / 5000K (Preset: 3000K)
- CRI: 90+ CRI
- Beam: Field adjustable 20° (Narrow Spot) to 50° (Narrow Flood) (Preset: 50°)
- Dimming: Triac or ELV
- Track Adapter: H-Style
- Rating: cETLus Damp Location
Free shipping on orders over $250
Product Benefits
- Flexible color control: Five selectable CCT options allow quick adjustment to suit finishes, merchandise, or ambient conditions.
- On-site beam tuning: Zoomable optics let you fine-tune light distribution without tools or accessories.
- Precise aiming: 360° horizontal and 90° vertical adjustment supports accurate accent placement.
- Durable construction: Die-cast aluminum housing ensures long life and consistent performance.
Key Features
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- High output LED: Up to 1550 lm from a 20W source
- Zoomable optics: 20° narrow spot to 50° narrow flood
- High color quality: 90+ CRI
- Dimming compatibility: Works with Triac or ELV dimmers
- Track flexibility: One or two circuit track capable
- Finish: White with H-Style adapter
Specifications
Technical
| Input Voltage | 120V |
| Wattage | 20W |
| Dimming | Triac or ELV |
| Lifetime | 50,000 hours @ L70 |
Performance
| Lumen Output | Up to 1550 lm |
| Color Temperature | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ CRI |
| Beam Spread | 20° to 50° adjustable |
Physical
| Housing | Die-cast aluminum |
| Finish | White |
| Adjustability | 360° horizontal / 90° vertical |
| Dimensions | 6-1/4" body / 9-1/2" overall / 2-9/16" diameter |
| Listings | cETLus Damp Location; FCC compliant; California Title 24 JA8-2022 |
Applications
- Retail lighting: Accent shelving, displays, and feature walls.
- Hospitality spaces: Highlight artwork, bars, and architectural details.
- Galleries: Adjustable beam control supports rotating exhibits.
- Residential track systems: Kitchens, living spaces, and hallways.
Installation Tips
- Select CCT first: Use the 5-position sliding switch before final aiming.
- Adjust beam spread: Rotate the front bezel to achieve the desired coverage.
- Confirm dimmer compatibility: Use Triac or ELV dimmers for optimal results.
- Verify track type: This model includes an H-Style adapter.
FAQ
What color temperatures are available?
The fixture includes selectable 2700K, 3000K, 3500K, 4000K, and 5000K options, with a factory preset of 3000K.
How is the beam adjusted?
The beam spread is adjusted by rotating the front bezel, allowing changes from 20° to 50° without tools.
Is this track head dimmable?
Yes. It is compatible with Triac and ELV dimmers.
What track system does this version fit?
This specific model includes an H-Style track adapter.
Is it rated for damp locations?
Yes. It is cETLus listed for damp locations.
Does it meet California energy requirements?
Yes. It is certified to California Title 24 JA8-2022 high efficacy standards.
