Product Description

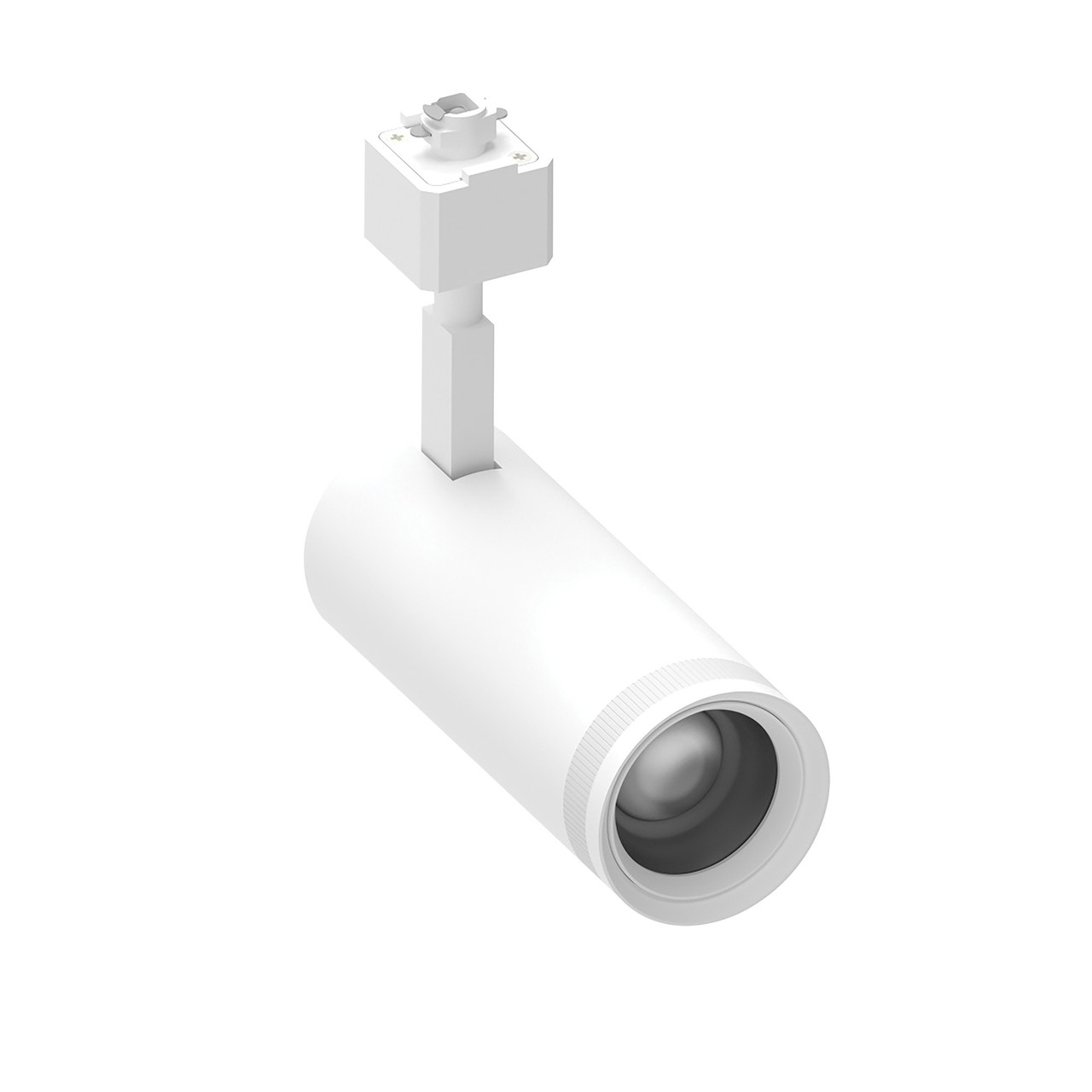

NTZ-L1TWW/L Z-Track Head with Selectable CCT, Zoomable Optics – 1550lm White L-Style from Nora Lighting is an economical LED cylinder track head designed for adaptable accent and display lighting. Featuring five selectable color temperatures and a tool-free, adjustable beam spread via a rotating front bezel, this fixture is ideal for installations where lighting needs may change over time.
Quick Specs
- Output: Up to 1550 lm
- Wattage: 20W
- Voltage: 120V
- CCT: Selectable 2700K / 3000K / 3500K / 4000K / 5000K (Preset: 3000K)
- CRI: 90+ CRI
- Beam: Field adjustable 20° (Narrow Spot) to 50° (Narrow Flood) (Preset: 50°)
- Dimming: Triac or ELV
- Track Adapter: L-Style
- Rating: cETLus Damp Location
Free shipping on orders over $250
Product Benefits
- Flexible color selection: Five selectable CCT options allow easy field adjustment to match finishes and ambient light.
- Tool-free beam control: Zoomable optics let you fine-tune from focused accents to wider coverage.
- Precision aiming: 360° horizontal and 90° vertical adjustability supports accurate light placement.
- Reliable construction: Die-cast aluminum housing ensures durability and thermal performance.
Key Features
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- High output LED: Up to 1550 lm from a 20W source
- Zoomable optics: 20° narrow spot to 50° narrow flood
- High color quality: 90+ CRI
- Dimming compatibility: Works with Triac or ELV dimmers
- Track capability: One or two circuit track capable
- Finish: White with L-Style adapter
Specifications
Technical
| Input Voltage | 120V |
| Wattage | 20W |
| Dimming | Triac or ELV |
| Lifetime | 50,000 hours @ L70 |
Performance
| Lumen Output | Up to 1550 lm |
| Color Temperature | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ CRI |
| Beam Spread | 20° to 50° adjustable |
Physical
| Housing | Die-cast aluminum |
| Finish | White |
| Adjustability | 360° horizontal / 90° vertical |

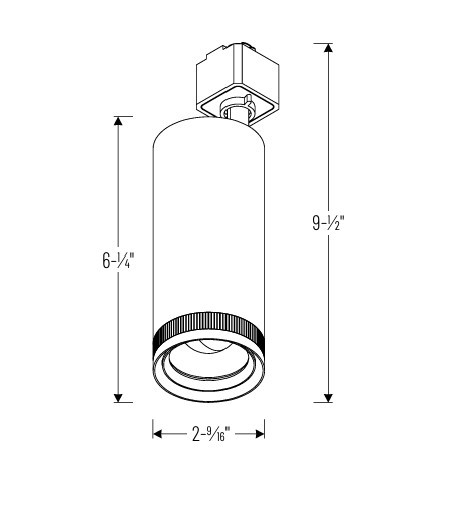

| Dimensions | 6-1/4" body / 9-1/2" overall / 2-9/16" diameter |
| Listings | cETLus Damp Location; FCC compliant; California Title 24 JA8-2022 |
Applications
- Retail environments: Accent shelving, displays, and feature walls.
- Hospitality spaces: Highlight artwork, bars, and architectural details.
- Galleries & exhibits: Adjustable beam control supports changing layouts.
- Residential track lighting: Kitchens, living areas, and hallways.
Installation Tips
- Select CCT before aiming: Set the 5-position sliding switch prior to final adjustment.
- Adjust beam spread: Rotate the front bezel to achieve desired coverage.
- Confirm dimmer compatibility: Use Triac or ELV dimmers for best performance.
- Verify track type: This model includes an L-Style adapter.
FAQ
What color temperatures are available?
The fixture includes selectable 2700K, 3000K, 3500K, 4000K, and 5000K options, with a factory preset of 3000K.
How is the beam spread adjusted?
The beam spread is adjusted by rotating the front bezel, allowing changes from 20° to 50° without tools.
Is this track head dimmable?
Yes. It is compatible with Triac and ELV dimmers.
What track system does this version fit?
This specific model includes an L-Style track adapter.
Is it suitable for damp locations?
Yes. It is cETLus listed for damp locations.
Does it meet California energy requirements?
Yes. It is certified to California Title 24 JA8-2022 high efficacy standards.
