Product Description
NTZ-L1TWW/J Z-Track Head with Selectable CCT, Zoomable Optics – 1550lm White J-Style from Nora Lighting is an economical LED cylinder track head engineered for flexible accent and display lighting. With five selectable color temperatures and a tool-free, adjustable beam spread controlled by a rotating front bezel, this fixture is ideal for spaces where lighting requirements may evolve after installation.
Quick Specs
- Output: Up to 1550 lm
- Wattage: 20W
- Voltage: 120V
- CCT: Selectable 2700K / 3000K / 3500K / 4000K / 5000K (Preset: 3000K)
- CRI: 90+ CRI
- Beam: Field adjustable 20° (Narrow Spot) to 50° (Narrow Flood) (Preset: 50°)
- Dimming: Triac or ELV
- Track Adapter: J-Style
- Rating: cETLus Damp Location
Free shipping on orders over $250
Product Benefits
- Flexible color control: Five selectable CCT options allow quick adjustment to complement finishes, merchandise, or ambient light.
- Tool-free beam tuning: Rotate the front bezel to dial in focused accents or broader coverage without accessories.
- Precise aiming: 360° horizontal and 90° vertical adjustability supports accurate targeting of features and displays.
- Durable construction: Die-cast aluminum housing with damp-location listing ensures long-term performance.
Key Features
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- High output LED: Up to 1550 lm from a 20W source
- Zoomable optics: 20° narrow spot to 50° narrow flood
- High color quality: 90+ CRI
- Dimming compatibility: Works with Triac or ELV dimmers
- Track flexibility: One or two circuit track capable
- Finish: White with J-Style adapter
Specifications
Technical
| Input Voltage | 120V |
| Wattage | 20W |
| Dimming | Triac or ELV |
| Lifetime | 50,000 hours @ L70 |
Performance
| Lumen Output | Up to 1550 lm |
| Color Temperature | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ CRI |
| Beam Spread | 20° to 50° adjustable |
Physical
| Housing | Die-cast aluminum |
| Finish | White |
| Adjustability | 360° horizontal / 90° vertical |

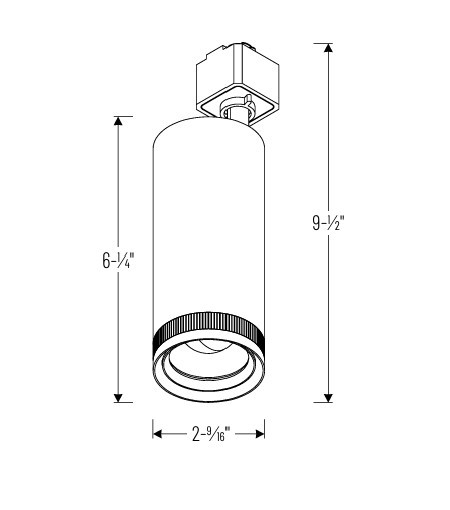

| Dimensions | 6-1/4" body / 9-1/2" overall / 2-9/16" diameter |
| Listings | cETLus Damp Location; FCC compliant; California Title 24 JA8-2022 |
Applications
- Retail lighting: Accent shelving, displays, and feature walls.
- Hospitality spaces: Highlight artwork, bars, and architectural elements.
- Galleries & exhibits: Adjustable beam control supports changing layouts.
- Residential track systems: Kitchens, living spaces, and hallways.
Installation Tips
- Select CCT first: Set the 5-position sliding switch before final aiming.
- Adjust beam spread: Rotate the front bezel to achieve desired coverage.
- Confirm dimmer compatibility: Use Triac or ELV dimmers for optimal performance.
- Verify track type: This model includes a J-Style adapter.
FAQ
What color temperatures are available?
The fixture includes selectable 2700K, 3000K, 3500K, 4000K, and 5000K options, with a factory preset of 3000K.
How is the beam spread adjusted?
The beam spread is adjusted by rotating the front bezel, allowing changes from 20° to 50° without tools.
Is this track head dimmable?
Yes. It is compatible with Triac and ELV dimmers.
What track system does this version fit?
This specific model includes a J-Style track adapter.
Is it suitable for damp locations?
Yes. It is cETLus listed for damp locations.
Does it meet California energy requirements?
Yes. It is certified to the high efficacy requirements of California Title 24 JA8-2022.
