Product Description

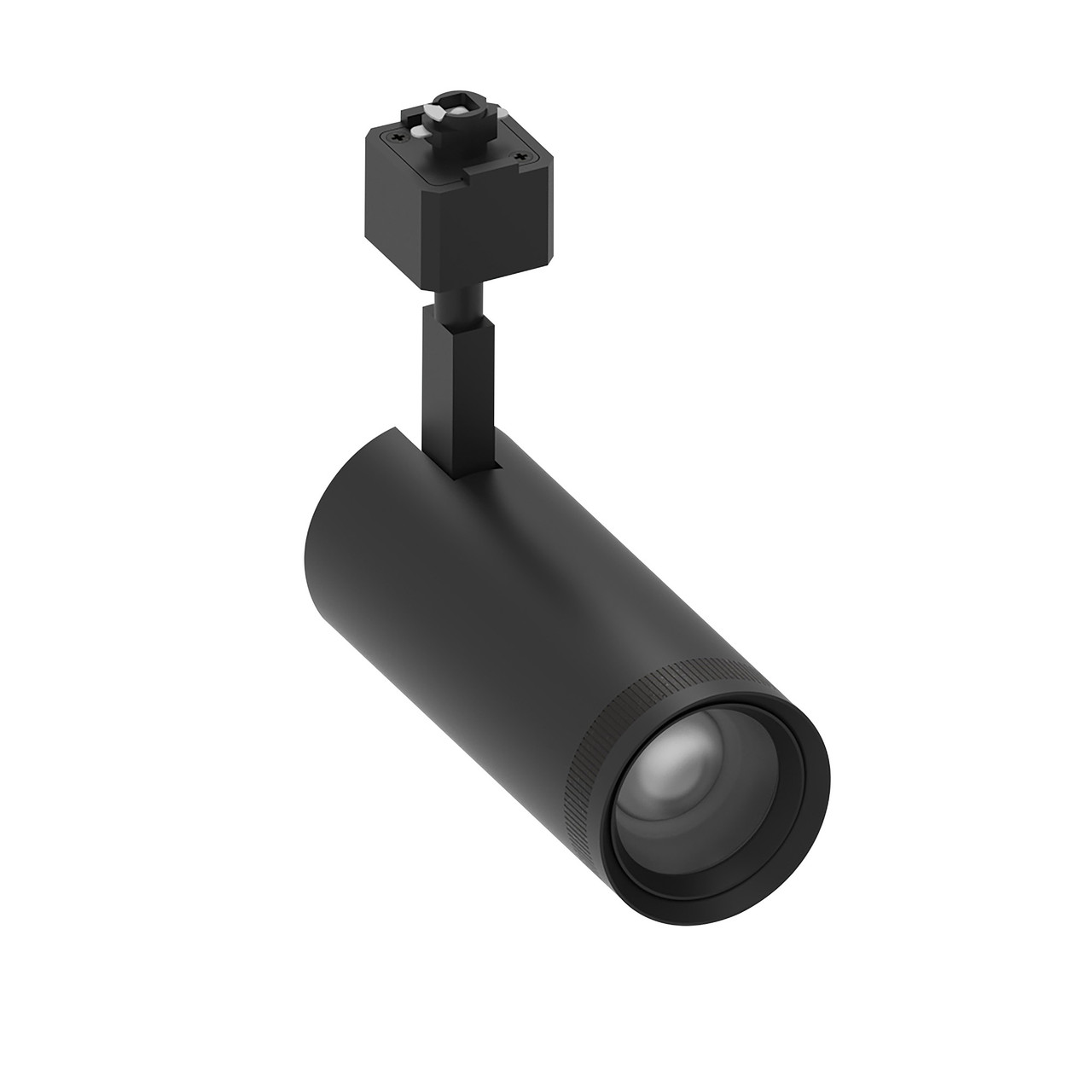

NTZ-L1TWB Z-Track Head with Selectable CCT, Zoomable Optics – 1550lm Black H-Style from Nora Lighting is an economical LED cylinder track head designed to deliver maximum flexibility in accent and display lighting. Featuring five selectable color temperatures and a field-adjustable beam spread controlled by a rotating front bezel, this fixture is ideal for projects where lighting requirements may change or are not fully defined at the time of specification.
Quick Specs
- Output: Up to 1550 lm
- Wattage: 20W
- Voltage: 120V
- CCT: Selectable 2700K / 3000K / 3500K / 4000K / 5000K (Preset: 3000K)
- CRI: 90+ CRI
- Beam: Field adjustable 20° (Narrow Spot) to 50° (Narrow Flood) (Preset: 50°)
- Dimming: Triac or ELV
- Track Adapter: H-Style
- Rating: cETLus Damp Location
Free shipping on orders over $250
Product Benefits
- Adaptable lighting design: Five selectable color temperatures allow quick adjustment to match finishes, displays, or ambient conditions.
- On-site beam control: Adjustable optics let you dial in focused accent lighting or broader coverage without tools.
- Precision aiming: 360° horizontal and 90° vertical adjustment supports accurate targeting of architectural features and merchandise.
- Commercial-ready construction: Die-cast aluminum housing and damp-location listing support long-term performance.
Key Features
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- High output LED: Up to 1550 lm from a 20W source
- Zoomable optics: 20° narrow spot to 50° narrow flood
- High color quality: 90+ CRI
- Dimming compatibility: Works with Triac or ELV dimmers
- Construction: Die-cast aluminum housing for thermal performance
- Track flexibility: One or two circuit track capable
- Finish: Black with H-Style adapter
Specifications
Technical
| Input Voltage | 120V |
| Wattage | 20W |
| Dimming | Triac or ELV |
| Lifetime | 50,000 hours @ L70 |
Performance
| Lumen Output | Up to 1550 lm |
| Color Temperature | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ CRI |
| Beam Spread | 20° to 50° adjustable |
Physical
| Housing | Die-cast aluminum |
| Finish | Black |
| Adjustability | 360° horizontal / 90° vertical |
| Dimensions | 6-1/4" body / 9-1/2" overall / 2-9/16" diameter |
| Listings | cETLus Damp Location; FCC compliant; California Title 24 JA8-2022 |
Applications
- Retail environments: Accent merchandise, shelving, and feature walls.
- Hospitality spaces: Highlight artwork, bars, and architectural details.
- Galleries & exhibits: Adjustable beam control supports changing displays.
- Residential track lighting: Kitchens, living areas, and hallways.
Installation Tips
- Select CCT before final aiming: Use the 5-position sliding switch.
- Adjust beam spread: Rotate the front bezel to achieve desired coverage.
- Confirm dimmer compatibility: Use Triac or ELV dimmers for best performance.
- Verify track type: This model ships with an H-Style adapter.
FAQ
What color temperatures are available?
The fixture offers selectable 2700K, 3000K, 3500K, 4000K, and 5000K, with a factory preset of 3000K.
How is the beam spread adjusted?
The beam spread is adjusted by rotating the front bezel, allowing changes from 20° to 50° without tools.
Is this track head dimmable?
Yes. It is compatible with Triac and ELV dimmers.
What track system does this version support?
This specific model includes an H-Style track adapter.
Is it suitable for damp locations?
Yes. It is cETLus listed for damp locations.
Does it meet California energy codes?
Yes. It is certified to the high efficacy requirements of California Title 24 JA8-2022.
