Product Description
NTZ-L1TWB/J Z-Track Head with Selectable CCT, Zoomable Optics – 1550lm Black J-Style from Nora Lighting is an economical LED cylinder track head engineered for flexible accent and display lighting. With five selectable color temperatures and a field-adjustable beam spread controlled by a rotating front bezel, this fixture is ideal for projects where lighting needs may change over time.
Quick Specs
- Output: Up to 1550 lm
- Wattage: 20W
- Voltage: 120V
- CCT: Selectable 2700K / 3000K / 3500K / 4000K / 5000K (Preset: 3000K)
- CRI: 90+ CRI
- Beam: Field adjustable 20° (Narrow Spot) to 50° (Narrow Flood) (Preset: 50°)
- Dimming: Triac or ELV
- Track Adapter: J-Style
- Rating: cETLus Damp Location
Free shipping on orders over $250
Product Benefits
- Design flexibility: Five selectable color temperatures allow fast adjustments to match finishes, displays, or ambient light.
- Tool-free beam control: Rotate the front bezel to fine-tune from focused accent lighting to broader coverage.
- Precise aiming: 360° horizontal and 90° vertical adjustability supports accurate targeting of features and merchandise.
- Commercial-grade build: Die-cast aluminum housing with damp-location listing supports long-term performance.
Key Features
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- High output LED: Up to 1550 lm from a 20W source
- Zoomable optics: 20° narrow spot to 50° narrow flood
- High color quality: 90+ CRI
- Dimming compatibility: Works with Triac or ELV dimmers
- Track flexibility: One or two circuit track capable
- Finish: Black with J-Style adapter
Specifications
Technical
| Input Voltage | 120V |
| Wattage | 20W |
| Dimming | Triac or ELV |
| Lifetime | 50,000 hours @ L70 |
Performance
| Lumen Output | Up to 1550 lm |
| Color Temperature | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ CRI |
| Beam Spread | 20° to 50° adjustable |
Physical
| Housing | Die-cast aluminum |
| Finish | Black |
| Adjustability | 360° horizontal / 90° vertical |

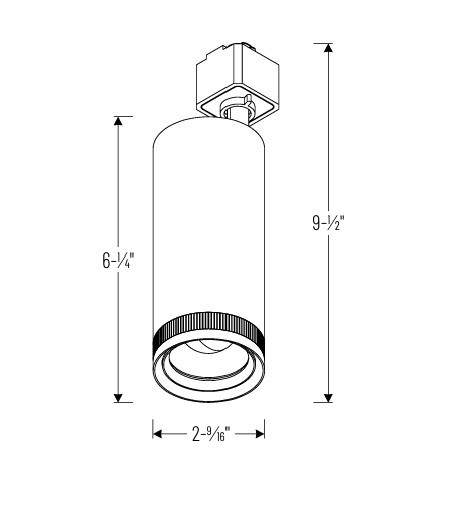

| Dimensions | 6-1/4" body / 9-1/2" overall / 2-9/16" diameter |
| Listings | cETLus Damp Location; FCC compliant; California Title 24 JA8-2022 |
Applications
- Retail environments: Highlight merchandise, shelving, and feature walls.
- Hospitality spaces: Accent artwork, bars, and architectural elements.
- Galleries & exhibits: Adjustable beam control supports changing layouts.
- Residential track lighting: Kitchens, living areas, and hallways.
Installation Tips
- Select CCT before aiming: Set the 5-position sliding switch prior to final adjustment.
- Dial in the beam: Rotate the front bezel to achieve the desired spread.
- Confirm dimmer type: Use Triac or ELV dimmers for best results.
- Verify track compatibility: This model includes a J-Style adapter.
FAQ
What color temperatures are available?
The fixture includes selectable 2700K, 3000K, 3500K, 4000K, and 5000K options, with a factory preset of 3000K.
How is the beam spread adjusted?
The beam spread is adjusted by rotating the front bezel, allowing changes from 20° to 50° without tools.
Is this track head dimmable?
Yes. It is compatible with Triac and ELV dimmers.
What track system does this version fit?
This specific model includes a J-Style track adapter.
Is it rated for damp locations?
Yes. It is cETLus listed for damp locations.
Does it meet California energy requirements?
Yes. It is certified to California Title 24 JA8-2022 high efficacy standards.
