Product Description

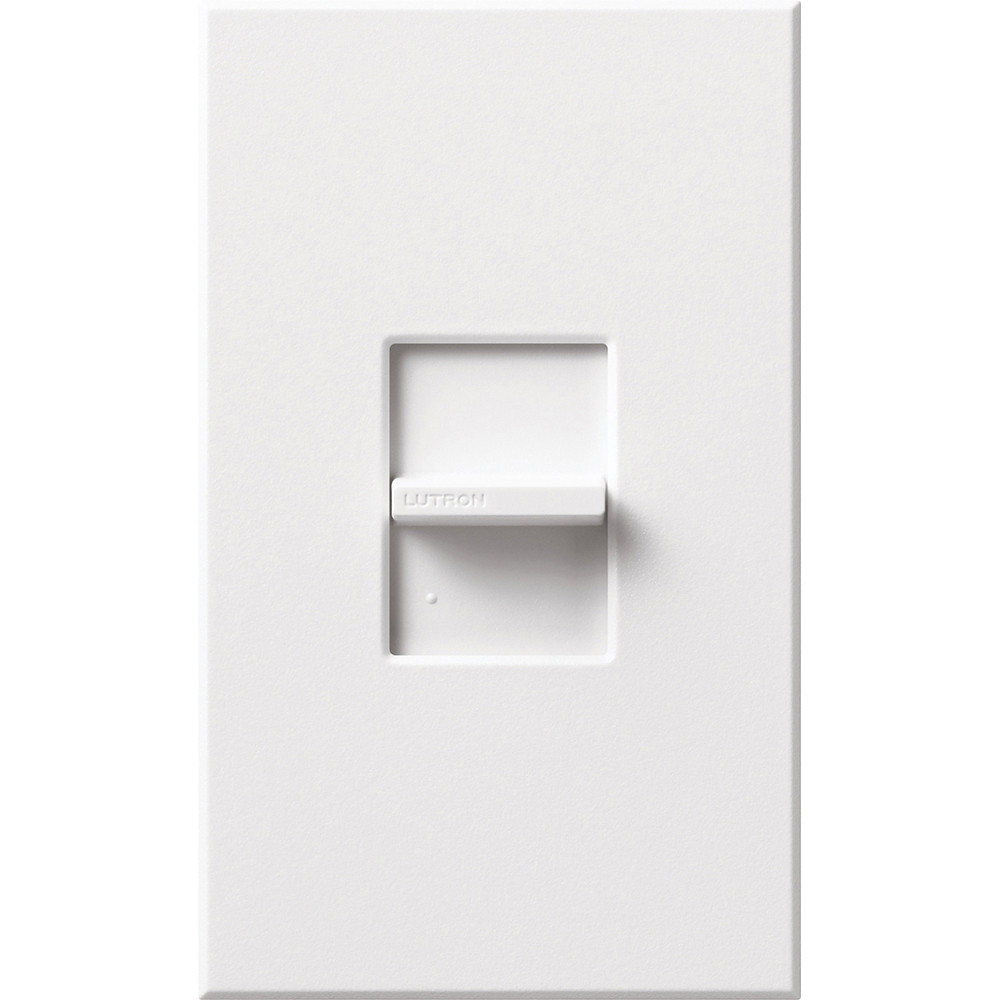

NTSTV-DV-WH Nova T Dimmer by Lutron is a professional-grade slide-to-off control designed for electronic ballasts and LED drivers using 0–10V sink dimming. Built on the classic Nova T platform, this dimmer provides reliable line-voltage on/off switching combined with precise 0–10V dimming control for commercial and architectural lighting systems.
Product Summary
- Control Type: Slide-to-off dimmer with 0–10V sink control
- Input Voltage: 120–277V AC, 60 Hz
- Maximum Line Load: 8 A
- 0–10V Sink Current: 30 mA
- Application: Single Pole
- Compatible Loads: Electronic ballasts and LED drivers (0–10V)
- Finish: White
- Environment: Indoor use only
Free shipping on orders over $250
Product Benefits
- Accurate 0–10V dimming: Provides smooth, stable dimming performance for compatible LED drivers and electronic ballasts.
- No power pack required: Directly controls loads up to 8 A without an external power pack.
- Commercial-grade reliability: Heavy-duty Nova T construction supports long service life in demanding environments.
- Simple operation: Linear slider adjusts light level and slides fully down to turn lights off.
Key Features
- 0–10V sink control: Compatible with ballasts and drivers that provide a compliant current source.
- Wide voltage range: Designed for 120–277V line-voltage systems.
- High- and low-end trim: Adjustable trim allows optimization of the dimming range.
- Accessible air-gap switch: Safely disconnects load power during servicing.
- Nova T styling: Thin-profile design with precise color matching for professional installations.
Specifications
Technical
| Catalog Number | NTSTV-DV-WH |
| Application | Single Pole |
| Input Voltage | 120–277V AC, 60 Hz |
Performance
| Maximum Line Load | 8 A |
| 0–10V Sink Current | 30 mA |
| Dimming Method | 0–10V sink |
Physical
| Finish | White |
| Mounting | Standard wallbox |
Applications
- Commercial offices using 0–10V dimmable LED fixtures
- Retail and hospitality lighting with electronic ballasts
- Educational and healthcare facilities
- Architectural lighting systems requiring reliable slide dimming
Installation Tips
- Confirm compatibility: Ensure LED drivers or ballasts support 0–10V sink control.
- Wiring practices: Follow local code requirements for separating 0–10V control wiring from line voltage.
- Trim setup: Adjust high- and low-end trim after installation for optimal dimming.
- Power pack use: For loads above 8 A or Class 2 applications, use a compatible Lutron power pack.
- Indoor installation only: Use in dry, interior locations.
FAQ
What type of dimming does the NTSTV-DV-WH provide?
This model provides 0–10V sink dimming for electronic ballasts and LED drivers with slide-to-off line-voltage control.
Is a power pack required?
No power pack is required for loads up to 8 A. A power pack may be used for higher load currents or Class 2 installations.
What voltage systems are supported?
The dimmer is designed for 120–277V AC systems.
Can this dimmer be used in residential projects?
Yes, but it is primarily intended for commercial and architectural applications using 0–10V dimming.
Does this dimmer have preset functionality?
No. This is a slide-to-off model without preset operation.
Is derating required in multi-gang installations?
No. 0–10V controls do not require derating in multi-gang installations.
