Product Description

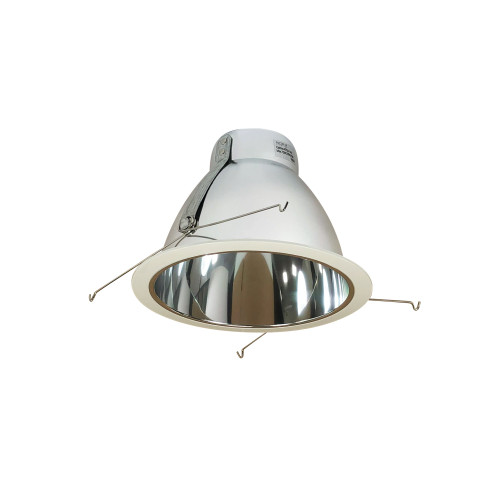

NTS-714C 6" Specular Clear Reflector W/ White Plastic Ring by Nora Lighting is designed to deliver a precise and clean lighting aesthetic. This high-grade specular reflector features a durable aluminum construction paired with a white plastic ring, making it an excellent choice for various residential and commercial downlighting applications.
Product Name: NTS-714C 6" Specular Clear Reflector W/ White Plastic Ring
Brand: Nora Lighting
Compatible Lamp Types: A19, BR/PAR30, BR40/PAR38
Mounting Type: "V" Torsion Springs
UL Listing: Damp Location (with compatible housing)
Free shipping on orders over $250
- Enhances ceiling aesthetics with a specular clear finish for precise light reflection.
- Versatile compatibility with a wide range of line voltage housings.
- Secured mounting system with “V” torsion springs for easy installation and replacement.
- Ideal for residential and commercial downlighting applications in damp locations.
- Precision spun 0.050 aluminum specular reflector with white plastic trim ring.
- Direct socket mounting without a bracket for flexible installation options.
- Compatible with various wattages up to 150W, depending on housing selection.
- cULus Listed for Damp Location when paired with specified housings.
| Technical Specs | |
|---|---|
| Reflector Material | Precision Spun Aluminum (0.050 thickness) |
| Trim Ring | White Plastic |
| Mounting | “V” Torsion Springs |
| Performance Specs | |
|---|---|
| Lamp Compatibility | 60W A19, 75W BR/PAR30, 90W-150W BR40/PAR38 |
| UL Listing | Damp Location (with compatible housing) |
- General ceiling downlighting in residential living spaces
- Commercial retail and office lighting environments
- Hospitality applications including hotels and lobbies
- Installation in damp locations like covered patios and bathrooms (with proper housing)
- Ensure the selected housing is compatible with the reflector's wattage capacity.
- Use the provided “V” torsion springs to secure the reflector firmly in place.
- Socket can be mounted directly to trim without requiring a bracket for ease of installation.
- Always disconnect power before installing or replacing trims and housings.
Frequently Asked Questions
Q: Which lamp types are compatible with the NTS-714C Reflector?
A: The NTS-714C is compatible with 60W A19, 75W BR/PAR30, and BR40/PAR38 lamps up to 150W, depending on the housing used.
Q: Can this reflector be installed in damp locations?
A: Yes, it is cULus Listed for Damp Locations when used with specified compatible housings.
Q: What housings are recommended for the NTS-714C?
A: Compatible housings include NH-26Q, NHIC-17QAT, NHRIC-17QAT, NFBIC-6INCATA, among others. Refer to the specification sheet for a full list.
Q: Does this trim require any additional brackets for installation?
A: No, the socket can be mounted directly to the trim without the need for brackets.
Q: What is the material composition of the reflector?
A: It is made of precision spun 0.050 aluminum with a specular clear finish and a white plastic ring.
Q: How is the NTS-714C reflector secured to the ceiling housing?
A: The reflector uses two “V” torsion springs to mount securely into the housing.
Q: Can I get replacement torsion springs for this trim?
A: Yes, replacement “V” torsion springs (NRA-86) are available separately.
Q: What is the maximum wattage the reflector can handle?
A: It supports up to 150W BR40/PAR38 lamps when used with the NH-26Q or NHR-26Q housings.
