Product Description
NTM-710BBAL 6" Air-tight Aluminum Cone Reflector Black is a precision-spun aluminum reflector trim designed to reduce aperture glare while delivering a clean, finished look for 6" recessed housings. Manufactured by Nora Lighting, this air-tight cone reflector is ideal for line voltage BR40/PAR38 lamp applications and secure spring mounting in compatible housings.
NTM-710BBAL
6"
Black
0.040 precision spun aluminum
cULus Damp Location (with compatible housing)
Free shipping on orders over $250
Product Benefits
- Reduced aperture glare: Precision spun cone reflector helps control glare for a more comfortable visual environment.
- Air-tight trim option: Supports efficient ceiling performance when paired with compatible housings.
- Secure installation: Includes 2 “V” torsion springs to mount the trim securely to the housing.
- Versatile retrofit or new construction use: Compatible with multiple Nora line voltage IC and non-IC housing types.
Key Features
- Precision spun 0.040 aluminum reflector to reduce aperture glare.
- Available series finishes include Black and White (series option).
- Trim-mounted socket option: Socket can be mounted directly to trim without bracket.
- V torsion spring mounting: 2 “V” torsion springs included; replacement torsion springs available (NRA-86).
- Damp location rated: cULus Listed for Damp Location when used with compatible housing.
Specifications
Technical
| Catalog No. | NTM-710BBAL |
| Trim Type | 6" Air-Tight Aluminum Cone Reflector |
| Lamp Type | Line Voltage |
| Max Lamp Wattage (Compatible Housings) | 100W BR40/PAR38 Maximum (NHIC-17QAT; NHIC-17QNBAT; NHIC-17/100DWQA; NHR-26Q; NHRIC-17QAT; NHRIC-17QNBAT) 150W BR40/PAR38 Maximum (NH-26Q; NH-26QNB; NHR-26Q) |
Physical
| Construction | Precision spun 0.040 aluminum reflector |
| Finish | Black |
| Mounting | Includes 2 “V” torsion springs |
| Replacement Spring | NRA-86 |

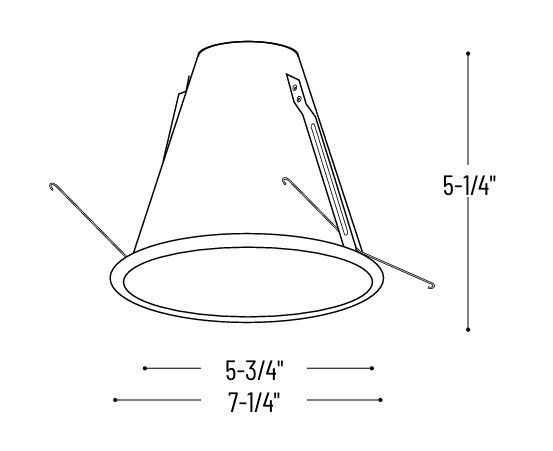

| Dimensions (as shown) | 5-3/4" / 7-1/4" / 5-1/4" |
Listings & Compliance
| Listing | cULus Listed |
| Location Rating | Damp Location (when used with compatible housing) |
Applications
- Residential and light commercial recessed downlighting with BR40/PAR38 line voltage lamps.
- Spaces where reduced aperture glare is desired (living areas, corridors, retail, hospitality).
- Projects requiring Damp Location listing when installed with compatible housings.
- New construction and remodel installations using compatible Nora 6" housings.
Installation Tips
- Confirm housing compatibility: Verify the selected housing model is listed as compatible before installation.
- Use the torsion springs correctly: Engage the 2 “V” torsion springs evenly to keep the trim seated and secure.
- Check lamp wattage limits: Follow the maximum wattage by housing type (100W or 150W BR40/PAR38 Maximum).
- Damp location requirements: For damp environments, use only with compatible housings to maintain cULus Damp Location listing.
- Power safety: Turn off power at the breaker before servicing the lamp, socket, or trim components.
FAQ
Is the NTM-710BBAL trim air-tight?
Yes. The NTM-710 series is a 6" air-tight aluminum cone reflector trim.
What is the reflector made of?
It uses a precision spun 0.040 aluminum reflector designed to reduce aperture glare.
What lamps can be used with this trim?
This trim is intended for line voltage BR40/PAR38 lamps, with maximum wattage dependent on the compatible housing used.
What is the maximum wattage allowed?
Maximum wattage is 100W BR40/PAR38 in specified ICAT/ICAT remodel housings and 150W BR40/PAR38 in specified non-IC/new construction or remodel housings.
How does the trim mount to the housing?
The trim includes 2 “V” torsion springs to mount securely to the compatible housing.
Are replacement torsion springs available?
Yes. Replacement “V” torsion springs are available as NRA-86.
Is this trim rated for damp locations?
It is cULus listed for Damp Location when used with a compatible housing.
Can the socket be mounted directly to the trim?
Yes. The socket can be mounted directly to the trim without a bracket.
