Product Description

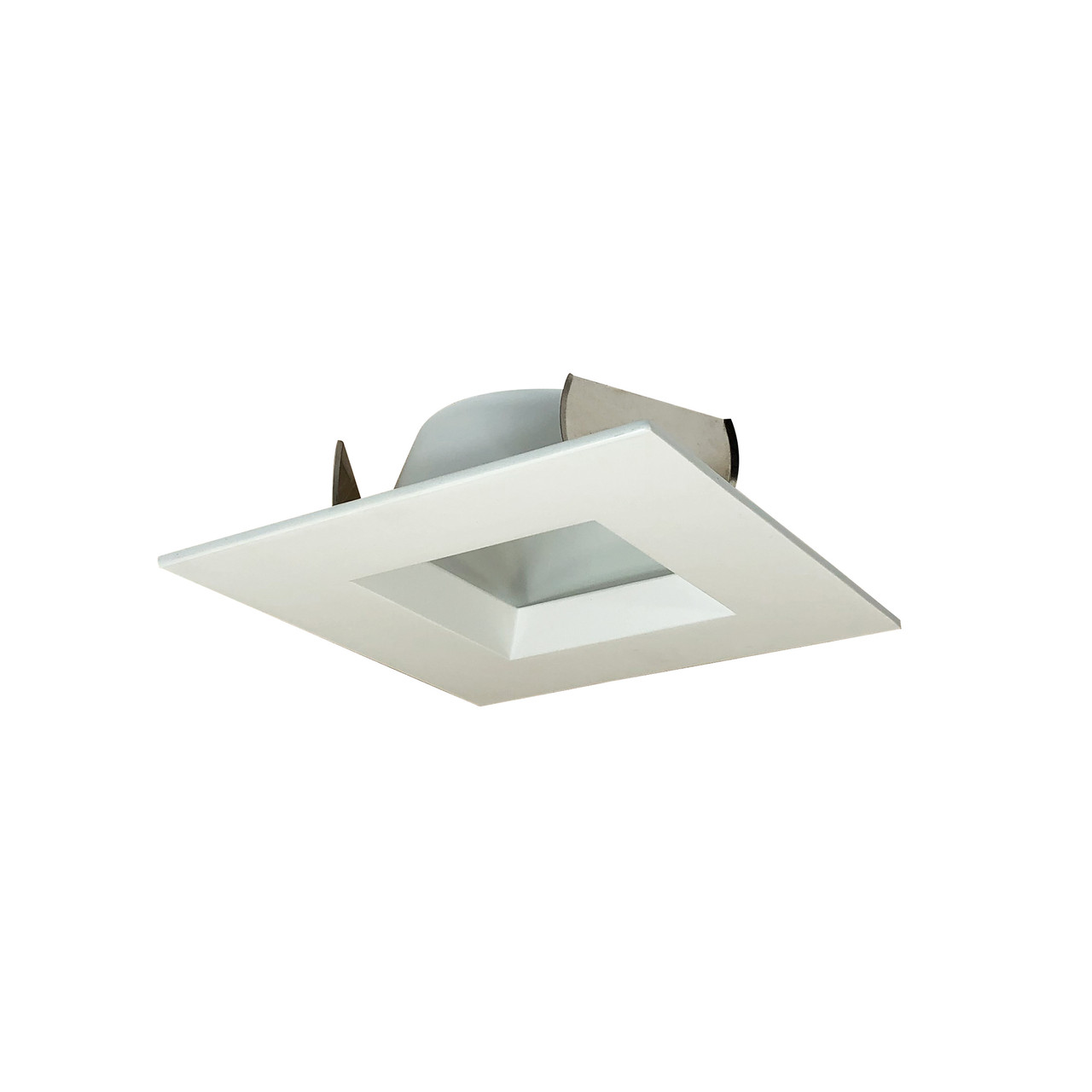

NTM-6857WW 6" Square Regressed Reflector Trim by Nora Lighting is designed with a sharp, clean-edged die-cast aluminum flange and a non-reflective white finish, making it ideal for architectural ceiling applications where crisp, square aesthetics are desired. This trim accommodates BR30/PAR30 lamps up to 75W and is compatible with a variety of Nora housings for both IC and Non-IC installations.
Finish: White Reflector with White Flange
Lamp Type: Line Voltage 75W BR30 / PAR30
Mounting: Trim blades for secure fit
Application: Damp Location Rated
Free shipping on orders over $250
- Clean square aperture design ideal for modern architectural ceiling layouts.
- Compatible with multiple IC and Non-IC Nora Lighting housings for flexible installations.
- Die-cast aluminum flange ensures durability and maintains sharp edge aesthetics.
- Rated for damp locations, suitable for both residential and commercial applications.
- 6" die-cast aluminum flange provides sharp, clean corners with a non-reflective painted finish.
- Square regressed reflector minimizes glare while offering a contemporary look.
- Three trim blades ensure a secure and flush fit within compatible housings.
- Supports up to 75W BR30/PAR30 lamps for powerful downlighting.
- cULus Listed for Damp Locations when installed with approved housings.
| Technical Specs | |
|---|---|
| Trim Type | 6" Square Regressed Reflector with Flange |
| Material | Die-cast aluminum flange |
| Finish | White Reflector with White Flange |
| Mounting Method | Three trim blades |
| Lamp Compatibility | |
|---|---|
| Line Voltage | 75W BR30 / PAR30 |
| Compliance & Safety | |
|---|---|
| Listing | cULus Listed for Damp Locations |
- Architectural ceiling installations in modern commercial interiors
- High-end residential spaces requiring square aperture aesthetics
- Hospitality venues like hotels, restaurants, and conference rooms
- Retail environments focusing on clean, glare-free downlighting
- Ensure compatibility with specified Nora Lighting housings prior to installation.
- Secure the trim using the included three trim blades for a tight and stable fit.
- Position the lamp socket appropriately inside the housing for optimal light distribution.
- Always disconnect power before installation or maintenance procedures.
- Rated for damp locations; not intended for direct wet location exposure.
Frequently Asked Questions
Q: What lamp types are compatible with the NTM-6857WW?
A: The NTM-6857WW supports Line Voltage 75W BR30 and PAR30 lamps.
Q: Is this trim suitable for damp locations?
A: Yes, it is cULus Listed for Damp Locations when installed with compatible Nora Lighting housings.
Q: How is the NTM-6857WW mounted to the housing?
A: The trim uses three trim blades that securely anchor it into the housing aperture, ensuring a flush and secure installation.
Q: Which housings are compatible with the NTM-6857WW?
A: Compatible housings include NH-26Q, NHIC-17QAT, NHIC-27QAT, NHR-26Q, NHRIC-17QAT, and others as specified in Nora's product documentation.
Q: Does the NTM-6857WW help reduce glare?
A: Yes, the regressed reflector design helps minimize direct glare, providing a comfortable visual experience.
Q: Are other finishes available for this model?
A: Yes, an alternate model NTM-6857HZHZW features a haze reflector with a white flange for a different aesthetic option.
Q: What are the dimensions of the NTM-6857WW trim?
A: The trim has a width of 7-5/8", an aperture opening of 4", and a depth of 2-1/2".
Q: Can this trim be used with sloped ceilings?
A: This trim is designed for flat ceiling installations. For sloped ceilings, consult Nora Lighting for appropriate options.
