Product Description

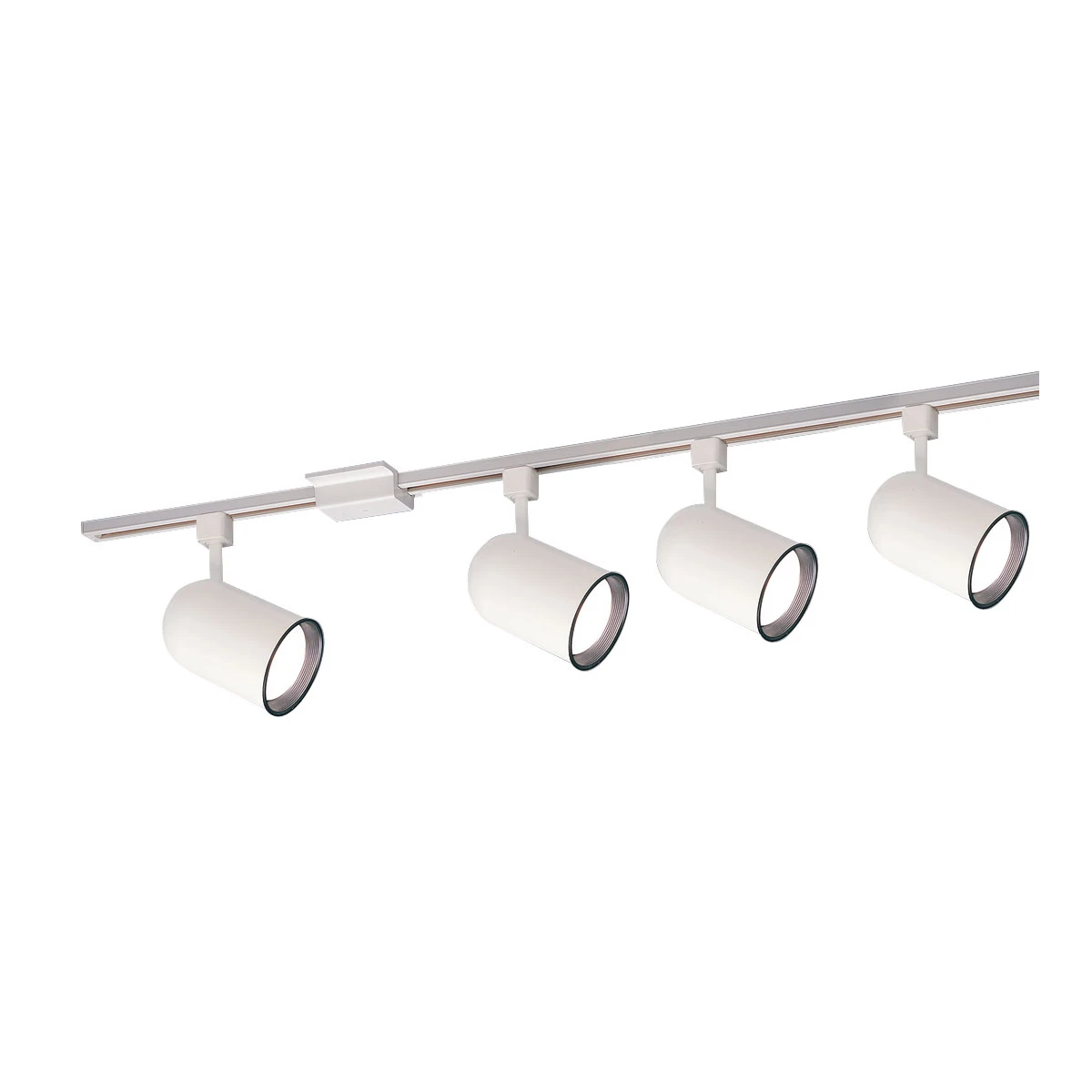

NTL-156/4H 4-FT Track Pack With (4) Round Back Cylinder PAR30 Track Heads by Nora Lighting is a complete line-voltage track lighting kit designed for flexible, adjustable accent lighting in residential and light commercial spaces. This pack includes a 4' single-circuit aluminum track and (4) round back cylinder track heads with black baffles, plus a floating canopy feed that can mount anywhere along the track to align with an existing outlet box.
Quick Specs:
- Track Length: 4'
- Heads Included: (4) round back cylinder track heads with black baffles
- Lamp Type: R/PAR30, 75W (lamp not included)
- Input: 120V, 60Hz
- Max Load: 2400W (line voltage)
- Track Rating: 20A rated conductors
- Dimming: Dimmable with any approved incandescent dimmer
- Location Rating: Indoor, dry location
- Listing: UL listed as track lighting fitting
- Finish: White baked enamel paint
Free shipping on orders over $250
Product Benefits
- Flexible positioning anywhere on the run: Floating canopy feed allows the track to connect to an existing outlet box anywhere along the 4' track for cleaner alignment and easier installs.
- Precise aiming for accent lighting: Fully adjustable heads hold a firm angle position to highlight artwork, displays, countertops, and feature walls.
- Clean, professional appearance: Concealed wiring and a simple cylindrical head design with a black baffle helps reduce glare from the housing interior.
- Easy system integration: Interchangeable with fixtures configured to the Halo 3-conductor track design for straightforward upgrades or additions.
Key Features
- Complete kit: (1) 4' single-circuit extruded aluminum track, (4) line-voltage track heads, (2) end caps, and floating canopy feed.
- Durable construction: Deep drawn steel head housing for high strength and rigidity.
- Concealed wiring: Lead wire from socket to contact head is fully hidden through the structural arm/wireway.
- High-strength contacts: Stainless steel electrical contacts mounted in high heat rated plastic housing.
- Socket: Porcelain jacketed aluminum screw thread medium base socket.
- Finish: White heat rated baked enamel paint.
Specifications
Technical
| Input Voltage | 120V |
| Frequency | 60Hz |
| Max System Load | 2400W |
| Track Rating | 20A rated flat, solid integral conductors |
| Dimming | Compatible with any approved incandescent dimmer |
Performance
| Lamp Type | R/PAR30 (not included) |
| Max Lamp Wattage (per head) | 75W |
| Number of Heads | 4 |
Physical
| Track Length | 4' |
| Track Height | 11/16" |
| Track Width | 1-7/16" |
| Track Head Diameter | 4-3/8" |
| Track Head Length | 6-1/8" |
| Max Extension | 9-1/4" |
| Housing | Deep drawn steel |
| Baffle | Black finished phenolic high rated plastic |
| Finish | White |
Compliance & Compatibility
| Listing | UL listed as track lighting fitting |
| Environment | UL listed for indoor, dry location |
| Track System Compatibility | Interchangeable with Halo, Catalina, Hampton Bay, Halo-Edison, or other brands configured to Halo 3 conductor track design |
| Compatibility Note | Fixtures may not be compatible with non-Nora transformers or monopoint adapters |
Applications
- Retail and display lighting: Aimable PAR30 track heads for product walls, feature displays, and shelf illumination.
- Residential accent lighting: Living rooms, kitchens, hallways, and home offices where directional light is needed.
- Hospitality and galleries: Flexible spotlighting for artwork, signage, and architectural details.
- Remodel and retrofit projects: Floating canopy feed supports outlet box alignment anywhere along the track.
Installation Tips
- Plan head spacing first: Position the (4) heads based on what you want to highlight, then fine-tune aiming after lamps are installed.
- Use the floating canopy feed for best alignment: Mount the feed where it matches the existing outlet box location along the 4' run.
- Confirm compatibility before mixing components: When pairing with existing track systems or accessories, verify Halo 3-conductor configuration and note that non-Nora transformers/monopoint adapters may not be compatible.
- Keep within electrical ratings: Do not exceed 2400W total load on 120V input.
- Dry location only: Install indoors in dry environments per UL listing.
FAQ
What is included in the NTL-156/4H track pack?
This kit includes (1) 4' single-circuit track with integral conductors, (2) end caps, (4) round back cylinder line-voltage track heads with black baffles, and a floating canopy feed.
Are lamps included with this track pack?
No. The track heads accept R/PAR30 lamps up to 75W, and lamps are not included.
What voltage does this track system use?
This is a line-voltage track pack designed for 120V input at 60Hz.
Can I dim these track heads?
Yes. Nora track may be dimmed with any approved incandescent dimmer.
Is this track pack rated for dry or wet locations?
This product is UL listed for indoor, dry location use.
What track systems is this compatible with?
Nora track fixtures are interchangeable with Halo, Catalina, Hampton Bay, Halo-Edison, or other brands configured to Halo 3 conductor track design.
What are the dimensions of the track and heads?
The track is 4' long with a 11/16" height and 1-7/16" width. Each head is 4-3/8" in diameter, 6-1/8" long, with a maximum extension of 9-1/4".
Are there accessories available for PAR30 glare control?
Yes. Optional accessories include NT-339 Barn Door, NT-342 Black Louver (requires NT-339 or NT-345), and NT-345 Black Holder for R/PAR30.
