Product Description

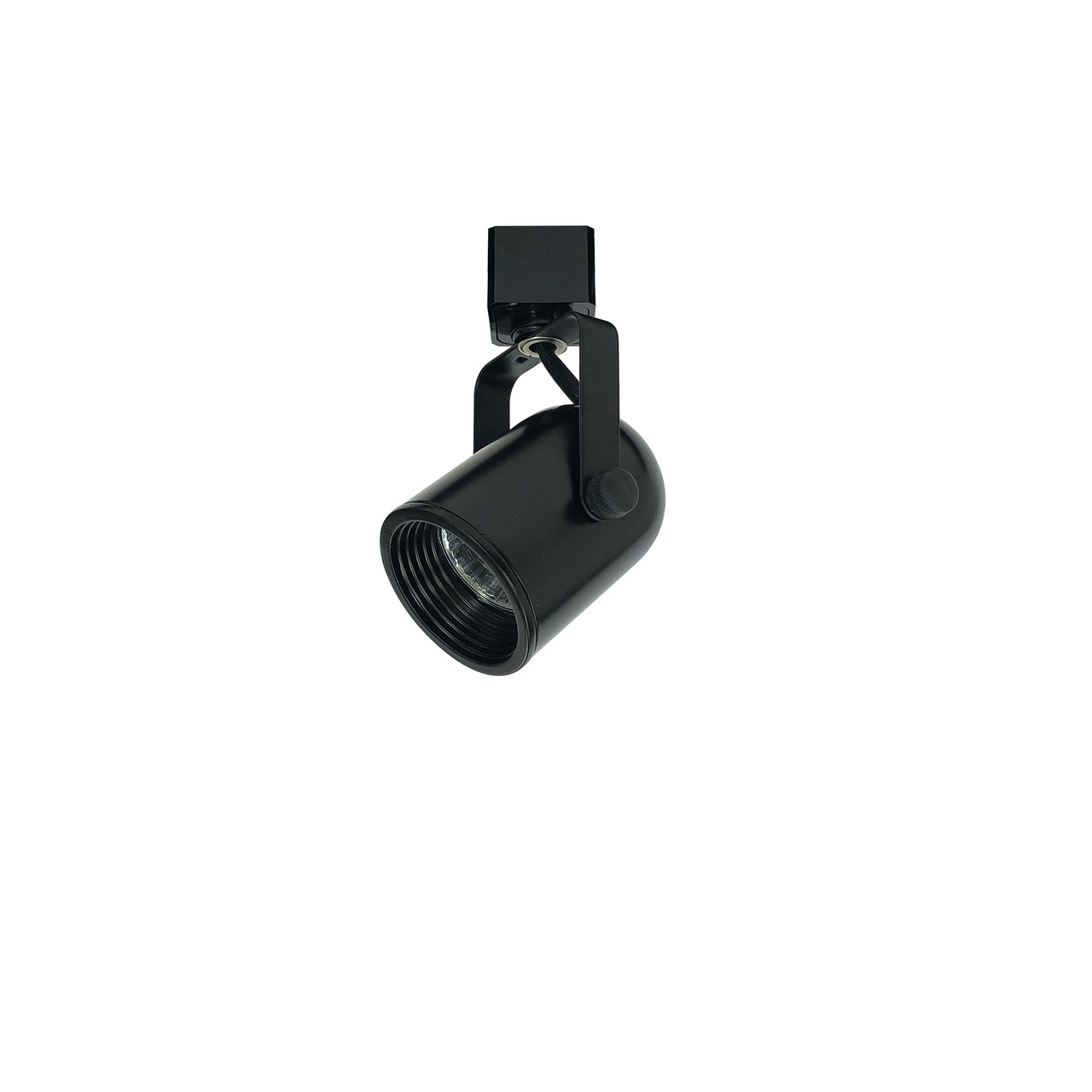

Nora NTH-694B Mini Baffle Round Back Cylinder Track Head is a compact, die-cast aluminum MR16 fixture with a GU10 twist-lock socket and an adjustable yoke for precise aiming—finished in black and UL Listed for reliable performance on H-, J-, or L-style track systems.
Product Summary
- Socket / Lamp: GU10 twist & lock; MR16 (lamp not included)
- Max Wattage: 50W (line voltage)
- Finish: Black (B); also available White (W)
- Track Styles: H-Style (standard), optional /J or /L adapters
- Aiming: Adjustable yoke with dual tightening knobs
- Construction: Die-cast aluminum housing; phenolic mini baffle
- Listing: UL Listed
- Dimensions: Approx. 5-3/4" L x 3-3/8" H x 2-1/2" D
Free shipping on orders over $250
Compatible with one- or two-circuit Nora NT-2300 series track (raise positive contact for 2-circuit).
Benefits
- Clean, controlled beam from the mini baffle reduces glare for accenting merchandise and displays.
- Flexible aiming via rigid steel yoke with secure dual knobs—stays put after you focus it.
- Upgrade without rewiring thanks to H/J/L adapter options and one- or two-circuit compatibility.
- Durable build with die-cast aluminum housing and stainless electrical contacts for long service life.
Key Features
- Round-back cylinder die-cast aluminum housing with softened edges for a designer look.
- Phenolic mini baffle (black) to limit stray light and glare; clear shield included.
- GU10 twist-lock socket accepts line-voltage MR16 up to 50W (lamp not included).
- H, J, or L-style adapters available; dual-circuit capable on Nora NT-2300 series track.
- UL Listed for safety.
Specifications
Technical Specs
| Socket | Porcelain GU10 twist & lock |
| Lamp Type | MR16 (not included) |
| Max Wattage | 50W |
| Track Circuit | One or two circuit (raise positive contact for 2-circuit NT-2300) |
| Electrical Contacts | High-strength stainless steel |
| Listing | UL Listed |
Physical Specs
| Housing | 030 die-cast aluminum; round-back cylinder |
| Finish | Black (B); also offered in White (W) |
| Baffle | 0.085" high-heat phenolic, black |
| Yoke | Rigid steel “wishbone” with dual angle-tightening knobs |
| Overall Dimensions | Approx. 5-3/4" (L) x 3-3/8" (H) x 2-1/2" (D) |
| Included | Clear shield |
Performance / Accessories
| Filters (optional) | NM-100/MR16 accessories: Blue, Clear, Frosted, Green, Linear, Pink, Red, Spread, Yellow |
| Adapters | H-Style (standard), /J J-Style, /L L-Style |
Application Examples
- Retail accent lighting for merchandise and displays
- Gallery and museum spotlighting
- Hospitality: lobbies, restaurants, feature walls
- Residential and boutique environments using track systems
Installation Tips
- Confirm track system type (H, J, or L) before ordering; choose the matching adapter.
- For two-circuit Nora NT-2300 track, raise the positive contact to the upper position to select the second circuit.
- Insert GU10 MR16 lamp and seat fully; reinstall the clear shield after relamping.
- Use the dual knobs to lock the aiming angle and prevent drift.
FAQ
What lamp does the NTH-694B use?
It uses a line-voltage MR16 with a GU10 twist-lock base (lamp not included).
What is the maximum wattage?
The fixture is rated up to 50 watts.
Which track systems are compatible?
It ships for H-Style track, with optional /J or /L adapters available. It can be configured for one- or two-circuit operation on Nora NT-2300 series track.
Does it include any accessories?
A clear shield is included. Optional NM-100/MR16 filters (color, spread, linear, etc.) are available separately.
Is the NTH-694B UL Listed?
Yes, it is UL Listed.
What are the overall dimensions?
The body is approximately 5-3/4" long, 3-3/8" high, and 2-1/2" in diameter.
