Product Description

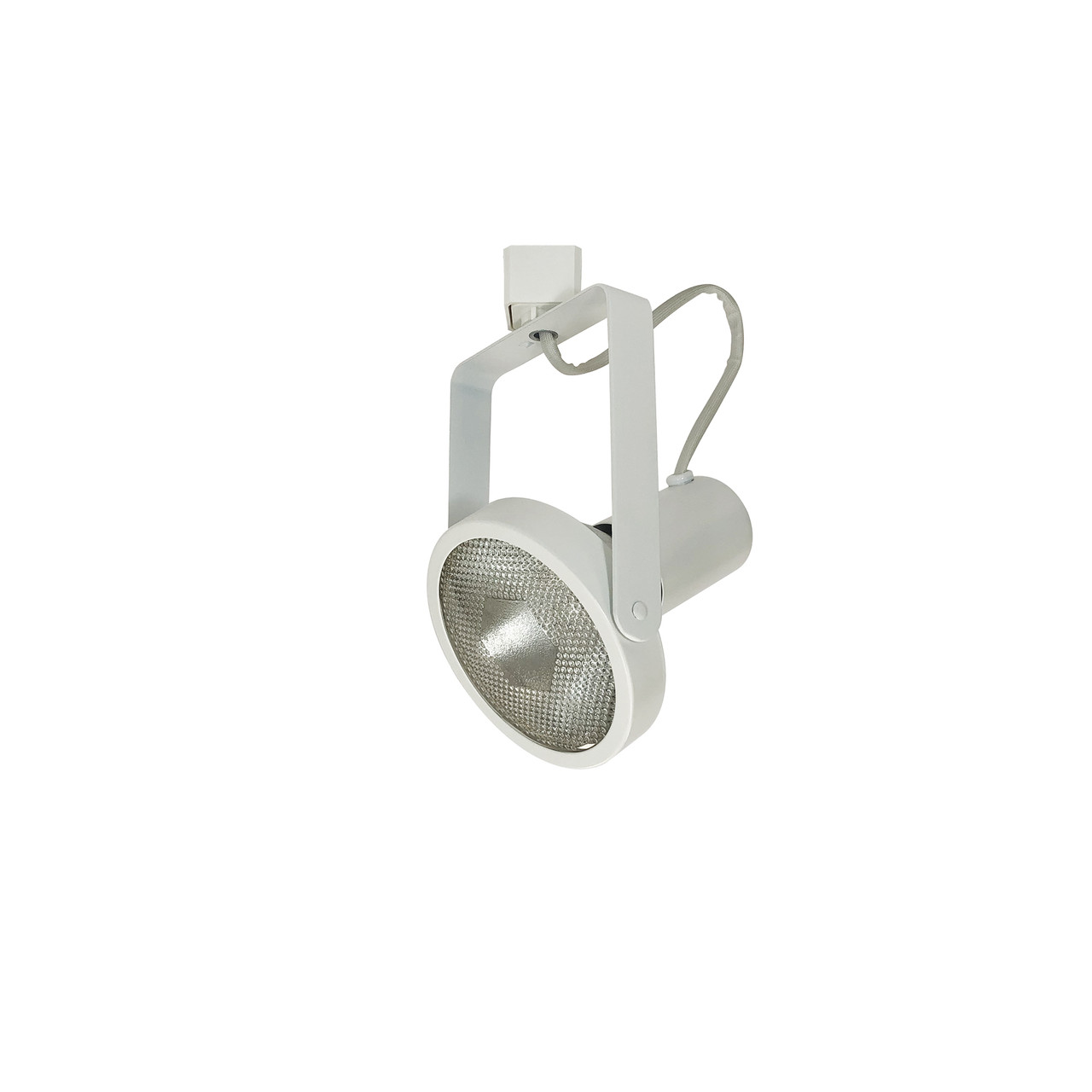

The NTH-108W/A Gimbal PAR38 White from Nora Lighting is a robust rear-loading track head designed for high-output applications. This adjustable fixture accommodates up to 150W PAR38 lamps and features a rigid die-cast aluminum build for durability and performance. Ideal for commercial, retail, or gallery lighting, it integrates smoothly into one- or two-circuit track systems and is available in a clean white finish.
- Brand: Nora Lighting
- Model: NTH-108W/A
- Voltage: 120V
- Lamp: 150W PAR38 max. (not included)
- Socket: Medium base
- Track Compatibility: H-style, J-style, L-style
- Finish: White
Free shipping on orders over $250
Benefits of the NTH-108W/A
- High wattage capacity supports powerful illumination for large spaces
- Compatible with LED PAR38 lamps for energy-efficient upgrades
- Fully adjustable gimbal design enables targeted beam placement
- Installs easily into one- or two-circuit track systems
Key Features
- Rear-Loading Housing: Provides convenient lamp replacement
- Rigid Wishbone Yoke: Offers strong support and full aiming flexibility
- Versatile Finish Options: Available in white, black, or bronze
- Two-Circuit Compatible: Can be adapted to Nora NT-2300 series dual-circuit tracks
Specifications
Technical Specs
| Attribute | Details |
|---|---|
| Voltage | 120V |
| Socket Type | Medium Base |
| Lamp Type | PAR38 (150W max) |

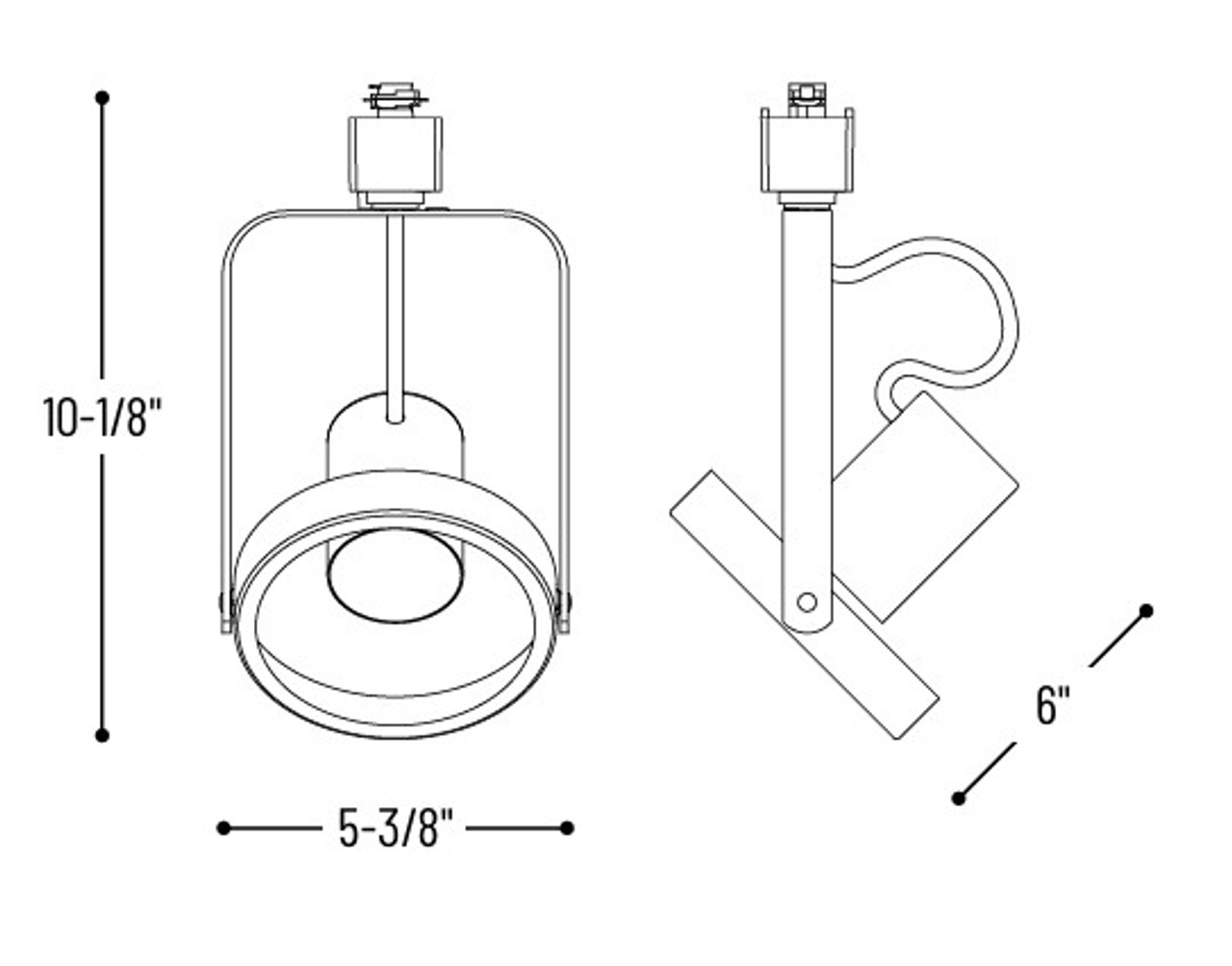

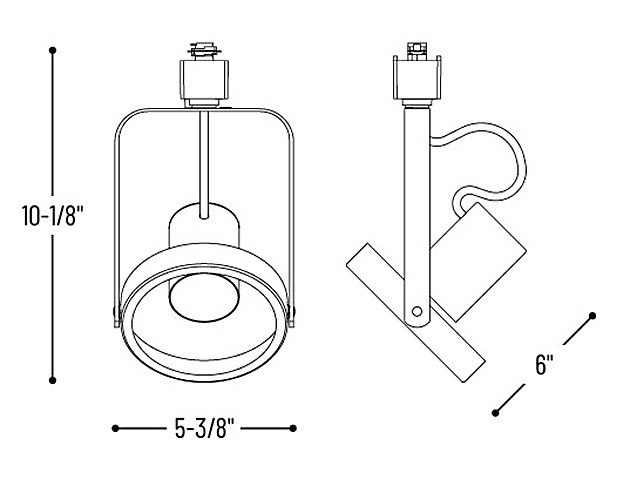

Physical Specs
| Height | 10-1/8" |
| Width | 5-3/8" |
| Depth | 6" |
| Finish | White |
Compliance & Safety
| Certifications | UL Listed |
Ideal Applications
- Retail display and visual merchandising
- Art galleries and museum installations
- Commercial showrooms and demo areas
- Task lighting in studios or workspaces
Installation Tips
- Confirm fixture style (H/J/L) to match your track system before installation
- Insert the fixture into the track and rotate to lock in place
- Adjust gimbal angle for optimal lighting coverage
- Use compatible LED PAR38 lamps for energy savings and lower heat
Frequently Asked Questions
Q: What type of lamp does the NTH-108W/A use?
A: It uses a PAR38 lamp with a maximum wattage of 150W (lamp not included).
Q: Is it compatible with LED lamps?
A: Yes, it accepts LED PAR38 lamps, offering an energy-efficient lighting solution.
Q: Can this fixture be used with a two-circuit track?
A: Yes, by adjusting the positive contact, it is compatible with Nora NT-2300 series two-circuit tracks.
Q: What finishes are available?
A: It comes in white, black, and bronze finishes to match your space design.
Q: Is this fixture UL Listed?
A: Yes, it is UL Listed for safety and performance.
Q: Is it difficult to change the lamp?
A: No, the rear-loading design allows for easy access and lamp replacement.
