Product Description

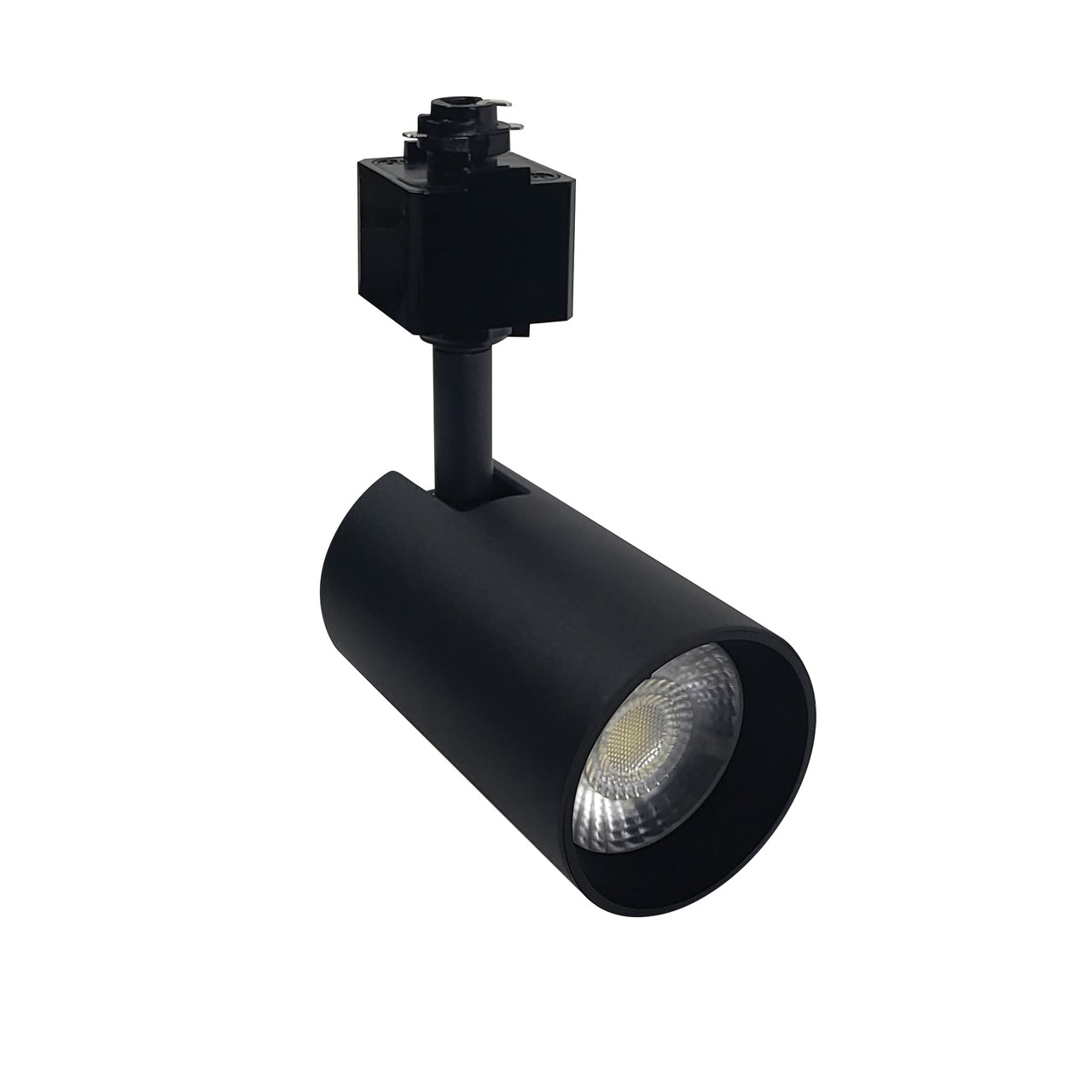

Nora NTE-864L940NB MAX Mini LED Track Head delivers 1000 lumens at just 13W in a crisp 4000K / 90+ CRI package with a factory-installed Narrow Flood (≈41°) optic. The compact, die-cast design offers 359° rotation, 90° tilt, and smooth Triac/ELV dimming—ideal for retail, hospitality, and residential accent lighting.
NTE-864L940NB – MAX Mini LED Track Head, 1000lm / 13W, 4000K, Narrow Flood, Black, H-Style
120V LED track head with 359° × 90° aiming, Triac/ELV dimming, one- or two-circuit track capability, and optional monopoint canopies.
- Lumen Output: 1000 lm (finish multiplier: Black 0.98)
- Wattage: 13W
- CCT / CRI: 4000K / 90+ CRI
- Beam: Narrow Flood ~41°
- Voltage: 120V
- Dimming: Triac or ELV
- Adapter: H-Style (J/L available by part number)
Free shipping on orders over $250
Benefits
- Power-efficient punch: 1000 lm from just 13W delivers bright accents with low energy use.
- Precise aiming: 359° rotation and 90° tilt make it easy to highlight merchandise and features.
- Flexible control: Works on one- or two-circuit track; Triac/ELV dimming for smooth fades.
- Clean, compact look: Die-cast aluminum body manages heat for long life and a sleek profile.
Key Features
- 1000 lm / 13W (4000K, 90+ CRI)
- 41° Narrow Flood optic (factory installed)
- Triac or ELV dimming on 120V
- 359° horizontal rotation / 90° vertical tilt
- One- or two-circuit capable (contact position selectable)
- 50,000-hour L70 lifetime; 5-year warranty
Specifications
Technical Specs
| Input Voltage | 120V, 50/60 Hz |
| Wattage / Lumens | 13W / 1000 lm (finish multiplier: Black 0.98; White 1.00) |
| CCT / CRI | 4000K / 90+ CRI |
| Dimming | Triac or ELV (see compatibility list) |
| Beam | ≈41° Narrow Flood |
| Lifetime | L70 50,000 hours |
Performance & Aiming
| Aiming | 359° horizontal rotation; 90° vertical tilt |
| Two-Circuit Use | Raise the positive contact to engage circuit 2 on NT-2300 series two-circuit track |
| Dimming Range | Compatible with Triac or ELV wall dimmers |
Physical Specs
| Construction | Die-cast aluminum housing for thermal performance |
| Finish | Black (NB = Narrow Flood, Black) |
| Approx. Dimensions | Overall length 6-1/2"; head diameter 2-3/8"; head length ~4" |
Compliance & Listings
| Listings | cETLus Listed for dry locations; FCC compliant |
| Efficiency | Certified to Title 24 JA8-2022 high-efficacy requirements |
| Warranty | 5-Year Limited |
Accessories
| NT-366 (B/W) | Round Monopoint Canopy (Black/White) |
| NT-319 (B/W) | Square Monopoint Canopy (Black/White) |
Application Examples
- Retail merchandising, window displays, and feature walls
- Hospitality lobbies, reception desks, and dining spaces
- Residential galleries, living rooms, and task lighting
Installation Tips
- Select adapter style: This part ships H-Style; J- or L-Style available by ordering the corresponding suffix.
- Two-circuit tracks: Raise the positive contact to the upper position to assign the head to circuit 2.
- Dimming: Use compatible Triac or ELV dimmers for smooth low-level performance.
- Aiming: Set 359°/90° as needed; verify the position is secure before energizing.
Frequently Asked Questions
What does “NB” mean in NTE-864L940NB?
“N” indicates the factory Narrow Flood optic and “B” indicates the Black finish.
Is the head dimmable?
Yes, it supports Triac or ELV dimming on 120V circuits.
Can it be used on two-circuit track?
Yes. The positive contact can be repositioned to operate on circuit 1 or 2 of Nora two-circuit tracks.
What are the aiming capabilities?
It rotates 359° and tilts 90° for precise accent placement.
What are the dimensions?
Approximately 6-1/2" overall length with a 2-3/8" diameter head (about 4" long).
Is it Title 24 compliant?
Yes, it is certified to the high-efficacy requirements of JA8-2022.
