Product Description

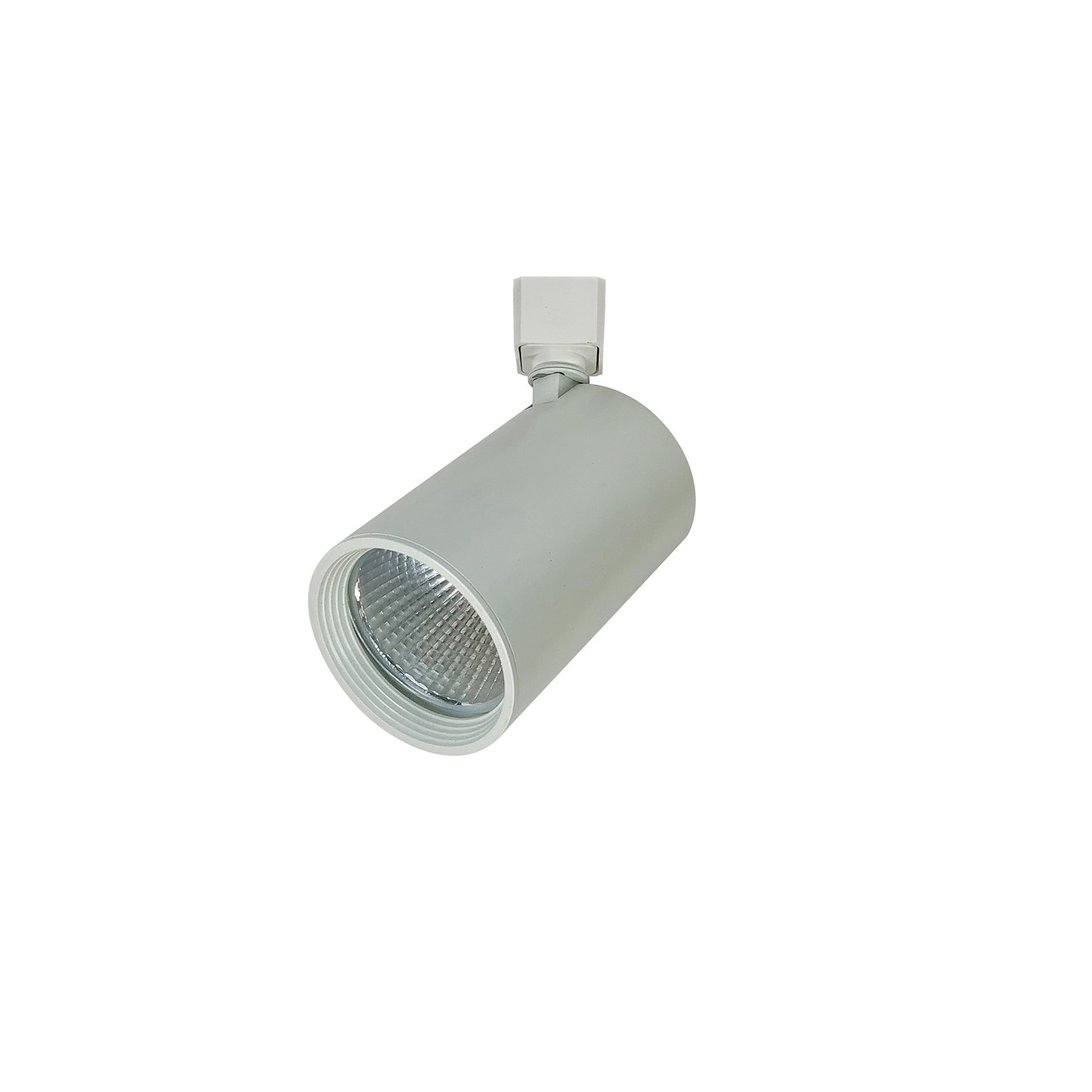

NTE-856L1F9334W Jason PS LED Track Head from Nora Lighting delivers up to 1450 lumens in a sleek, die-cast aluminum form with a deep-set COB optic for superior glare control. This 20W head features a three-position switch to select 3000K / 3500K / 4000K and a wide 56° flood beam—ideal for retail, hospitality, and gallery accent lighting.
At-a-Glance
- Lumen Output: up to 1450 lm (model/beam/CCT dependent; ≈1400 lm @ 4000K Flood)
- Wattage: 20W (integral driver)
- CCT: Selectable 3000K / 3500K / 4000K (preset 3000K)
- CRI: 90+
- Beam: Flood 56° (series also offers 28° Spot, 39° Narrow Flood)
- Voltage / Dimming: 120V, Triac / ELV
- Listings: cULus Dry Location, Title 24 JA8 (2019), FCC
- Warranty: 5-Year Limited
Free shipping on orders over $250
Product Benefits
- Selectable white tuning: switch between 3000K, 3500K, and 4000K directly on the fixture.
- Architectural glare control: deep-set LED with clean, modern housing.
- Flexible aiming: 359° horizontal rotation and 90° vertical tilt for precise focus.
- Track compatibility: ships H-style; optional /J or /L adapters fit Juno or Lightolier style tracks.
Key Features
- Die-cast aluminum body with integrated heat sink and driver
- Lens holder accepts one accessory (louver, glass, snoot, etc.)
- Two-circuit ready: raise positive contact to use on NT-2300 two-circuit tracks
- Finish: White (finish factor 1.00; Black 0.98)
Specifications
Technical Specs
| Input Voltage | 120V |
| Driver | Integral, dimmable |
| Dimming | Triac / ELV |
| Adjustability | 359° horizontal, 90° vertical |
| Environment | Dry Location (cULus) |

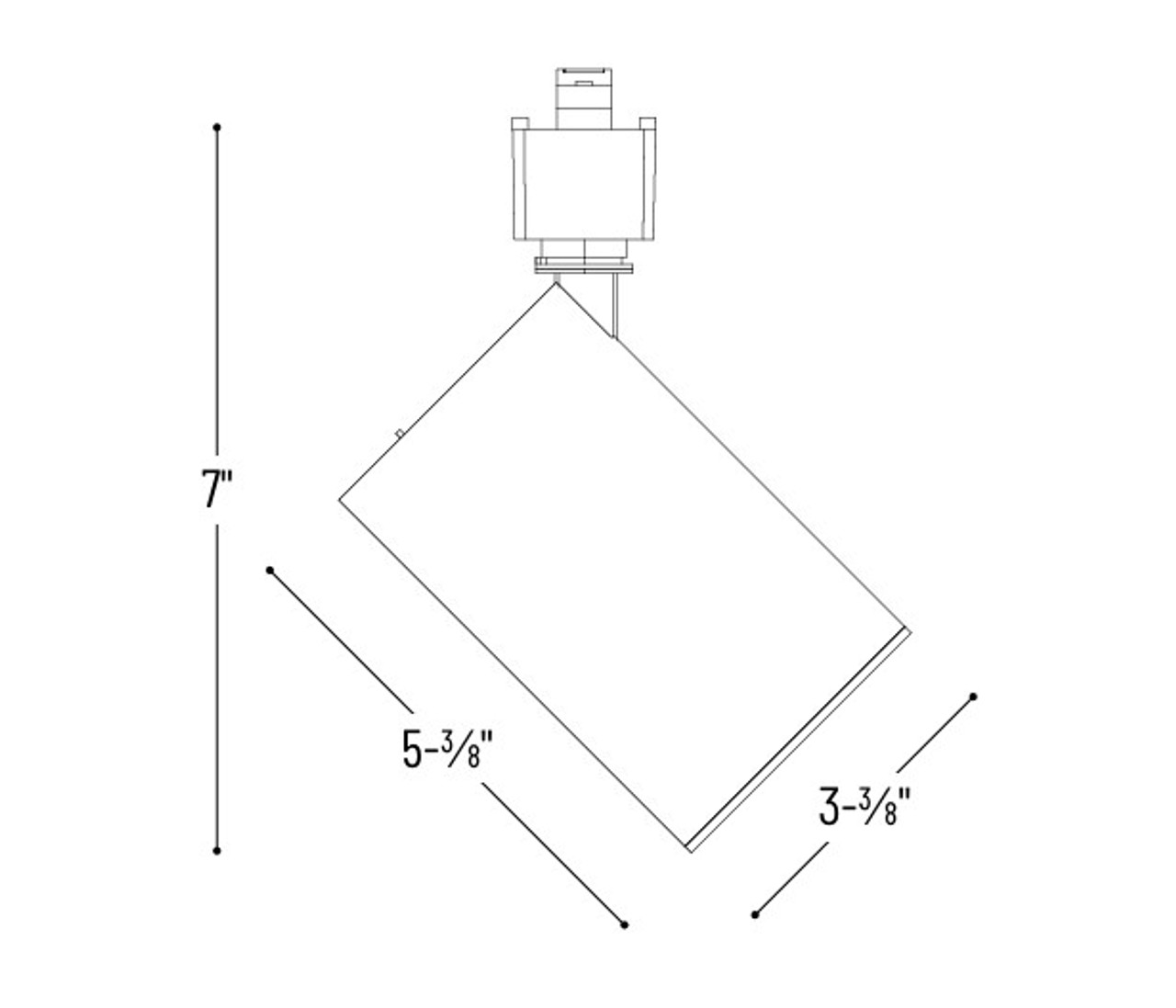

Physical Specs
| Overall Length | 7" |
| Overall Height | 5-3/8" approx. |
| Head Diameter | 3-3/8" approx. |
| Construction | Extruded & die-cast aluminum |
| Finish | White |
Performance Specs (Flood 56°)
| 4000K | ≈1401 lm @ ~20.2W (≈69 lm/W) |
| 3500K | ≈1359 lm (0.97 × 4000K) |
| 3000K | ≈1303 lm (0.93 × 4000K) |
| CRI | 90+ |
| Beam Angle | 56° Flood |
Delivered lumens vary by beam spread, CCT, and finish.
Compliance & Safety
| Listing | cULus Dry Location |
| Title 24 | JA8 High-Efficacy (2019) |
| FCC | Compliant |
| Warranty | 5-Year Limited |
Application Examples
- Retail aisles and feature walls needing wide flood illumination
- Hospitality and restaurants for art, signage, or table lighting
- Galleries and showrooms with selectable CCT to match finishes and materials
- Corporate lobbies and corridors requiring flexible aiming
Installation Tips
- Set desired CCT (3000K/3500K/4000K) using the three-position switch before final aiming.
- For two-circuit Nora NT-2300 tracks, raise the positive contact to the upper position.
- Use Triac or ELV dimmers rated for LED loads; verify compatibility on site.
- Add a honeycomb louver for glare control or a snoot / directional shield to limit spill.
- Confirm adapter style: ships H-style; order /J or /L for Juno or Lightolier pattern tracks.
Frequently Asked Questions
How do I change the color temperature?
A three-position switch on the back of the head lets you choose 3000K, 3500K, or 4000K (preset to 3000K).
Is the driver built in?
Yes. The Jason PS uses an integral, dimmable driver—no remote box required.
What beam options are available?
This model is Flood 56°. The series also offers 28° Spot and 39° Narrow Flood versions.
Will it work with two-circuit tracks?
Yes. Raise the positive contact to engage the second circuit on Nora NT-2300 two-circuit tracks.
Which accessories fit the lens holder?
Compatible options include honeycomb louver, clear or frosted glass, snoot, directional shield, and barndoors.
What are the real delivered lumens?
At 4000K with the Flood optic, expect about 1400 lumens; 3500K and 3000K deliver slightly less.
Is it Title 24 compliant?
Yes, it meets JA8 high-efficacy requirements.
What’s the aiming range?
Approximately 359° horizontal rotation and 90° vertical tilt.
