Product Description
The NT-5020C from Nora Lighting is a 5-inch recessed trim featuring a specular clear reflector with a white metal ring. Designed to reduce glare with its deep groove baffle design, this high-quality trim is compatible with various 5" line voltage housings and supports 75W BR or PAR30 lamps. Ideal for residential and commercial applications requiring efficient directional lighting in a clean, modern finish.

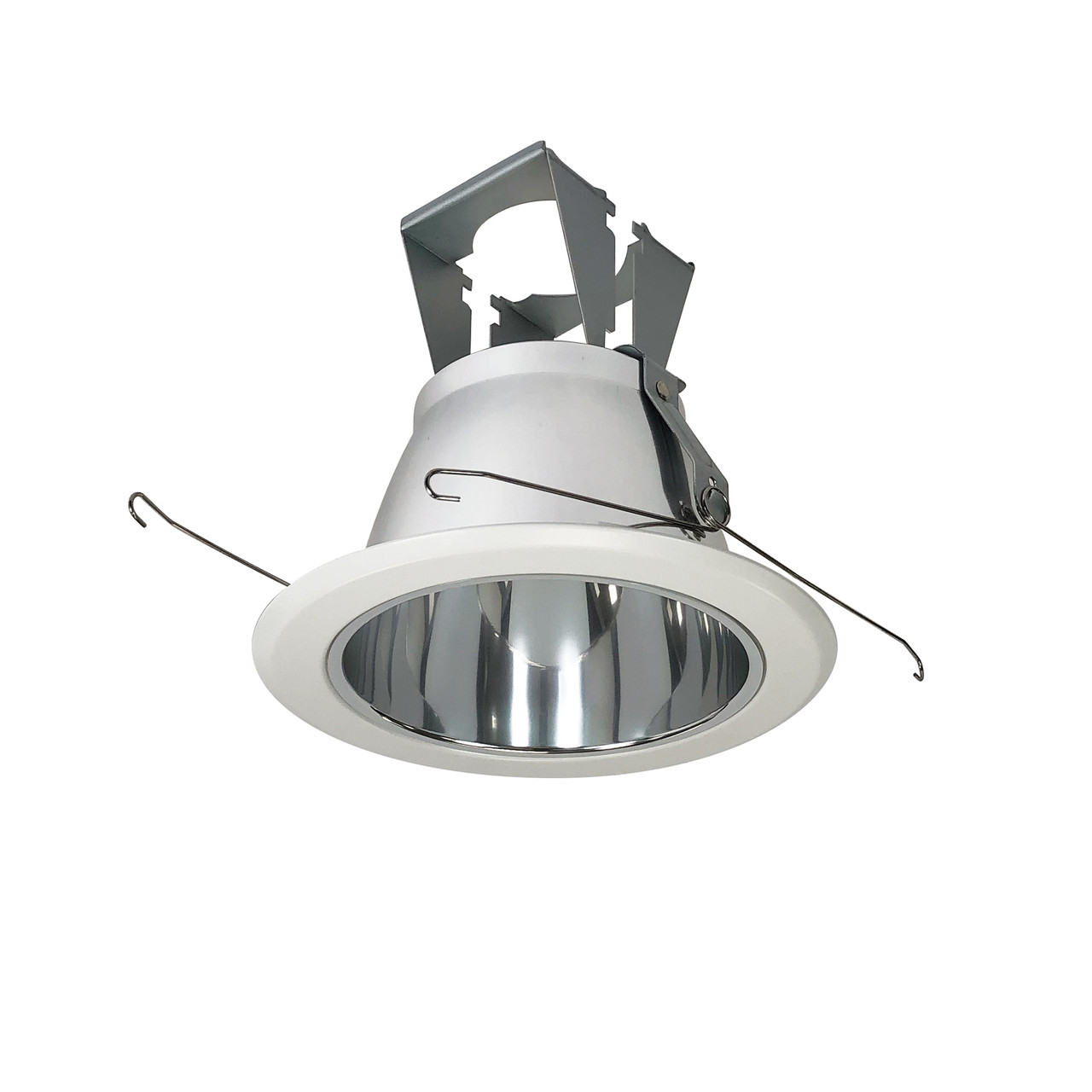

Product: NT-5020C 5" Specular Reflector with White Ring
Brand: Nora Lighting
Finish: Specular Chrome Reflector / White Metal Ring
Lamp Compatibility: 75W BR30 or PAR30 max
Mounting: “V” torsion springs (included)
Free shipping on orders over $250
Product Benefits
- High grade reflector ensures crisp, efficient light output
- Specular interior minimizes glare and enhances illumination
- Secure mounting using torsion springs for easy installation
- Damp location rated when used with compatible housings
Key Features
- Trim Diameter: 6-1/2"
- Reflector Type: Specular chrome finish
- Outer Ring: White metal
- Mounting: Dual “V” torsion springs (replacement NRA-86 available)
- Compatibility: 5" line voltage housings from Nora Lighting
- Listing: cULus Listed for Damp Locations
Technical Specifications
| Compatibility & Ratings | |
|---|---|
| Trim Size | 5" |

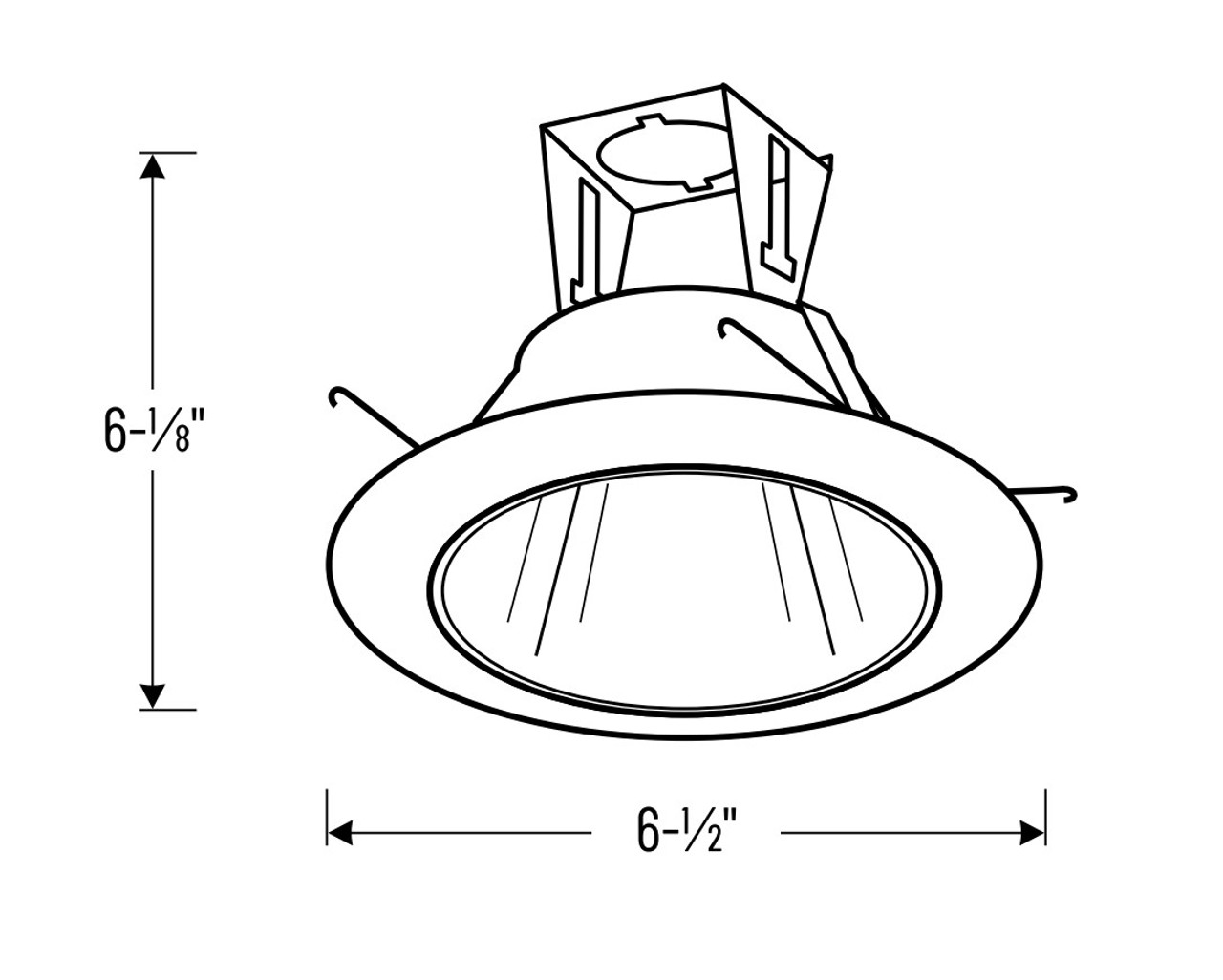

| Outer Diameter | 6-1/2" |
| Compatible Lamps | 75W BR30 / PAR30 Max |
| Mounting Method | “V” torsion spring clips |
| Location Rating | Damp Location (when paired with approved housing) |
Ideal Applications
- Living rooms, kitchens, and hallways
- Commercial or hospitality lighting
- Retrofit upgrades or new construction using 5" housing
Installation Tips
- Ensure fixture is paired with compatible 5" Nora housing (IC or Fire-Rated models)
- Insert the “V” torsion springs securely into the housing brackets
- Only use lamps up to 75W BR30 or PAR30
- Do not exceed wattage or use incompatible bulbs
Frequently Asked Questions
Q: What type of lamps can be used with the NT-5020C?
A: It is compatible with 75W maximum BR30 or PAR30 lamps.
Q: Is this trim suitable for use in bathrooms?
A: Yes, it is rated for damp locations when installed with compatible housing.
Q: How does the trim mount into the ceiling?
A: It uses two “V” torsion springs that clip securely into the housing frame.
Q: Can I get replacement torsion springs?
A: Yes, replacement part number is NRA-86.
Q: What housing is compatible with this trim?
A: Nora models such as NHIC-501QAT, NHRIC-504QAT, and NFBIC-5INCATA are approved for use.
