Product Description

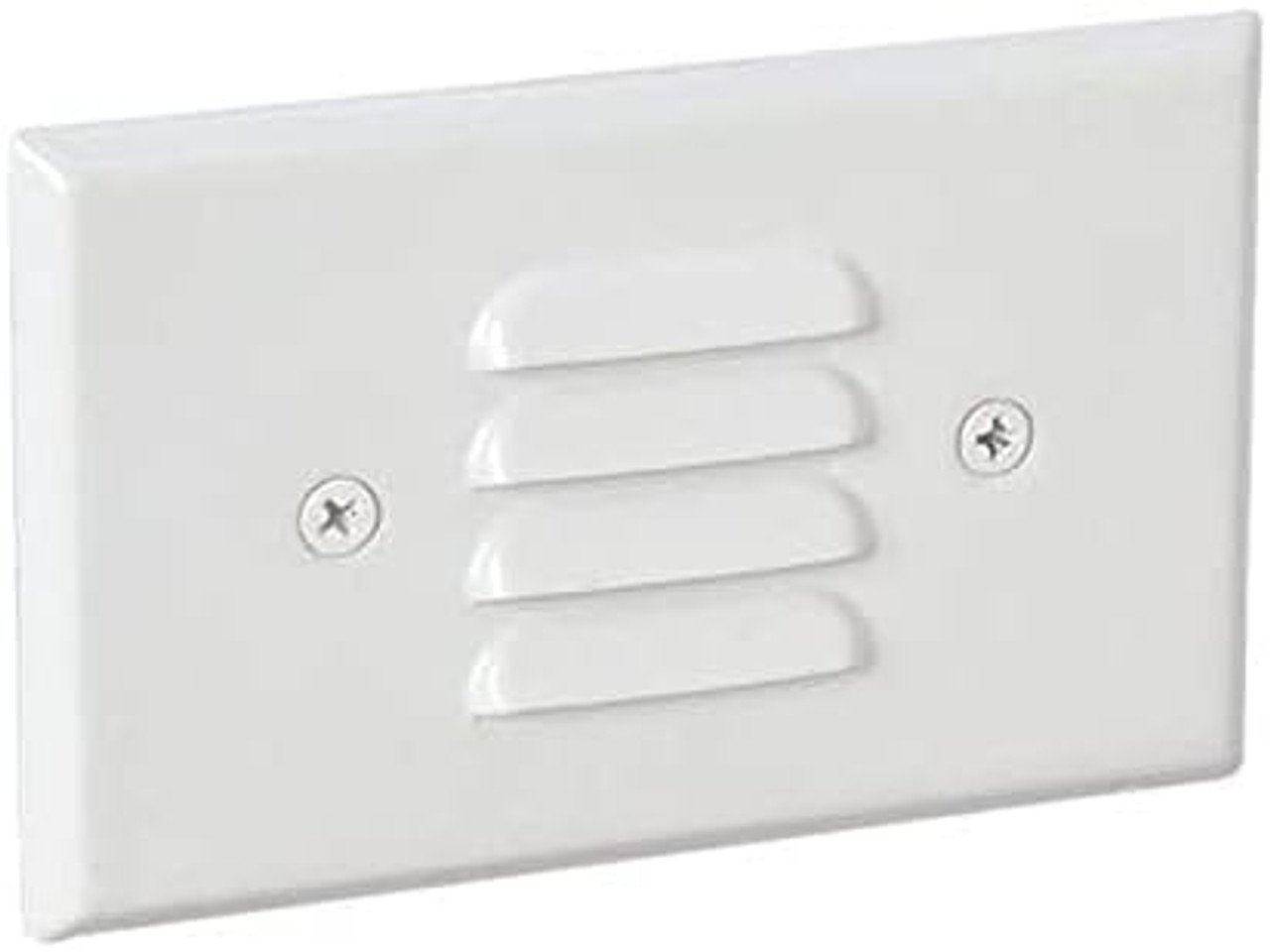

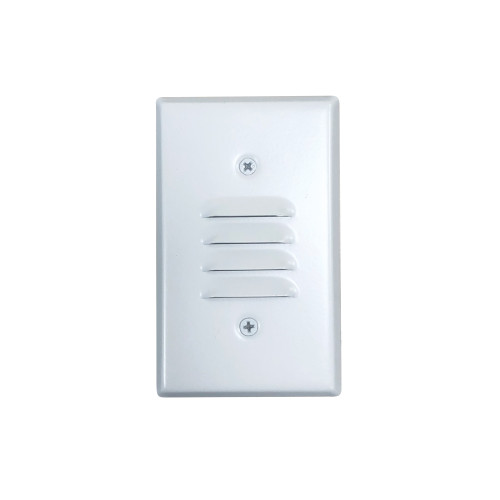

NSW-6619W Mini LED Step Light W/ Horizontal & Vertical Louver Face Plates by Nora Lighting is a compact, energy-efficient fixture designed for recessed installation in standard single gang switch boxes. With a heavy-duty louvered faceplate offering both horizontal and vertical louvers, this step light is perfect for hallways, stairways, and entrances, delivering subtle illumination with low energy consumption and long-lasting performance.
Brand: Nora Lighting
Wattage: 1W
Lumens: 19lm
Color Temperature: 2700K
Voltage: 120VAC
Mounting: Recessed in single gang box
Faceplate: Louver with horizontal and vertical slots
Finish Options: White, Brushed Nickel, Bronze
Listings: cULus Listed for Wet Locations
Warranty: 5-Year Limited
Free shipping on orders over $250
Product Benefits
- Provides safe, low-glare illumination for hallways, stairways, and wall bases
- Low-profile design fits easily into standard single gang switch boxes
- Includes both horizontal and vertical louvered faceplates for customized lighting
- Ideal for indoor or wet location applications thanks to cULus listing
Key Features
- 1W AC LED with no external driver required
- Sturdy galvanized steel housing for long-term durability
- 90+ CRI for accurate color rendering
- Faceplate options include tempered glass lens or dual-louver design
- Rated for wet locations with a 5-year limited warranty
Specifications
| Technical Specs | |
|---|---|
| LED Wattage | 1W |
| Voltage | 120VAC |
| Dimming | Non-Dimmable |
| Physical Specs | |
|---|---|
| Installation | Standard single gang switch box |
| Housing | Galvanized steel |
| Faceplate | Horizontal and vertical louver included |
| Finish Options | White (W), Brushed Nickel (BN), Bronze (BZ) |
| Performance Specs | |
|---|---|
| Lumens | 19 lm |
| Color Temperature | 2700K |
| CRI | 90+ |
| Life Expectancy | 30,000 hours at L70 |
| Compliance & Safety | |
|---|---|
| Listings | cULus Listed for Wet Locations |
| Warranty | 5-Year Limited |
Application Examples
- Indoor residential hallways and stairwells
- Apartment complexes and condos
- Commercial building corridors
- Wall bases in hospitality or healthcare environments
Installation Tips
- Ensure power is turned off before installation
- Mount fixture into a standard single gang switch box
- Secure internal brackets before connecting power
- Use included faceplate—select horizontal or vertical orientation as needed
- Do not install in areas with extreme temperatures or high moisture without proper sealing
Frequently Asked Questions
Is the NSW-6619W compatible with dimmers?
No, this model is non-dimmable due to its integrated AC LED driver-free design.
Can this step light be installed outdoors?
Yes, it is cULus Listed for Wet Locations, making it suitable for covered outdoor environments.
What finishes are available?
The NSW-6619W is available in White, Brushed Nickel, and Bronze to match various décor styles.
How long does the LED module last?
It offers a life expectancy of 30,000 hours at L70, minimizing the need for maintenance or replacements.
What’s included with the louvered faceplate?
It comes with both a horizontal and a vertical louver, giving you flexibility during installation.
What type of electrical box is required?
The unit fits standard single gang switch boxes, making it easy to retrofit in most locations.
Is the unit energy-efficient?
Yes, it operates at only 1 watt and emits 19 lumens, perfect for subtle pathway or accent lighting.
Can I use it in a bathroom or spa area?
Yes, as long as the area is properly ventilated and the fixture is not directly exposed to water jets.
