Product Description

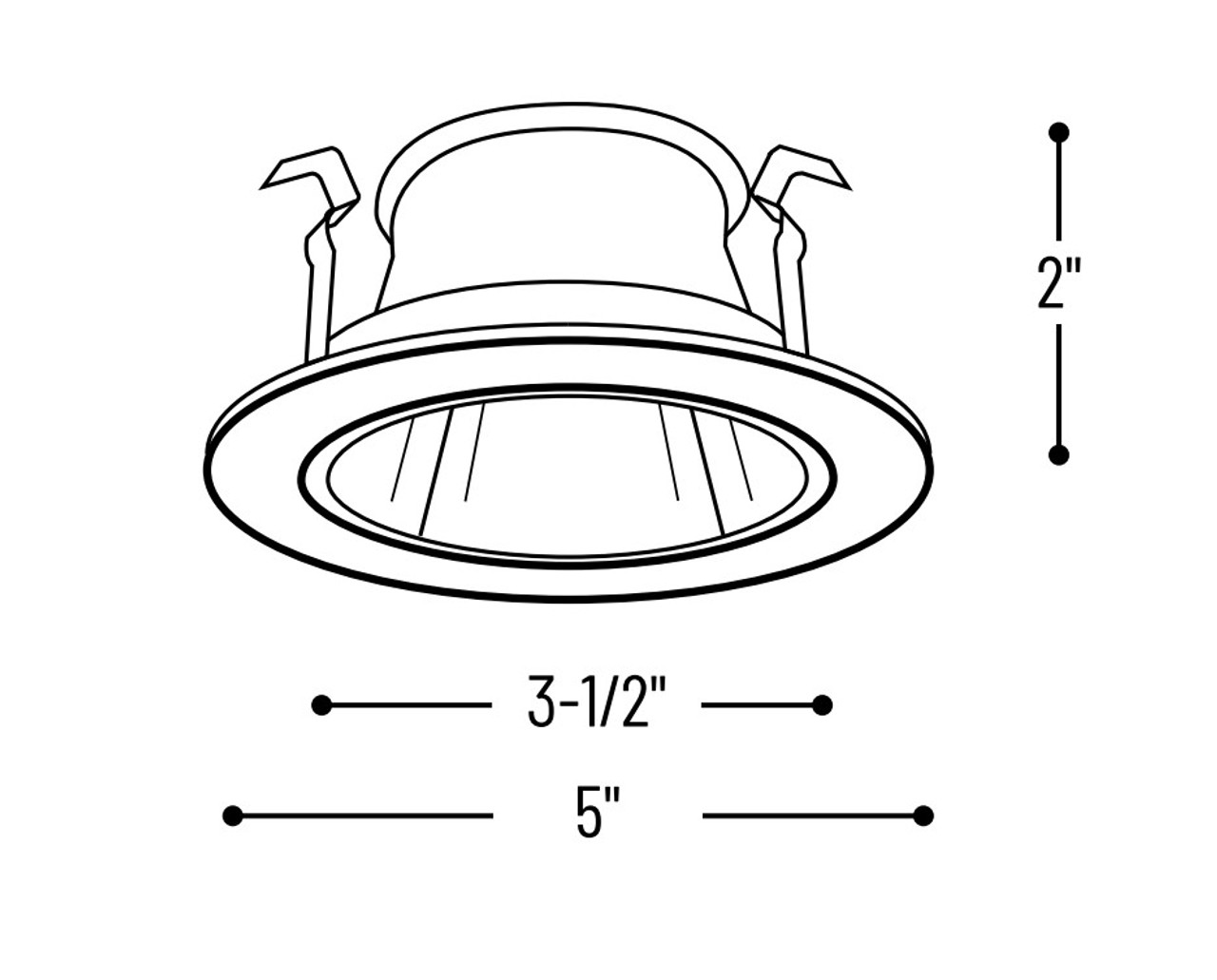

The NS-46 from Nora Lighting is a 4" specular white reflector with an elegant white metal trim, offering both architectural appeal and high-grade optical performance. Precision spun from 0.050 aluminum, this reflector is designed for both line voltage and GU24 housings and is suitable for damp locations when used with compatible Nora housings.
- Brand: Nora Lighting
- Model: NS-46
- Type: 4" Reflector with Metal Trim
- Finish: Specular White Reflector with White Trim Ring
- Material: 0.050 Aluminum
- Free shipping on orders over $250
Why Choose the NS-46 Reflector Trim?
- High-quality aluminum construction ensures long-lasting performance
- Specular white finish enhances brightness and clean appearance
- Compatible with a variety of Nora housings for maximum installation flexibility
- Secure mounting with built-in spring clips
Key Features
- Material: Precision spun 0.050 aluminum high-grade reflector
- Mounting: Equipped with three spring clips for secure housing attachment
- Finish: Specular white reflector with white metal ring for modern ceiling aesthetics
- Compatibility: Line voltage and GU24 housings
- Installation: Easy to install in standard 4" recessed housings
Specifications
Technical Specs
| Trim Size | 4" |
| Material | Aluminum reflector, metal ring |
| Finish | Specular White Reflector with White Metal Trim |
| Mounting | Spring clips (3 included) |
Compatible Housings
| Type | Model | Max Wattage |
|---|---|---|
| Line Voltage | NS-401QAT, NSIC-401QAT, NSR-404QAT, NSRIC-404QAT | 50W R20/PAR20 |
| Line Voltage | NS-401AT/IC | 15W R20/PAR20 |
| Line Voltage (Fire Rated) | NFBIC-4INCATA | 35W R20/PAR20 |
| GU24 | NHIC-4G24AT, NHRIC-4G24AT | 26W GU24 |
Compliance & Listings
| Certifications | cULus Listed for Damp Locations (when used with compatible housing) |
Application Examples
- General residential downlighting
- Commercial ceiling grid lighting systems
- Retail and hospitality spaces requiring sleek design
- Retrofit or new construction recessed installations
Installation Tips
- Ensure housing is compatible with trim type and wattage rating
- Press spring clips into housing slots for a secure fit
- Use with R20 or PAR20 lamps as specified
- Pair with GU24 base models for energy code compliance
Frequently Asked Questions
Q: What size housing does the NS-46 trim fit?
A: The NS-46 is designed for 4" housings.
Q: Is the reflector suitable for damp locations?
A: Yes, when paired with compatible Nora housings, it is cULus Listed for damp locations.
Q: Can this be used in both new construction and remodel housings?
A: Yes, it is compatible with a wide range of Nora new construction and remodel housings.
Q: What is the reflector made of?
A: It is made from high-grade 0.050 precision-spun aluminum with a white specular finish.
Q: How does it mount into the housing?
A: The trim mounts securely using the included spring clips for a flush ceiling fit.
