Product Description

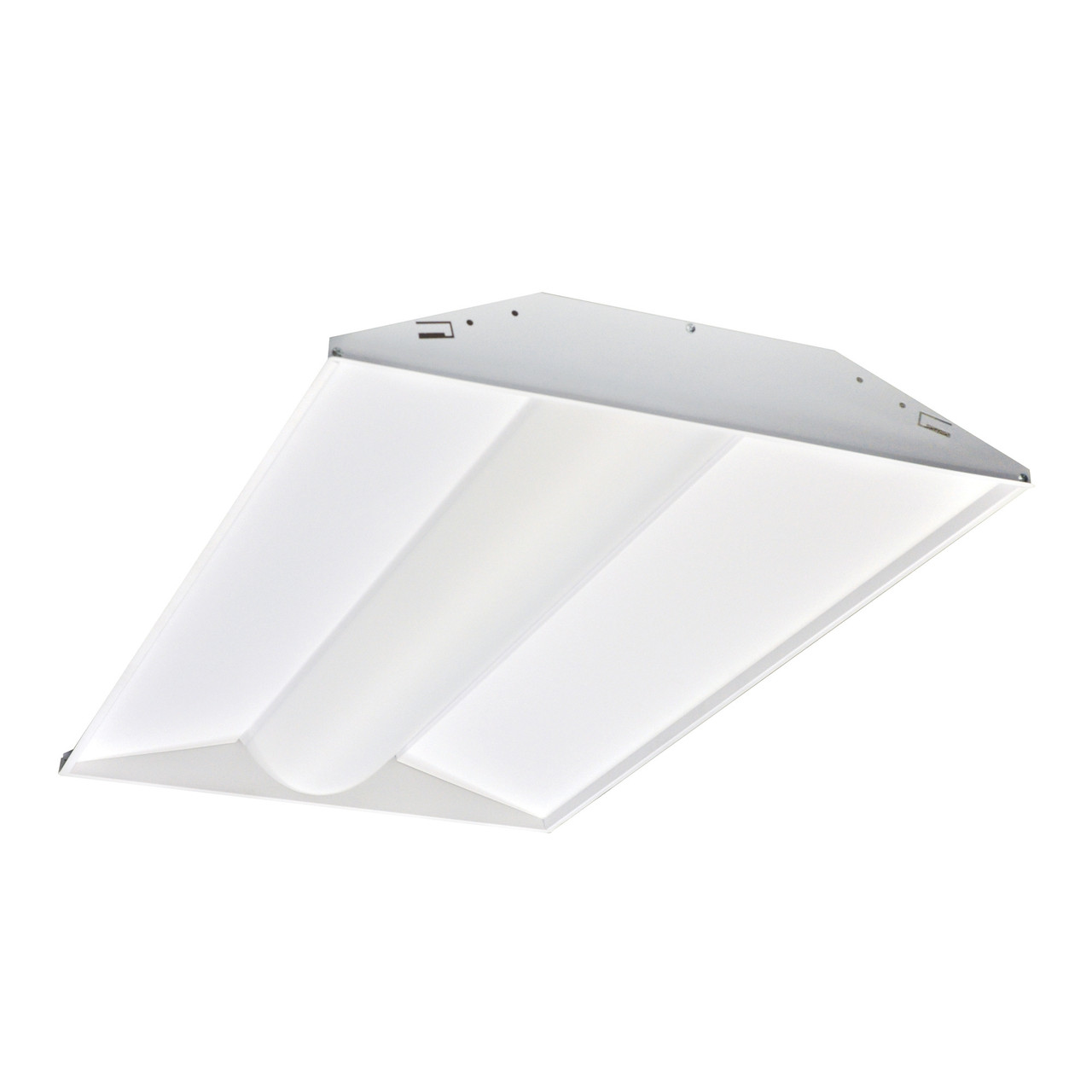

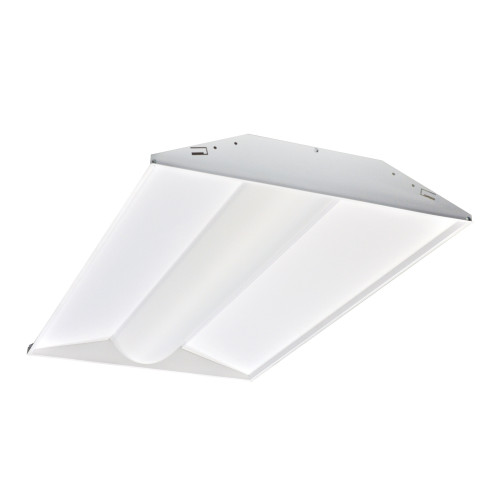

NPTCB-E24/30AW is a high-efficiency 2x4 LED Center Basket Troffer from Nora Lighting, offering smooth and uniform general illumination in a low-profile architectural design. This model delivers 6100 lumens at 3000K while consuming only 44W, making it ideal for commercial spaces such as offices, schools, hospitals, and retail environments. Featuring a polycarbonate diffused lens, the troffer reduces glare and ensures balanced light output across the space.
| Product Summary | |
|---|---|
| Brand | Nora Lighting |
| Model | NPTCB-E24/30AW |
| Size | 2' x 4' |
| Lumen Output | 6100 lumens |
| Wattage | 44W |
| Color Temperature | 3000K |
| Finish | White (Matte Powder Coat) |
| Free Shipping | Free shipping on orders over $250 |
Why Choose the NPTCB-E LED Troffer?
- Delivers high lumen output (6100 lm) with low energy consumption (44W)
- Glare-free illumination with polycarbonate diffused white lens
- Shallow housing design for quick and easy installation
- 0-10V dimmable driver for customized light levels
Key Features
- 2' x 4' recessed LED troffer with center basket design
- 3000K color temperature offers soft, warm white light
- 85+ CRI for better color rendering in indoor spaces
- Steel housing with matte white reflective finish for uniformity
- Integral dimmable driver (0-10V) down to 10%
- Emergency option available with remote test switch
Specifications
Technical Specs
| Input Voltage | 120–277V |
| Wattage | 44W |
| Lumen Output | 6100 lm |
| Color Temperature | 3000K |
| CRI | 85+ |
| Dimming | 0-10V down to 10% |
Certifications & Listings
| Listings | cULus Listed for Damp Locations, DLC Listed, RoHS Compliant |
| Warranty | 5-Year Limited Warranty |
Application Examples
- Commercial offices and conference rooms
- Schools and educational facilities
- Hospitals and healthcare corridors
- Retail stores and showrooms
Installation Tips
- Recess mount in standard grid ceilings
- Optional emergency battery backup with remote test switch available
- Use 0-10V dimmer for energy savings and flexible light control
- Ensure ambient temperature remains between 0°C and 45°C
Frequently Asked Questions
Q: What is the delivered light output for this model?
A: The NPTCB-E24/30AW delivers approximately 6100 lumens using 44W of power:contentReference[oaicite:0]{index=0}.
Q: Is this fixture dimmable?
A: Yes, it includes a 0-10V dimmable driver that dims down to 10%.
Q: What material is the lens made from?
A: The lens is made from polycarbonate and is designed to diffuse light evenly while reducing glare:contentReference[oaicite:1]{index=1}.
Q: Can I use this in damp locations?
A: Yes, it is cULus Listed for use in damp locations.
Q: Does this model support emergency lighting?
A: An optional emergency battery with remote test switch can be added for 90-minute backup operation.
