Product Description

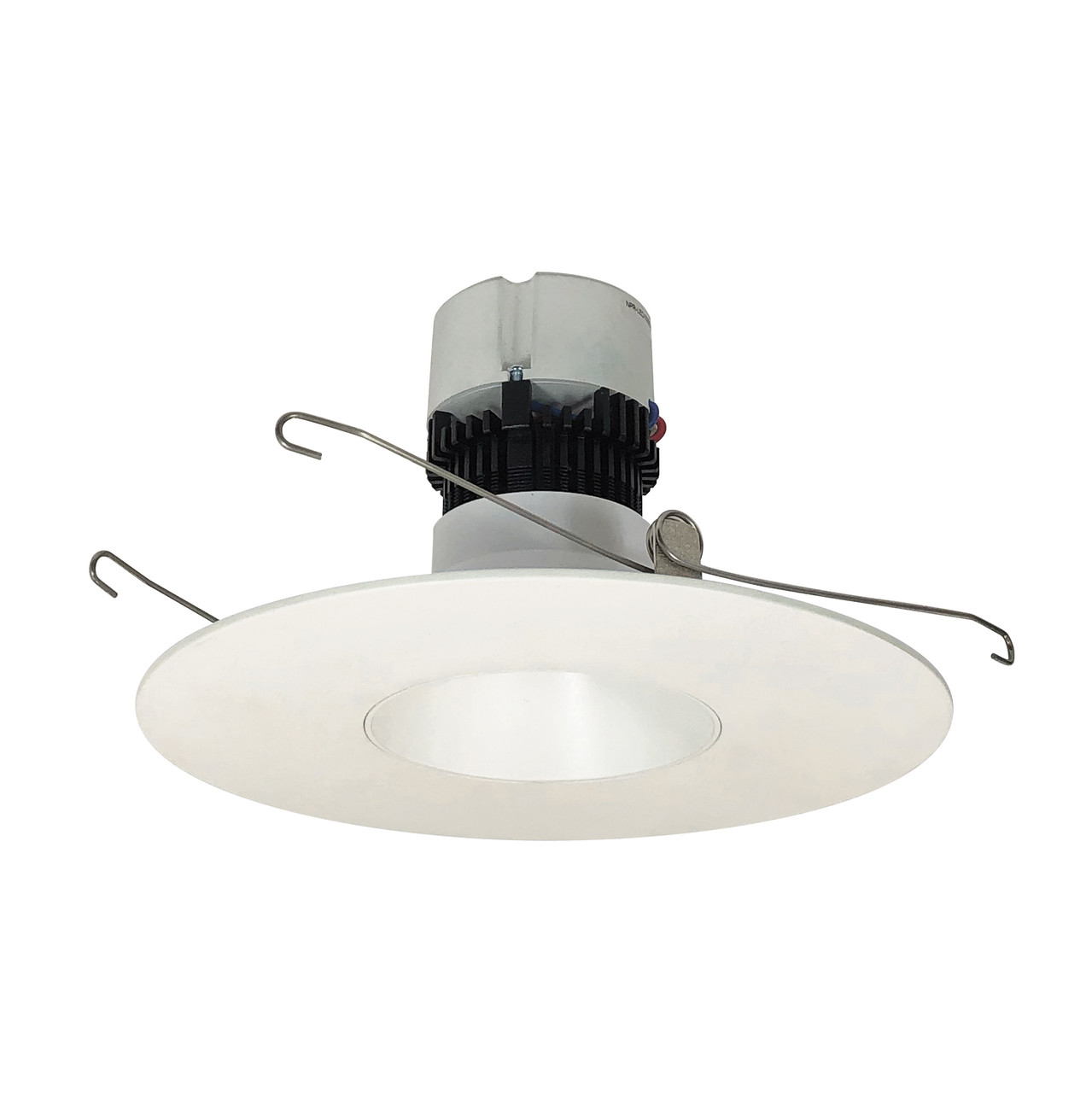

NPR-56RNDCCDXWW is a premium 5"/6" Pearl LED Round Retrofit Reflector from Nora Lighting, designed for both performance and aesthetics. With Comfort Dim technology and easy retrofit installation, this luminaire is ideal for residential and commercial recessed lighting applications.
Brand: Nora Lighting
Model: NPR-56RNDCCDXWW
Type: LED Round Retrofit Reflector
Lumen Output: 800lm (Comfort Dim)
Wattage: 12W
Voltage: 120V
Color Temperature: 2000K–3100K (Warm Dimming)
Finish: White / White
Free shipping on orders over $250
Benefits
- Warm dimming Comfort Dim technology enhances ambiance by shifting from 3100K to 2000K.
- Easy retrofit installation with medium base socket adapter included.
- ENERGY STAR certified for efficient energy usage and savings.
- Compatible with most 5" and 6" housings, making it ideal for renovations and upgrades.
Key Features
- Comfort Dim: Simulates the warmth of incandescent dimming
- Field Changeable Optics: Spot (29°), Narrow Flood (44°), and Flood (61°) included
- High CRI: 90+ for excellent color rendering
- Triac / ELV Dimmable: Works with leading/trailing edge dimmers
- Wet Location Rated: Suitable for use in showers and outdoor soffits
- 50,000 Hours Lifetime: Maintenance-free operation
Technical Specifications
| Attribute | Value |
|---|---|
| Input Voltage | 120V |
| Wattage | 12W |
| Lumen Output | 800lm (Comfort Dim) |
| Color Temperature | 2000K–3100K |
| CRI | 90+ |
Physical Specifications
| Attribute | Value |
|---|---|
| Dimensions | 7-1/2" diameter x 3-1/4" height |
| Trim Type | Round Reflector with Round Aperture |
| Finish | White / White (WW) |
Performance Specifications
| Beam Spread | Angle |
|---|---|
| Spot | 29° |
| Narrow Flood | 44° |
| Flood | 61° |
Applications
- Residential recessed lighting upgrades
- Commercial lighting retrofits
- Hospitality environments
- Retail displays and ambient lighting
- Bathrooms and wet-rated ceiling applications
Installation Tips
- Ensure power is turned off before installation
- Use included medium base socket adapter for easy retrofit
- Secure fixture using built-in friction blades
- Compatible with Triac or ELV dimmers – test compatibility before final installation
- For GU24 housings, use optional GU24 adapter (NRA-212SM)
Frequently Asked Questions
Q: What is Comfort Dim technology?
A: Comfort Dim simulates the warm glow of incandescent lighting by dimming from 3100K to 2000K, enhancing comfort and ambiance.
Q: Is the NPR-56RNDCCDXWW suitable for wet locations?
A: Yes, it is cULus classified for wet locations, making it ideal for showers or exterior soffits.
Q: What type of dimmer switches are compatible?
A: This fixture supports Triac (leading edge) and ELV (trailing edge) dimming systems.
Q: Can this retrofit be used in non-Nora housings?
A: Yes, it is designed to fit most 5" and 6" IC or Non-IC housings, not limited to Nora brand.
Q: What is included in the box?
A: The fixture, medium base socket adapter, and three interchangeable optics (spot, narrow flood, flood) are included.
Q: Does this model support GU24 sockets?
A: Yes, but a GU24 socket adapter (NRA-212SM) must be specified separately.
Q: What is the expected lifespan of the LED module?
A: The fixture is rated for 50,000 hours of operation at L70 standard.
Q: Are decorative accessories available?
A: Yes, optional accessories such as translucent collars, opaque snoots, and hex cell louvers are available.
