Product Description
NPR-56RNDCCDXMPW 5"/6" Pearl LED Round Retrofit Reflector from Nora Lighting delivers smooth, warm-dimming performance in a sleek, energy-efficient retrofit design. This 12W Comfort Dim model provides 800 lumens of output and a high 90+ CRI, tuning seamlessly from 3100K down to 2000K for cozy, incandescent-like ambience. Ideal for residential and commercial retrofit applications, it combines advanced optical engineering with elegant design for modern lighting upgrades.
- Brand: Nora Lighting
- Series: Pearl Retrofit Comfort Dim
- Wattage: 12W
- Lumen Output: 800 lumens (Comfort Dim mode)
- Color Temperature: 2000K–3100K (variable warm dim)
- CRI: 90+
- Voltage: 120V
- Finish: Matte Powder White Reflector / Matte Powder White Flange
- Dimming: Triac (leading edge) or ELV (trailing edge)
- Beam Options: Spot 29°, Narrow Flood 44°, Flood 61°
- Mounting: Friction blades; includes socket adapter
- Certifications: ENERGY STAR, cULus Wet Location, Title 24 JA8-2022
- Warranty: 5-Year Limited Warranty
Free shipping on orders over $250
Product Benefits
- Comfort Dim technology: Gradually warms light color from 3100K to 2000K, replicating the feel of natural incandescent dimming.
- Energy-efficient retrofit: Consumes only 12W while providing high-lumen performance suitable for general or accent lighting.
- Field-changeable optics: Easily adjust between spot, narrow flood, and flood distributions for custom lighting effects.
- Versatile retrofit design: Fits both 5" and 6" recessed housings from Nora and other major brands.
Key Features
- Warm dimming range: 3100K to 2000K smooth transition for ambient and decorative lighting.
- High color fidelity: 90+ CRI ensures natural, vibrant illumination.
- Optical control: Includes 3 beam spreads with optional TIR and frosted optics available.
- Durable construction: Die-cast aluminum housing and heat sink for optimal thermal management.
- Long lifespan: 50,000-hour LED rated life (L70).
Specifications
Technical Specs
| Input Voltage | 120V AC |
| Lumen Output | 800 lumens (Comfort Dim) |
| Wattage | 12 watts |
| Color Temperature Range | 2000K–3100K Comfort Dim |
| Color Rendering Index (CRI) | 90+ |
| Dimming Type | Triac (leading edge) or ELV (trailing edge) |
Physical Specs

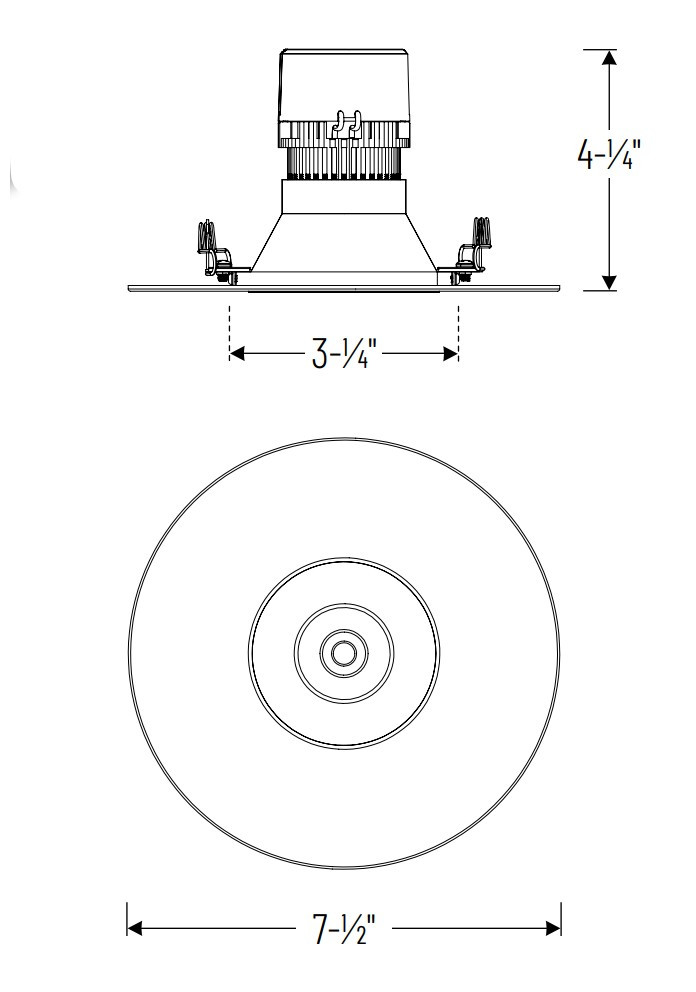

| Dimensions | 7.5" diameter × 4.25" height |
| Mounting | Friction blades; medium base socket adapter included |
| Construction | Die-cast aluminum trim and heat sink |
Performance Specs
| Operating Temperature | 0°C to 25°C |
| Lifespan | 50,000 hours (L70) |
| Beam Angles | 29° Spot / 44° Narrow Flood / 61° Flood |
Compliance & Safety
| Certifications | cULus Wet Location, ENERGY STAR, RoHS, California Title 24 JA8-2022 |
| Warranty | 5-Year Limited Warranty |
Applications
- Residential lighting: Perfect for living rooms, kitchens, and bedrooms requiring soft dimmable light.
- Hospitality lighting: Ideal for restaurants and lounges with mood-adjustable lighting needs.
- Retail and commercial spaces: Creates inviting light quality for product or architectural highlights.
- Retrofit projects: Designed for upgrading 5" or 6" housings without replacing the entire fixture.
Installation Tips
- Compatible housings: Works with most 5" and 6" IC and Non-IC housings by Nora and others.
- Easy retrofit: Use the included medium base socket adapter for fast installation.
- GU24 option: Use the GU24 socket adapter (NRA-212SM) for GU24 housings.
- Accessory ready: Supports hex louver, translucent collar, or snoot for light control.
- Maintain ambient temperature: Keep environment below 25°C for best performance and longevity.
Frequently Asked Questions
What is Comfort Dim?
Comfort Dim technology warms the LED color temperature from 3100K at full brightness down to 2000K when dimmed, replicating incandescent glow.
Is the NPR-56RNDCCDXMPW dimmable?
Yes, it supports Triac and ELV dimming for smooth, flicker-free control.
Can it be used in wet locations?
Yes, it is cULus classified for wet locations, suitable for bathrooms and covered outdoor areas.
Does this retrofit include optics?
Yes, spot, narrow flood, and flood optics are included and can be field-changed easily.
What is the lifespan of the fixture?
It offers a 50,000-hour rated life at L70, ensuring years of maintenance-free operation.
Is it Title 24 compliant?
Yes, certified to meet California Title 24 JA8-2022 high efficacy requirements.
Can I install it in existing housings?
Yes, it’s designed to retrofit directly into existing 5" or 6" IC and Non-IC housings without modification.
