Product Description

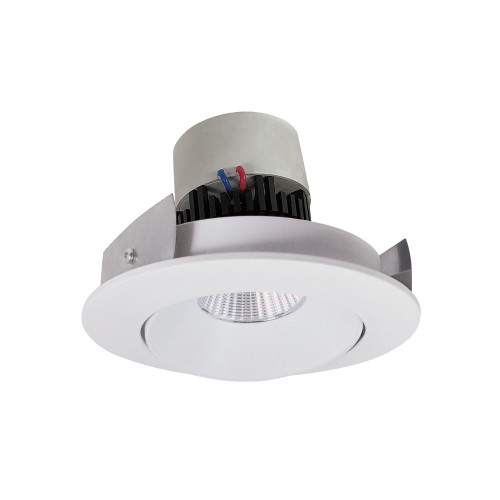

NPR-4RC35XMPW 4" Pearl LED Round Adjustable Cone Retrofit 1000LM / 12W 3500K by Nora Lighting is a high-performance LED retrofit downlight designed to upgrade existing 4" recessed housings with precise directional lighting and excellent visual comfort. Featuring a die-cast adjustable cone for improved visual cutoff and beam control, this retrofit delivers powerful illumination while maintaining energy-efficient operation. With 90+ CRI color rendering, integrated dimming capability, and multiple field-changeable optics, the Pearl LED retrofit provides flexible lighting performance for residential and commercial applications.
Product Summary
- Brand: Nora Lighting
- Model: NPR-4RC35XMPW
- Type: 4" LED Adjustable Cone Retrofit Downlight
- Wattage: 12W
- Lumen Output: ~1000–1250 lm
- Color Temperature: 3500K
- Color Rendering: 90+ CRI
- Voltage: 120V
- Dimming: TRIAC / ELV dimmable
- Optics: Spot, Narrow Flood, and Flood (included)
- Mounting: Retrofit for 4" recessed housings
- Finish: Specular Clear Reflector / Matte Powder White Flange
- Warranty: 5-Year Limited Warranty
- Shipping: Free shipping on orders over $250
Product Benefits
- Directional adjustable lighting with die-cast cone allows precise aiming to highlight architectural features, artwork, or task areas.
- Energy-efficient LED retrofit provides up to 1250 lumens while consuming only 12W, replacing higher-wattage traditional lamps.
- Flexible beam control with three included optics—spot, narrow flood, and flood—to tailor lighting distribution to the space.
- Simple retrofit installation using the included medium base socket adapter for quick upgrades to existing 4" recessed housings.
Key Features
- High Output Performance: Delivers up to 1250 lumens from a 12W LED module.
- Excellent Color Quality: 90+ CRI ensures accurate and vibrant color rendering.
- Adjustable Aiming: Adjustable cone provides up to 35° of aiming depending on housing type.
- Field Changeable Optics: Includes spot, narrow flood, and flood optics for versatile lighting control.
- Integrated Dimming: Compatible with TRIAC and ELV dimming systems.
- Durable Construction: Heat-dissipating die-cast aluminum trim and heat sink.
- Retrofit Adapter Included: Medium base screw-socket adapter allows quick installation.
- Long LED Life: 50,000-hour L70 rated lifespan.
Specifications
Technical Specifications
| Product Type | LED Recessed Retrofit Downlight |
| Size | 4" |
| Input Voltage | 120V |
| Input Wattage | 12W |
| Operating Temperature | 0°C to 25°C |
| Lifetime | 50,000 Hours (L70) |
Performance Specifications
| Lumen Output | Up to 1250 lm |
| Color Temperature | 3500K |
| Color Rendering Index | 90+ CRI |
| Dimming | TRIAC (Leading Edge) / ELV (Trailing Edge) |
| Optics Included | Spot, Narrow Flood, Flood |
Physical & Construction
| Trim Type | Round Adjustable Cone |
| Finish | Specular Clear Reflector / Matte Powder White Flange |
| Construction | Die-cast aluminum trim with integrated heat sink |
| Mounting | Friction blade mounting for recessed housings |
| Adapter | Medium base socket adapter included |
Compliance & Certifications
| Listings | cULus Classified |
| Location Rating | Damp Location |
| Energy Certification | ENERGY STAR® Certified |
| California Title 24 | JA8-2022 High Efficacy Compliant |
| RoHS | RoHS Compliant |
| Warranty | 5-Year Limited Warranty |
Applications
- Residential recessed lighting upgrades
- Accent and directional lighting
- Retail and hospitality environments
- Architectural highlighting
- Kitchens, hallways, and living spaces
- Commercial interior lighting installations
Installation Tips
- Turn off power at the circuit breaker before installation.
- Remove the existing trim and lamp from the recessed housing.
- Install the included medium base socket adapter into the existing socket.
- Connect the retrofit module and secure the fixture using the friction blades.
- Select the desired optic before final installation to achieve the required beam spread.
- Ensure the fixture is securely seated and flush with the ceiling for best appearance.
Frequently Asked Questions
What housings are compatible with this retrofit?
This retrofit is designed for use in most standard 4" IC and Non-IC recessed housings manufactured by Nora Lighting and other compatible brands.
What optics are included with this fixture?
The fixture includes three interchangeable optics: spot, narrow flood, and flood, allowing installers to customize the beam spread.
Is the light adjustable?
Yes. The adjustable cone allows aiming of the light source, with up to 35° of adjustability depending on the housing type.
Is this fixture dimmable?
Yes. The integrated driver supports both TRIAC and ELV dimming systems.
What is the lifespan of the LED module?
The LED module is rated for approximately 50,000 hours at L70.
Is this fixture suitable for damp locations?
Yes. The retrofit is cULus classified for damp locations, making it suitable for bathrooms and similar environments.
Does this product qualify for energy efficiency standards?
Yes. The fixture is ENERGY STAR certified and compliant with California Title 24 JA8 high-efficacy requirements.
