Product Description

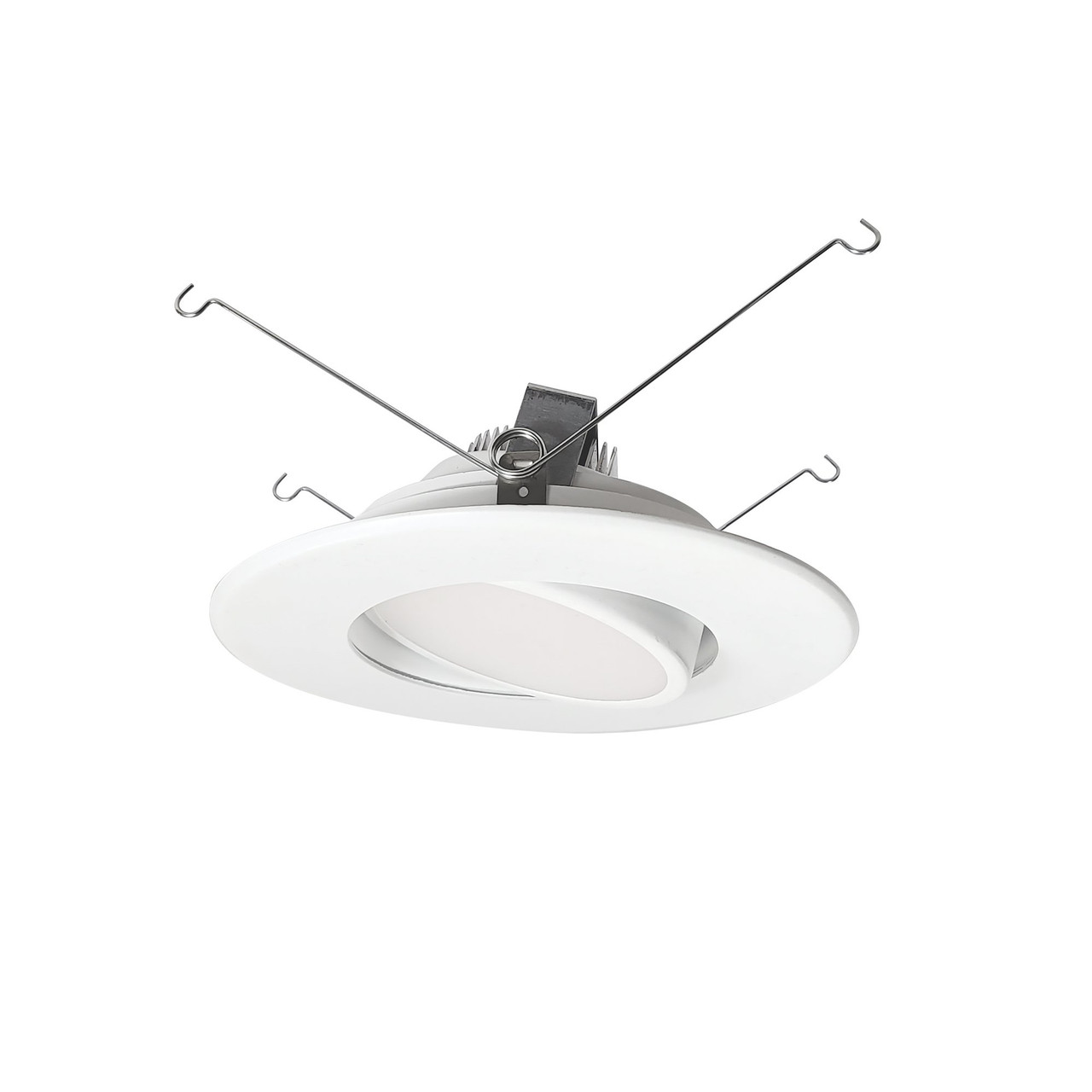

NOXAC-56RGTWWW 5"/6" AC Onyx Adjustable LED Retrofit with Selectable CCT from Nora Lighting is a sleek, driverless LED retrofit downlight designed for maximum flexibility in residential and light commercial applications. Built with spun aluminum construction and adjustable aiming, this retrofit delivers up to 1050 lumens with selectable color temperatures, making it ideal for upgrades where performance, adaptability, and clean aesthetics are required.
Quick Specs
- Output: Up to 1050 lm
- Wattage: 14.5W
- Voltage: 120VAC
- CCT: Selectable 2700K / 3000K / 3500K / 4000K / 5000K (Preset: 3000K)
- CRI: 90+ CRI
- Beam Spread: 96° Flood
- Dimming: Triac or ELV
- Adjustability: 40° tilt, 180° rotation
- Rating: cETLus Damp Location
Free shipping on orders over $250
Product Benefits
- One fixture, five color temperatures: Built-in selectable CCT allows easy field adjustment to match décor or task requirements.
- Flexible light aiming: Adjustable tilt and rotation provide precise directional control for accent or general lighting.
- Driverless AC LED design: Simplifies installation and improves long-term reliability.
- Easy retrofit solution: Designed to install quickly into most existing 5" and 6" recessed housings.
Key Features
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
- High output performance: Up to 1050 lumens from a 14.5W source
- Adjustable optics: 40° tilt with 180° rotation
- High color quality: 90+ CRI
- Dimming compatibility: Works with Triac or ELV dimmers
- Construction: Spun aluminum reflector with unitized thermal management
- Retrofit ready: Includes medium base socket adapter for standard housings
Specifications
Technical
| Input Voltage | 120VAC |
| Wattage | 14.5W |
| Dimming | Triac or ELV |
Performance
| Lumen Output | Up to 1050 lm |
| Color Temperature | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ CRI |
| Beam Spread | 96° Flood |
Physical

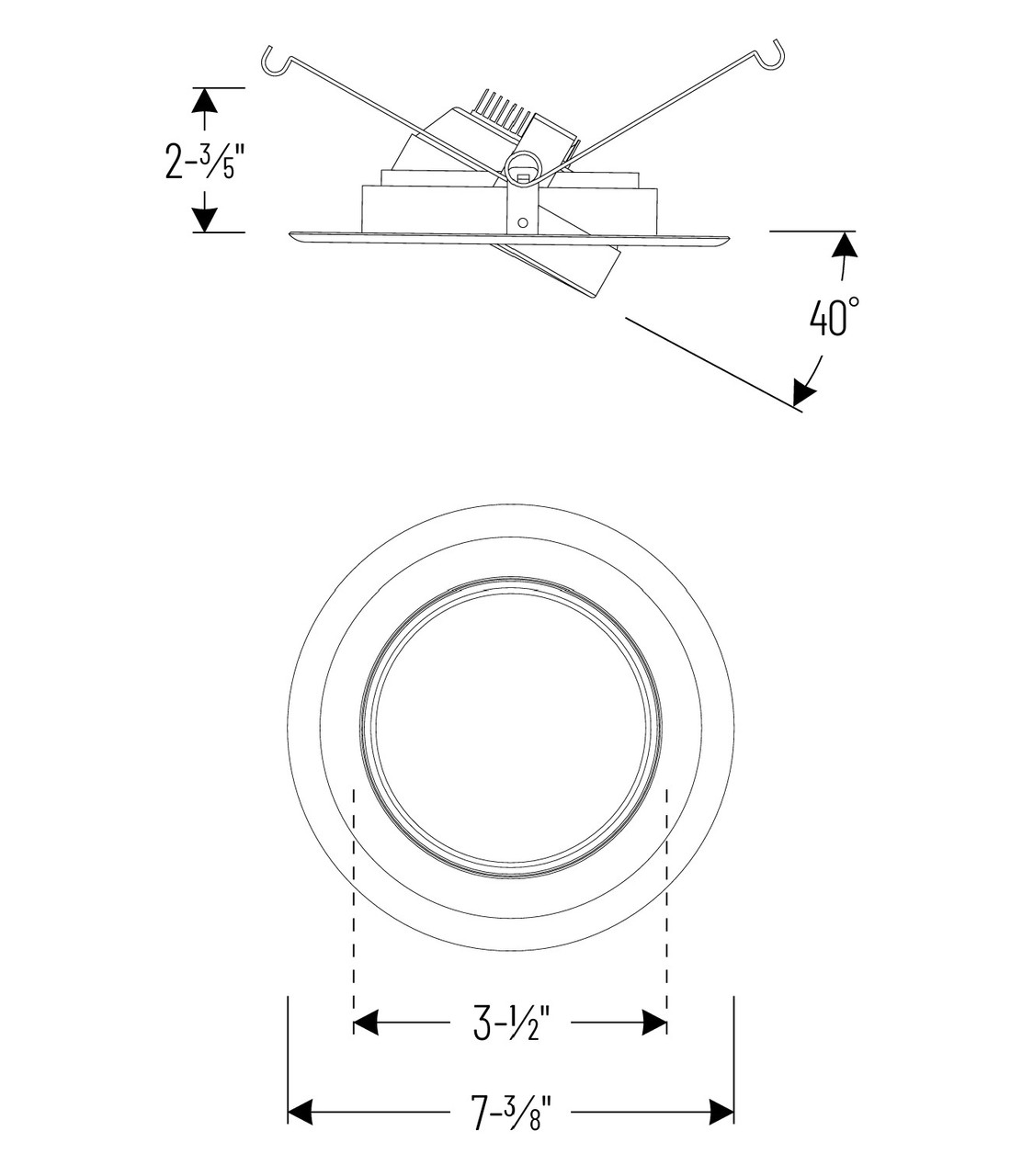

| Aiming | 40° tilt / 180° rotation |
| Housing Compatibility | Most 5" and 6" IC and Non-IC housings |
| Listings | cETLus Damp Location, FCC compliant, Title 24 JA8-2022 |
| Warranty | 5-Year Limited Warranty |
Applications
- Residential retrofits: Living rooms, kitchens, bedrooms, and hallways.
- Accent lighting: Adjustable aiming for artwork, shelving, and architectural details.
- Multi-room installations: Selectable CCT simplifies specification across varied spaces.
- Damp locations: Suitable for bathrooms and covered indoor areas.
Installation Tips
- Select CCT before install: Set the 5-position sliding switch to the desired color temperature.
- Use included adapter: Medium base socket adapter allows quick retrofit into existing housings.
- Aim after mounting: Adjust tilt and rotation once energized to fine-tune light direction.
- Verify dimmer compatibility: Confirm Triac or ELV dimmer performance prior to final commissioning.
FAQ
What sizes of housings does this retrofit fit?
This retrofit is designed for use in most standard 5" and 6" recessed housings, including IC and Non-IC types.
Does this fixture require a separate LED driver?
No. It features a driverless AC LED design for simplified installation.
How do I change the color temperature?
A built-in 5-position sliding switch allows selection between 2700K, 3000K, 3500K, 4000K, and 5000K.
Is this retrofit dimmable?
Yes. It is compatible with both Triac and ELV dimmers.
What is the maximum light output?
The fixture delivers up to 1050 lumens depending on the selected color temperature.
Is it suitable for damp locations?
Yes. It is cETLus classified for indoor damp locations.
Does it meet California Title 24 requirements?
Yes. It is certified to the high efficacy requirements of California Title 24 JA8-2022.
