Product Description
The NOXAC-5632TWWW is a premium 5"/6" AC Onyx LED Retrofit Baffle featuring selectable color temperatures, up to 1150 delivered lumens, and exceptional energy efficiency. Designed for use with most 5" and 6" recessed housings, its sleek construction and deep regressed optics provide even, glare-free illumination.
Key Features
- Selectable color temperatures: 2700K, 3000K, 3500K, 4000K, or 5000K at 90+ CRI.
- Up to 1150 lumens of high-quality illumination.
- Dimmable AC LED: Compatible with Triac and ELV dimmers, dimming down to 5% or 10%.
- Medium base socket adaptor: Included for seamless retrofitting in 5" or 6" housings.
- ENERGY STAR certified and classified for wet locations.
- 5-year limited warranty for long-term reliability.
Specifications
- Input Voltage: 120V
- Wattage: 16.5W
- Lumen Output: Up to 1150 lumens
- Color Rendering Index (CRI): 90+
- Operating Temperature: Up to 35°C
- Certification: ENERGY STAR, cETLus, California Title 24 JA8-2022 compliant
- Dimensions: 5.25" x 7.375"
Installation Tips
- Ensure compatibility with your existing 5" or 6" IC and non-IC housings.
- Use the included medium base screw-socket adapter for quick installation.
- Optional GU24 socket adapter is available for GU24 housings.
- Check the dimmer compatibility list to achieve optimal dimming performance.
Frequently Asked Questions
Q: Can this retrofit baffle be used in wet locations?
A: Yes, it is classified for wet locations and ENERGY STAR certified.
Q: What is the maximum lumen output of this product?
A: The maximum output is 1150 lumens.
Q: Does this product support dimming?
A: Yes, it is dimmable down to 5% with ELV dimmers and 10% with Triac dimmers.
Q: Is it compatible with non-Nora housings?
A: Yes, it is compatible with most 5" and 6" IC and non-IC housings.

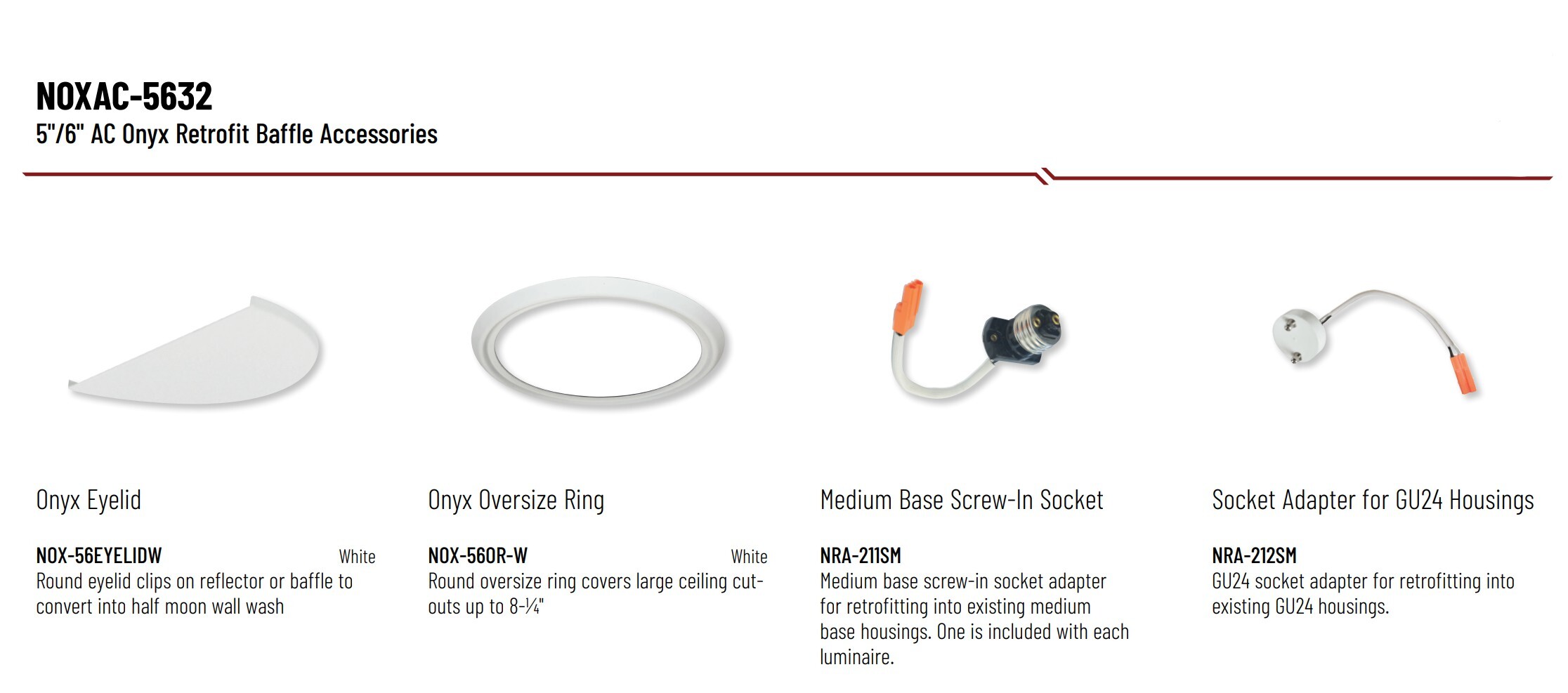

Q: What accessories are available for this product?
A: Accessories include a white eyelid, oversize ring, and GU24 socket adapter.
