Product Description

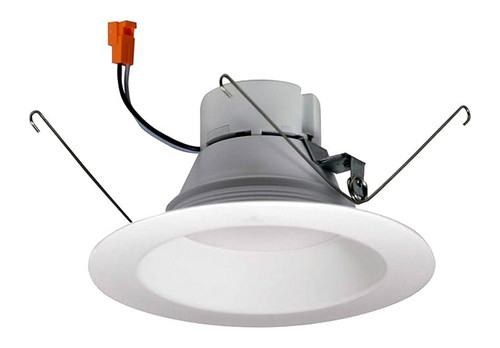

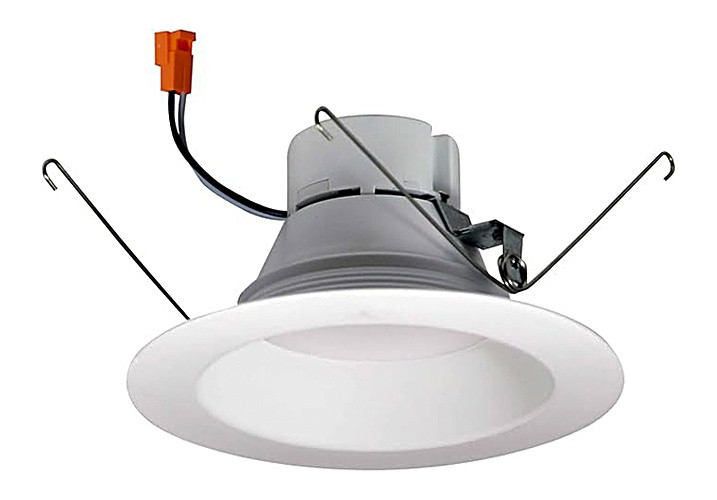

The NOXAC-5631TWWW is a versatile and energy-efficient 5" or 6" AC Onyx Retrofit Reflector, designed to provide sleek, glare-free illumination with deep regressed optics. Suitable for most 5" and 6" recessed housings, this reflector ensures even light distribution, making it an excellent choice for residential and commercial applications.
Key Features
- Up to 1150 delivered lumens for bright and efficient lighting.
- Multiple color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K at 90+ CRI.
- Dimmable AC LED with compatibility down to 5% using ELV or 10% using Triac dimmers.
- Includes medium base socket adaptor for easy retrofitting in 5" or 6" recessed housings.
- ENERGY STAR certified and classified for wet locations.
- 5-year limited warranty for added peace of mind.
Specifications
- Input Voltage: 120V 60Hz
- Wattage: 15.5W
- Lumen Output: Up to 1150 lumens
- Color Rendering Index (CRI): 90+
- Operating Temperature: 35°C max.
- Certification: ENERGY STAR, cETLus, California Title 24 JA8-2022 compliant
- Dimensions: 5.25" x 7.375"
Installation Tips
- Ensure compatibility with your existing 5" or 6" IC and non-IC housings.
- Use the included medium base screw-socket adapter for easy installation.
- Check the dimmer compatibility list for optimal dimming performance.
- For GU24 housings, use the optional GU24 socket adapter (NRA-212SM).
Frequently Asked Questions
Q: Can this retrofit reflector be used in wet locations?
A: Yes, it is classified for wet locations and is ENERGY STAR certified.
Q: Does this product support dimming?
A: Yes, it is dimmable down to 5% with ELV dimmers and 10% with Triac dimmers.
Q: What is the expected lifespan of this LED reflector?
A: The reflector is designed for long-lasting performance, supported by a 5-year limited warranty.
Q: Is it compatible with non-Nora housings?
A: Yes, it is compatible with most 5" and 6" IC and non-IC housings.
Q: What is included in the package?
A: The package includes the LED reflector and a medium base screw-socket adapter. Additional accessories are available separately.
