Product Description
NOXAC-4SWTWWW is a 4" AC Onyx Series Square Wall Wash Retrofit from Nora Lighting, delivering up to 737 lumens with selectable color temperatures. Designed for glare-free wall illumination, this ENERGY STAR® certified fixture installs into most 4" recessed housings and includes a medium base socket adapter. With a die-cast aluminum construction and air-tight performance, it’s ideal for commercial and residential applications requiring accent or feature lighting.
Brand: Nora Lighting
Model: NOXAC-4SWTWWW
Output: Up to 737 Lumens
Wattage: 11W
Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
Voltage: 120VAC
Dimming: Triac / ELV
CRI: 90+
Finish: White
Free shipping on orders over $250
Product Benefits
- Selectable CCT with five color temperature options in a single fixture
- Precision molded diffuser provides even wall illumination
- Canless design with included medium base adapter for retrofit applications
- ENERGY STAR certified and Title 24 JA8-2022 compliant
Key Features
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K (preset to 3000K)
- Construction: Die-cast aluminum body with integrated thermal management
- Mounting: Spring steel clips for secure install in most 4" housings
- Rated for Wet Locations: Suitable for indoor applications with moisture exposure
Specifications
Technical Specs
| Input Voltage | 120VAC |
| Wattage | 11W |
| Lumen Output | Up to 737lm (3500K) |
| Color Temperatures | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | 90+ |
| Dimming | Triac / ELV |
| Operating Temp | 0°C to 25°C |
Physical Specs

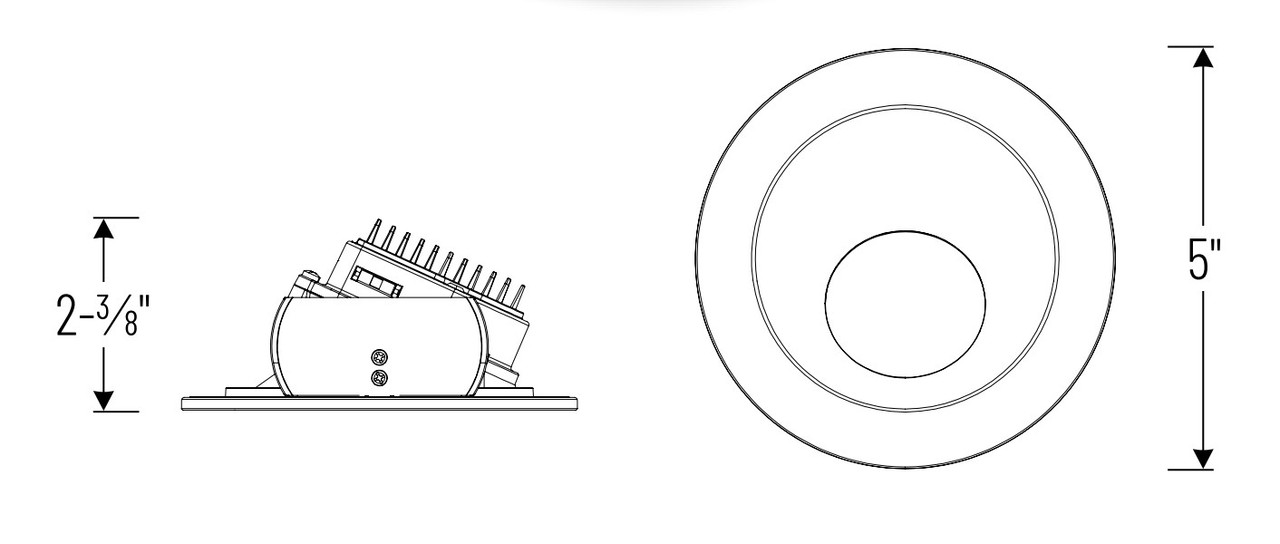

| Trim Dimensions | 5" x 5" |
| Height | 2-3/8" |
Application Examples
- Accent lighting for feature walls and architectural displays
- Retail product highlighting and visual merchandising
- Hospitality and restaurant ambient lighting
- Residential hallways and living room feature areas
Installation Tips
- Preset desired color temperature via 5-position switch before installation
- Install into compatible 4" recessed housings using spring clips
- Use the included medium base adapter or optional GU24 socket (NRA-212SM)
- Consult dimmer compatibility chart on Nora’s website for best results
Frequently Asked Questions
Q: What is the default color temperature setting?
A: The fixture is preset to 3000K from the factory but can be changed using the sliding selector switch:contentReference[oaicite:0]{index=0}.
Q: Can this be used in wet locations?
A: Yes, it is cULus classified for wet locations and meets ENERGY STAR requirements:contentReference[oaicite:1]{index=1}.
Q: What is the beam pattern for the wall wash?
A: The molded optic provides an even spread of light down vertical surfaces, optimized for wall illumination:contentReference[oaicite:2]{index=2}.
Q: What is the lumen output at different CCTs?
A: Output ranges from 624lm at 2700K to 737lm at 3500K. At 4000K it’s 720lm, and at 5000K it's 692lm:contentReference[oaicite:3]{index=3}.
Q: Does it include a socket adapter?
A: Yes, it comes with a medium base socket adapter. GU24 version available upon request (NRA-212SM):contentReference[oaicite:4]{index=4}.
