Product Description
NOXAC-43130WW/HL 4" AC Onyx LED Retrofit Reflector by Nora Lighting delivers exceptional performance in a compact, low-profile design. Engineered for modern retrofits, this 4" round reflector offers 1000 lumens at just 14.5 watts, producing crisp 3000K white light with a high 90+ CRI. Designed to work with most 4" recessed housings, it’s ENERGY STAR certified, wet location rated, and Title 24 JA8-2022 compliant.
Model: NOXAC-43130WW/HL
Brand: Nora Lighting
Type: 4" AC Onyx LED Retrofit Reflector
Lumens: 952lm
Wattage: 14.5W
Color Temperature: 3000K
CRI: 90+
Finish: White Reflector / White Flange
Free shipping on orders over $250
Product Benefits
- Efficient LED technology provides up to 1000 lumens with minimal energy consumption
- Tool-free installation with included medium base socket adapter
- Glare-free illumination from deep regressed optics and wide flood beam
- Ideal for residential, hospitality, or commercial retrofits
Key Features
- 952 delivered lumens at only 14.5W
- 3000K color temperature with 90+ CRI
- Integrated AC LED – no external driver needed
- Medium base socket adapter included for retrofit use
- Quick connector for use with dedicated LED housings
- Wet location listed and ENERGY STAR certified
- 5-year limited warranty for peace of mind
Specifications
Technical Specs
| Input Voltage | 120VAC |
| Frequency | 60Hz |
| Wattage | 14.5W |
| Color Temperature | 3000K |
| CRI | 90+ |
| Dimming | Triac / ELV |
Physical Specs
| Reflector Type | Spun aluminum with deep regressed optics |
| Mounting | Spring-mounted steel blades |
| Diameter | 5" |
| Height | 2" |
Performance Specs
| Lumen Output | 952lm |
| Efficacy | 67 LPW |
| Beam Spread | 96° Wide Flood |
| Operating Temperature | 25°C max |
Application Examples
- Residential living rooms, kitchens, and hallways
- Hospitality projects including hotels and restaurants
- Commercial offices and retail environments
- Bathroom ceilings and wet-rated areas
Installation Tips
- Use included medium base socket adapter for easy retrofitting
- Quick connector allows compatibility with Nora LED housings
- Ensure housing supports 4" LED retrofit modules
- Install with spring mounting blades for a secure fit
Frequently Asked Questions
Q: Does the NOXAC-43130WW/HL require an external driver?
A: No, this AC LED retrofit has an integrated driver for streamlined installation.
Q: What type of housing is compatible?
A: It fits most standard 4" IC and non-IC recessed housings and is compatible with Nora LED housings.
Q: Can this be installed in wet locations?
A: Yes, it is cETLus classified for wet locations, including bathrooms.
Q: What beam angle does this fixture provide?
A: It offers a wide 96° beam spread for broad, even light distribution.
Q: Is this product dimmable?
A: Yes, it supports Triac and ELV dimming systems.

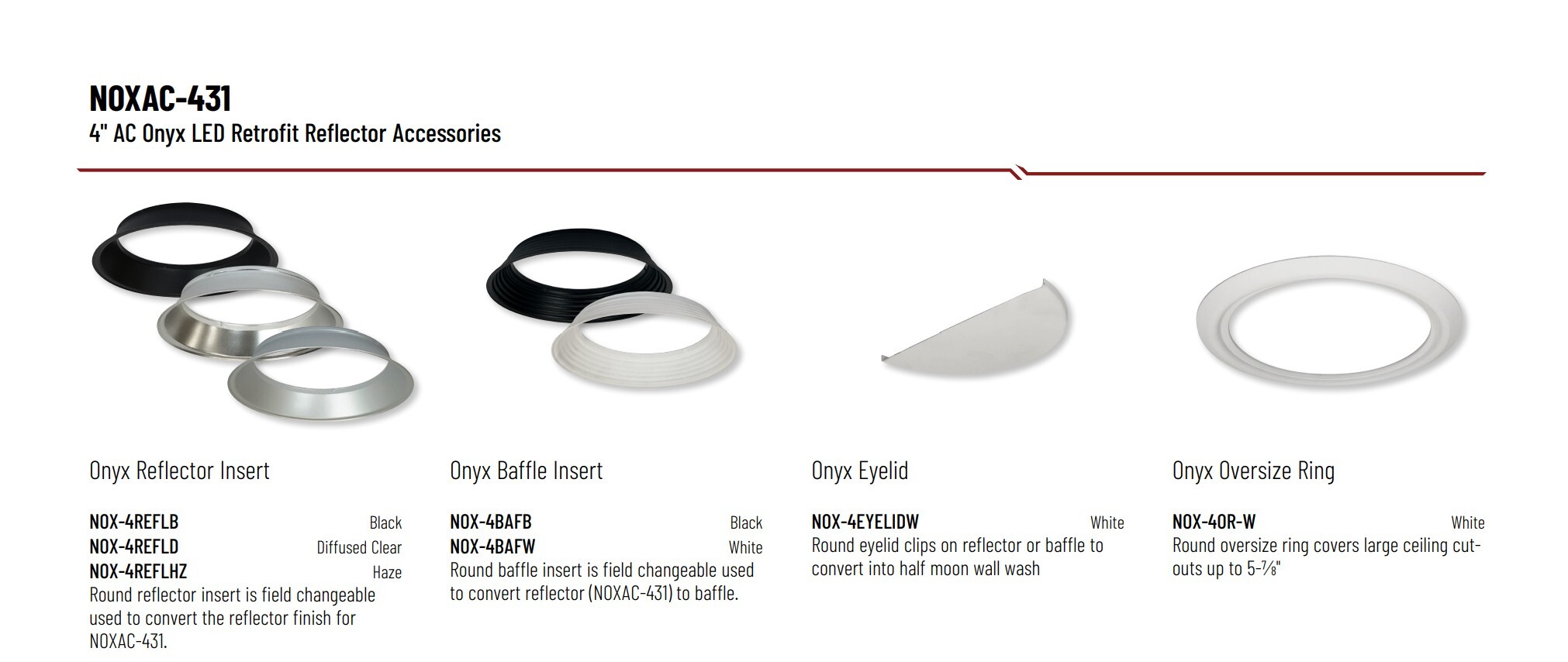

Q: What accessories are available?
A: Reflector inserts, baffle inserts, eyelids, and oversize rings in various finishes are available.
Q: Does this come with a warranty?
A: Yes, Nora provides a 5-year limited warranty on this retrofit fixture.
Q: How many lumens does this model produce?
A: It delivers 952 lumens at 3000K with high color rendering.
