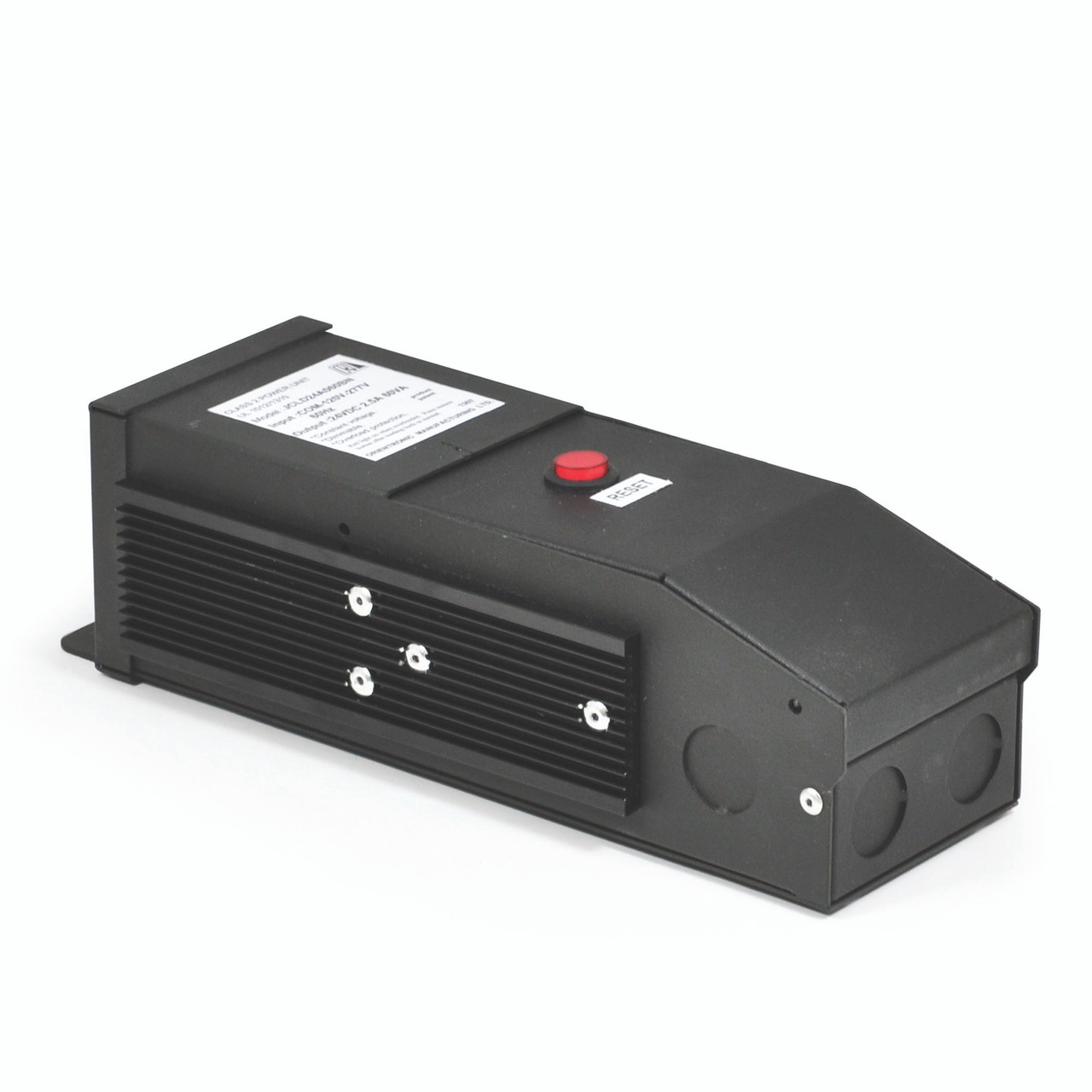

NMTD-60/24D 24V 60W Mag Dim Class II LED

Product Description

NMTD-60/24D 24V 60W Mag Dim Class II LED from Nora Lighting is a Class II dimmable hardwire magnetic LED driver engineered for reliable 24V low voltage lighting systems. Designed for demanding applications requiring quiet operation and superior durability, this 60W magnetic transformer delivers stable 24V power while resisting surges, spikes, brownouts, and other power irregularities.

Product Benefits

• Magnetic transformer design provides reliable, noise-free dimming performance for low voltage LED systems.
• High saturation core construction resists surges, spikes, brownouts, and other power irregularities.
• Supports continuous 24-hour operation and direct sunlight exposure in demanding environments.
• Compatible with a wide range of Nora Lighting 24V tape lights, light bars, and architectural lighting systems.

Key Features

• 24V Output: Designed for 24V low voltage LED lighting applications.
• 60W Capacity: Supports up to 60W LED load.
• Magnetic Low Voltage Dimming: Fully dimmable with compatible magnetic dimmers.
• Wide Input Voltage: Compatible with 120V-277V systems.
• Class II Protection: NEC Class II breaker protection for enhanced safety.
• Push-Button Reset: Easy reset after overload or short circuit conditions.
• Steel Housing: Durable black finished metal construction.
• Direct Sunlight Capable: Suitable for harsh operating conditions.

Specifications

Electrical Specifications

Model Number	NMTD-60/24D
Input Voltage	120V-277V 60Hz
Output Voltage	24V
Maximum Wattage	60W
Dimming Type	Magnetic Low Voltage
Maximum Distance	50'

Construction Specifications

Housing Material	0.055 black finished steel housing
Mounting	Front knockouts for wood, drywall, or sheet metal mounting
Knockouts	Two 1/2" knockouts for input and output wiring
Dimensions	9-3/4" x 2-7/8" x 2-7/8"

Compliance & Performance

Listings	cULus Listed
Classification	NEC Class 2
Environment	Dry Location Only
Operation	24-hour continuous operation capable
Protection	Breaker protection with push-button reset
Warranty	3-Year Limited Warranty

Applications

• 24V LED tape lighting systems
• Under cabinet lighting installations
• Architectural accent lighting
• Display and showcase illumination
• Hospitality and residential lighting projects
• Applications requiring noise-free dimming operation

Installation Tips

• Use only with compatible 24V low voltage LED fixtures and tape lights.
• Install in dry locations only.
• Verify total connected load does not exceed 60W maximum.
• Use compatible magnetic low voltage dimmers for proper dimming performance.
• Allow adequate airflow around the transformer housing during installation.
• Use the integrated push-button reset feature after overload or short circuit conditions.

FAQ

What output voltage does this driver provide?

The NMTD-60/24D provides 24V output for low voltage LED lighting systems.

What type of dimming does this driver support?

This driver supports magnetic low voltage dimming using compatible magnetic dimmers.

What is the maximum wattage capacity?

The driver supports up to 60W maximum connected LED load.

Can this transformer operate continuously?

Yes. The transformer is designed for continuous 24-hour operation.

Is this driver suitable for outdoor use?

No. This driver is rated for dry location use only.

What lighting systems is this driver compatible with?

The driver is compatible with Nora Lighting 24V tape lights, RGB systems, light bars, and under cabinet fixtures.

Does the driver include overload protection?

Yes. The unit includes NEC Class II breaker protection and a push-button reset feature.

Can the transformer be exposed to direct sunlight?

Yes. The driver is designed to withstand direct sunlight exposure and demanding operating conditions.
