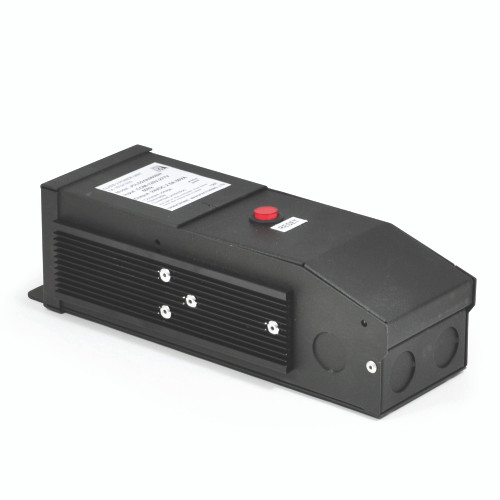

NMTD-60/12D 12V 60W Mag Dim Class II LED

Product Description

NMTD-60/12D 12V 60W Mag Dim Class II LED from Nora Lighting is a Class II dimmable hardwire magnetic LED driver designed for reliable 12V low voltage lighting applications. Engineered for demanding environments, this 60W magnetic transformer delivers noise-free performance with superior resistance to spikes, surges, brownouts, and power irregularities, making it ideal for LED tape lighting and under cabinet installations.

Product Benefits

• Magnetic transformer design provides quiet, noise-free LED dimming performance.
• High saturation core construction resists spikes, surges, brownouts, and power irregularities.
• Suitable for continuous 24-hour operation and direct sunlight exposure in demanding environments.
• Compatible with Nora Lighting low voltage tape lights and under cabinet fixtures.

Key Features

• 60W Output: Delivers reliable 12V low voltage LED power.
• Wide Input Voltage: Compatible with 120V-277V systems.
• Magnetic Low Voltage Dimming: Fully dimmable with compatible magnetic dimmers.
• Class II Protection: NEC Class II breaker protection for safety.
• Push-Button Reset: Simplified recovery after overload or short circuit events.
• Steel Housing: Durable black finished metal construction.
• Direct Sunlight Capable: Designed for harsh operating environments.
• Multiple Knockouts: Simplifies hardwire installation.

Specifications

Electrical Specifications

Model Number	NMTD-60/12D
Input Voltage	120V-277V 60Hz
Output Voltage	12V
Maximum Wattage	60W
Dimming Type	Magnetic Low Voltage
Maximum Distance	50'

Construction Specifications

Housing Material	0.055 black finished steel housing
Mounting	Front knockouts for wood, drywall, or sheet metal mounting
Knockouts	Two 1/2" knockouts for input and output wiring
Dimensions	9-3/4" x 2-7/8" x 2-7/8"

Compliance & Performance

Listings	cULus Listed
Classification	NEC Class 2
Environment	Dry Location Only
Operation	24-hour continuous operation capable
Protection	Breaker protection with push-button reset
Warranty	3-Year Limited Warranty

Applications

• LED tape lighting systems
• Low voltage under cabinet lighting
• Architectural accent lighting
• Display and showcase illumination
• Hospitality and residential lighting installations
• Applications requiring quiet dimming operation

Installation Tips

• Use only with compatible 12V low voltage LED fixtures and tape lighting.
• Install in dry locations only.
• Verify total connected load does not exceed 60W maximum.
• Use compatible magnetic low voltage dimmers for proper dimming performance.
• Allow adequate ventilation around the transformer housing during installation.
• Use the integrated push-button reset after overload or short circuit conditions.

FAQ

What type of dimming does this driver support?

This driver supports magnetic low voltage dimming using compatible magnetic dimmers.

What is the maximum wattage capacity?

The NMTD-60/12D supports up to 60W maximum LED load.

Can this driver operate continuously?

Yes. The transformer is designed for 24-hour continuous operation.

Is this driver suitable for outdoor use?

No. This driver is rated for dry location use only.

What happens if the driver experiences overload or short circuit?

The unit includes breaker protection with a push-button reset feature for recovery.

What fixtures is this driver compatible with?

The driver is approved for use with Nora Lighting low voltage tape lights and under cabinet fixtures.

Can the transformer be exposed to direct sunlight?

Yes. The driver is designed to withstand direct sunlight exposure.

What voltage input does this driver accept?

The driver operates on 120V-277V 60Hz input power.
