Product Description
Nora NMP2-LED35W 24V Josh LED Puck Light delivers a smooth, diode-free 300 lumen output at 3500K with 90+ CRI, all in a slim white housing that installs recessed or surface-mounted for under-cabinet, display, and in-cabinet lighting.
Product Summary
- Lumen Output / Wattage: 300 lm / 3.5W (per puck)
- CCT / CRI: 3500K / 90+ CRI
- Input: 24V DC (remote driver required)
- Mounting: Recessed or surface

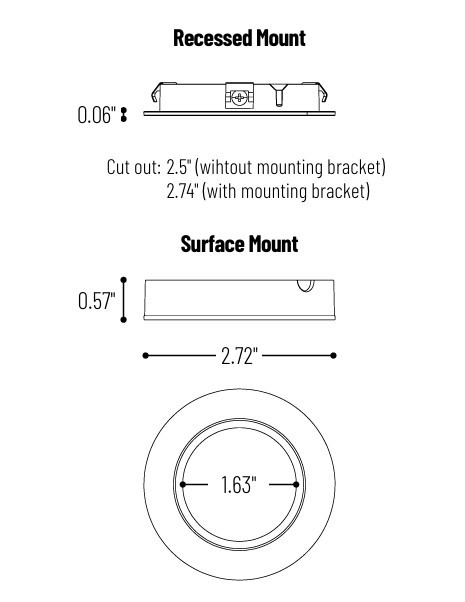

- Dimensions: 2.72" diameter; 0.57" height (surface)
- Cutout: 2.5" (without bracket) or 2.74" (with bracket)
- Lead Length: 72" wire with quick connector
- Listings: cULus Damp; cULus for under-cabinet / cabinet use; RoHS
- Lifespan: L70 50,000 hours
- Finish: White
Free shipping on orders over $250
Use with Nora plug-in or hardwire 24V drivers; up to 6 pucks per 6-port interconnect (each puck home-runs to the hub).
Benefits
- Seamless, even illumination with no visible diode image—ideal for premium countertops and displays.
- Ultra-low profile fits tight spaces (0.6" deep) and installs recessed or surface-mounted.
- Cool operation with no UV/IR helps protect artwork, merchandise, and heat-sensitive items.
- Modular system scales easily using Nora interconnect hubs, extension cables, and driver options.
Key Features
- 24V low-voltage system; dimmable via compatible 24V driver.
- 300 lm at 3.5W (90+ CRI) in 3500K neutral white.
- Recessed or surface mounting hardware with white finish.
- 72" pre-attached lead with quick connector for fast install.
- Damp-location listed; L70 50,000 hours; RoHS compliant.
Specifications
Technical Specs
| Input Voltage | 24V DC (remote driver required) |
| Power | 3.5W per puck |
| Dimming | Driver-dependent (plug-in or hardwire, incl. 0-10V / ELV / MLV options) |
| Operating Temp | 20°C to 50°C |
| Max Units per Interconnect | 6 pucks on 6-port hub; each puck connects to hub (no daisy chain) |
| Lead Length | 72" wire with connector |
| Life | L70 50,000 hours |
| Listings | cULus Damp; cULus under-cabinet / cabinet; RoHS |
Performance Specs
| Lumen Output | 300 lm (typical) |
| CCT | 3500K |
| CRI | 90+ |
| Beam | Wide flood (approx. 113°) |
Physical Specs
| Finish | White |
| Diameter | 2.72" |
| Height (Surface) | 0.57" |
| Ceiling Cutout | 2.5" (w/o bracket) or 2.74" (with bracket) |
| Mounting | Recessed or surface with included hardware |
| Accessories | 6-port interconnect hub; 12"/24"/36"/48" extensions; wire raceway; touch dimmer; multiple 24V drivers |
Application Examples
- Under-cabinet and toe-kick lighting in kitchens and break rooms
- Display shelves, niches, and casework in retail and museums
- In-cabinet lighting for jewelry, collectibles, and merchandise
- Hospitality bars, back counters, and reception areas
Installation Tips
- Select a compatible 24V Nora driver sized for total load (3.5W × number of pucks + driver overhead).
- Use the 6-port interconnect to home-run each puck; do not daisy chain puck-to-puck.
- Plan lead routing with 12–48" extensions or wire raceway for clean, concealed installs.
- For enclosed cabinets (approx. 3.5" × 11.5" × 12"), install up to three pucks per cabinet section.
- Choose recessed or surface mounting based on depth and access; verify cutout before drilling.
FAQ
Does NMP2-LED35W require a separate power supply?
Yes. It operates on 24V DC and must be used with a compatible Nora 24V driver.
Is it dimmable?
Yes. Dimming is provided by the selected driver (options include plug-in and hardwire with ELV, 0–10V, or MLV control).
How many pucks can I connect to one hub?
Up to six pucks can connect to the 6-port interconnect; each puck must connect directly to the hub.
Can I surface mount without recessing?
Yes. The puck includes hardware for either recessed or surface mounting.
What is the color quality?
It delivers 90+ CRI at a neutral 3500K for true, consistent color.
Is it safe for enclosed cabinets?
Yes. It is cULus listed for cabinet and under-cabinet use; up to three pucks can be installed in a typical enclosed cabinet section.
How long is the lead?
Each puck includes a 72" wire with quick connector, with optional 12–48" extensions available.
