Product Description

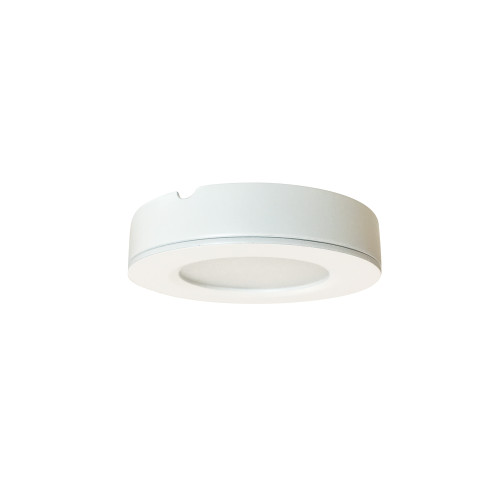

The NMP-LED40W 12V Josh LED Puck Light combines sleek design and efficient lighting performance with a modern white finish. Emitting 300 lumens of crisp 4000K light, this puck light is ideal for task and accent lighting in under-cabinet, in-cabinet, and niche applications.
Key Features:
- 12V low-voltage system with a compact design (0.6" deep, 2.72" diameter).
- Produces 300 lumens of 4000K bright light while consuming just 3.5 watts.
- Recessed or surface-mount installation options for flexibility in various applications.
- Equipped with a 72" wire and connector for straightforward installation.
- Dimmable with compatible power supplies for custom lighting levels.
- Even light distribution with no diode image, UV, or infrared rays.
- ENERGY STAR certified and RoHS compliant for eco-friendly performance.
- Designed to last 50,000 hours of operation and backed by a 5-Year Limited Warranty.
Specifications:
- Input Voltage: 12VDC
- Lumen Output: 300lm
- Wattage: 3.5W
- Color Temperature: 4000K
- Color Rendering Index (CRI): 90+
- Beam Spread: 113° Wide Flood
- Operating Temperature: 20°C to 50°C
- Maximum Units Per Interconnect: Six luminaires
Installation Tips:
- Select recessed or surface mounting based on your lighting setup.
- Use a 12V driver to power the light; dimming capabilities depend on the chosen driver.
- Connect up to six puck lights using a compatible interconnect system.
- Extension cables are available in 12", 24", 36", and 48" lengths for added flexibility.
Frequently Asked Questions:
Q: Can this fixture be dimmed?
A: Yes, it is dimmable with compatible power supplies specified by the driver.
Q: Is this puck light suitable for damp locations?
A: Yes, it is cULus Listed for damp locations.
Q: How is this puck light mounted?
A: It can be recessed or surface-mounted depending on your needs.
Q: Does this fixture emit UV or infrared light?
A: No, it is designed to emit light without UV or infrared wavelengths.
Q: How many lights can be interconnected?
A: Up to six puck lights can be connected per interconnect system.
Q: What is the expected lifespan of this fixture?
A: It is rated for 50,000 hours of operation.
