Product Description

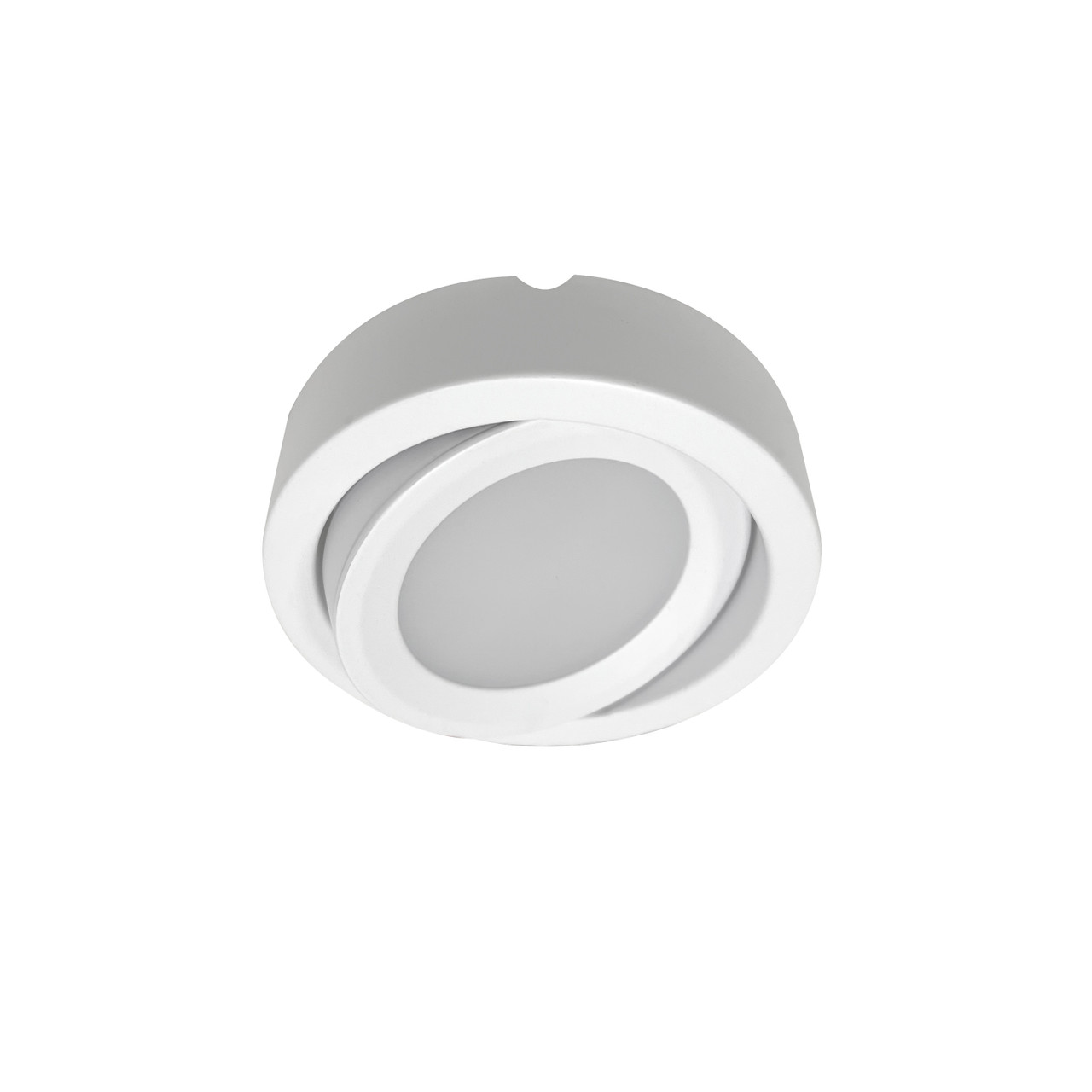

Nora Lighting NMP-A35W 12V Josh Adjustable LED Puck Light delivers a clean, even glow at 300 lumens from just 3.5 watts in a compact, low-profile form. With 3500K neutral white color, 90+ CRI, and an 18° adjustable gimbal, this puck installs recessed or surface-mounted to highlight countertops, displays, and cabinetry while keeping heat and UV off sensitive materials.
- Lumen Output: 300 lm
- Wattage: 3.5W
- Color Temperature: 3500K (90+ CRI)
- Voltage: 12V DC (requires Class II driver)
- Beam: Wide flood (approx. 113°)
- Adjustability: 18° gimbal
- Mounting: Recessed (3.15" cutout) or surface
- Listings: cULus Damp; under-cabinet/cabinet listed; RoHS
- Lifespan: 50,000 hours
- Finish: White (W)
- Free shipping on orders over $250
Product Benefits
- Professional, even illumination: Wide-flood distribution without visible diode images for clean, uniform task lighting.
- Flexible aiming: 18° gimbal lets you aim light on backsplashes, shelves, or merchandise.
- Cool operation: No forward heat, UV, or IR—safe for artwork, food displays, and retail cases.
- Fast install: Recessed or surface mount with a slim profile and 72" pre-attached lead.
Key Features
- Energy Efficient: 3.5W delivers 300 lm (≈20W xenon/halogen equivalent).
- High Color Quality: 90+ CRI at neutral 3500K for true-to-life finishes.
- 12V System: Works with Nora Class II drivers; dimmable per driver type.
- Mounting Options: Recessed (3.15" cutout) or surface using the same puck body.
- Accessories: 6-port interconnect hub, 12"–48" extension cables, touch dimmer, raceway.
Enhanced Specifications
Technical Specs
| Light Source | LED, 300 lm |
| Wattage | 3.5W |
| CCT / CRI | 3500K / 90+ |
| Distribution | Wide Flood (~113°) |
| Lumen Maintenance | L70 @ 50,000 hours |
| Dimming | Per driver (Triac/ELV or 0–10V with compatible Nora drivers) |
Physical Specs
| Housing / Lens | Low-profile puck body; no visible diode image |
| Adjustability | 18° tilt |
| Finish | White (W) |
| Recessed Cutout | 3.15" diameter |
| Overall Diameter × Depth | 3.5" × 0.79" (surface); 1.64" recess can depth |
| Lead Length | 72" wire with quick connector |
Performance & Compliance
| Input Voltage | 12V DC (Class II) |
| Listings | cULus for Damp; under-cabinet & cabinet use; RoHS |
| Operating Temp | 0°C to 40°C |
| Max per Interconnect | Up to 6 pucks on NMPA-6P-24 hub |
| Warranty | 5-Year Limited |
Application Examples
- Kitchen undercabinet task lighting and toe-kicks
- Retail shelving, vitrines, and jewelry cases
- Backbars, display niches, and floating shelves
- Museum and hospitality millwork
Installation Tips
- Use a Class II 12V Nora driver sized for total load (3.5W × number of pucks + driver overhead).
- For multiple pucks, land each puck to the NMPA-6P-24 6-port interconnect (no daisy-chaining).
- Plan wiring with NMPA-EW extension cables (12", 24", 36", 48") to keep drivers accessible.
- Recessed installs require a 3.15" cutout; surface installs mount directly to the cabinet.
- Dimmer type must match driver (Triac/ELV for plug-in/ELV drivers; 0–10V for 0–10V driver).
Frequently Asked Questions
Q: Does the puck require a separate power supply?
A: Yes. It operates on 12V DC and must be paired with a compatible Nora Class II driver.
Q: Can I recess or surface mount the same puck?
A: Yes. The NMP-A puck supports both recessed and surface mounting with the same housing.
Q: How many pucks can I connect?
A: Up to six pucks per NMPA-6P-24 interconnect hub; each puck lands directly to the hub.
Q: Is it dimmable?
A: Dimming is supported through the selected driver (Triac/ELV or 0–10V depending on model).
Q: What is the beam spread?
A: A wide-flood distribution (~113°) provides smooth, uniform illumination without diode images.
Q: Is it suitable for damp locations?
A: Yes, it is cULus Listed for damp and specifically listed for under-cabinet and cabinet use.
Q: What’s included with each puck?
A: Each unit includes a 72" cable with connector for quick hookup to the interconnect hub.
Q: What is the warranty?
A: Nora provides a 5-year limited warranty on the fixture.
