Product Description

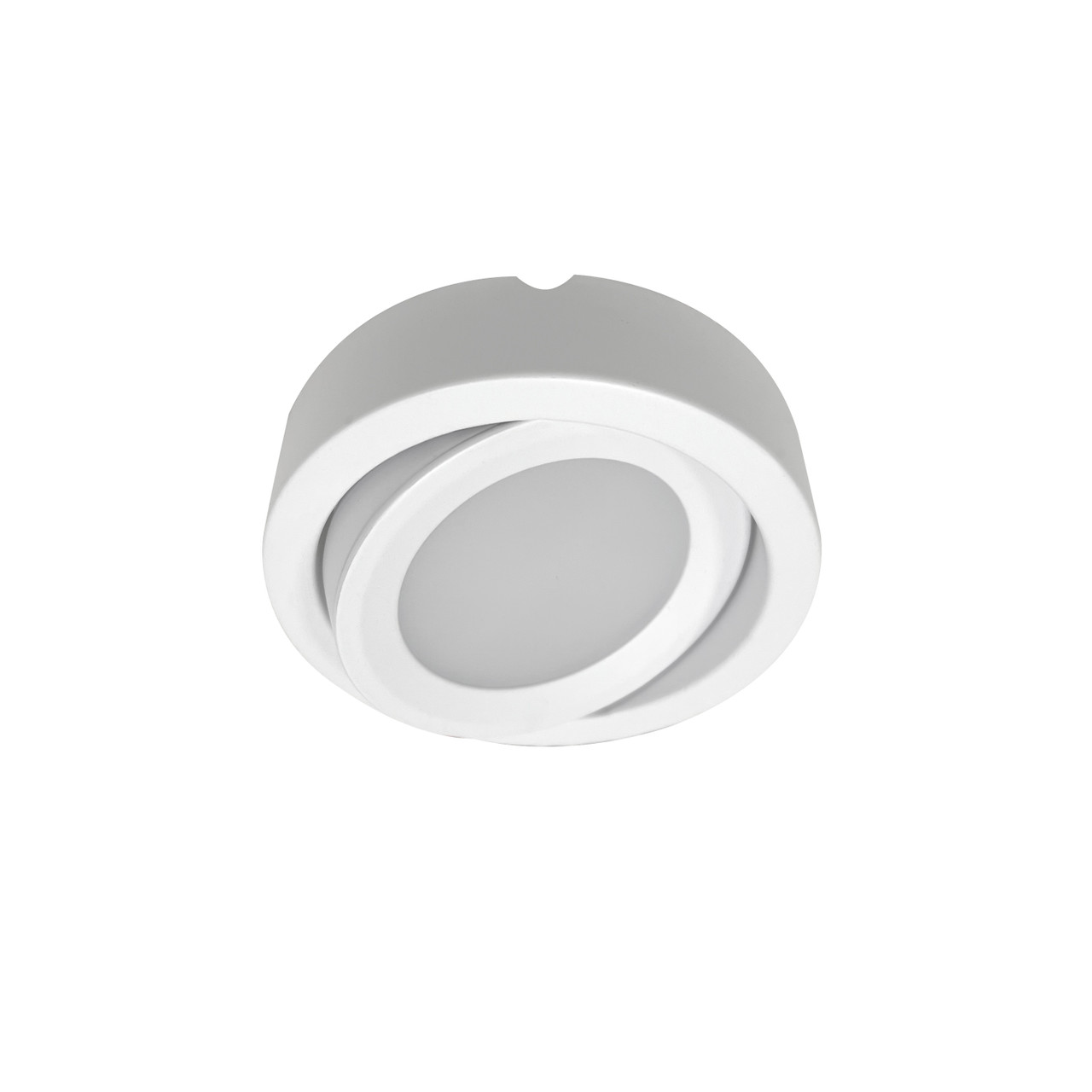

Nora NMP-A27W 12V Josh Adjustable LED Puck Light delivers up to 300 lumens of warm 2700K light at just 3.5W, with 90+ CRI color quality. The slim, adjustable puck installs recessed or surface-mounted and features a clean White finish for kitchens, displays, and fine millwork.
Quick Specs
- Lumens / Wattage: up to 300 lm / 3.5W
- CCT / CRI: 2700K / 90+
- Voltage: 12V DC (Class 2)
- Beam: Wide flood (≈113°)
- Mounting: Recessed or surface
- Adjustability: 18° tilt
- Lead Length: 72" with quick connector
- Rating: cULus Damp; under-cabinet & cabinet listed
- Life / Warranty: 50,000 hours / 5 Years
Free shipping on orders over $250
System & Accessories
- Interconnect hub: NMPA-6P-24 (connect up to six pucks; no daisy-chaining between pucks)
- Extensions: NMPA-EW-12/24/36/48 (linkable to 110")
- Drivers (12V): NAPK-524W/12, NAPK-560W/12 (plug-in); NATL-5060-12-HWD10 (0–10V); NMTD-40/12D or NMTD-60/12D (MLV); NAPKED-5040HW (ELV)
Benefits
- Warm, high-CRI illumination enhances wood grains, food prep areas, and merchandise.
- Low-profile housing with 18° aim keeps glare low and light exactly where it’s needed.
- Even, diode-free appearance for premium under-cabinet and display lighting.
- Simple layouts using a hub connector—clean installs with fewer field splices.
Key Features
- Recessed or surface mount in the same fixture for maximum flexibility.
- 72" pre-wired lead with plug-in connector for fast wiring.
- Dimmable via driver choice (0–10V, ELV, or MLV, per selected power supply).
- Damp location and cabinet listings; no UV/IR—great for artwork and displays.
- Five-year warranty and 50,000-hour design life.
Specifications
Technical Specs
| Input Voltage | 12V DC (Class 2) |
| Power | 3.5W per puck |
| Lumen Output | Up to 300 lm (lab data ~305 lm for 2700K) |
| CCT / CRI | 2700K / 90+ |
| Dimming | Specified by driver (0–10V, ELV, or MLV options) |
| Operating Temperature | 0°C to 40°C |
| Life | 50,000 hours (typical) |
| Listings | cULus Damp; under-cabinet & cabinet use; RoHS |
Physical Specs
| Face Diameter | 3.5" (surface bezel) |
| Recessed Cutout | 3.15" diameter |
| Overall Height | 0.79" |
| Adjustability | 18° tilt |
| Finish | White |
| Lead Length | 72" wire with connector |
Performance & System Notes
| Beam | Wide flood (≈113°) |
| Interconnect Capacity | Up to six pucks per NMPA-6P-24 hub; do not daisy-chain puck-to-puck |
| Cabinet Install Guideline | Up to three pucks may be used in a 3.5" × 11.5" × 12" enclosed cabinet |
Application Examples
- Under-cabinet task lighting in kitchens and breakrooms
- In-cabinet niches, bookcases, and display shelving
- Jewelry, retail, and museum casework
- Residential millwork and built-ins
Installation Tips
- Choose a compatible 12V Class 2 driver sized for total wattage and desired dimming method.
- Use the NMPA-6P-24 hub to connect up to six pucks; connect each puck directly to the hub.
- For recessed installs, bore a 3.15" hole; for surface installs, use the included bezel.
- Route leads neatly with NMPA-EW extensions and NATL raceways; keep low-voltage separate from line voltage.
- Observe damp location rating and the 0–40°C operating range.
Frequently Asked Questions
Is the NMP-A27W 12V or 24V?
It is a 12V DC Class 2 system.
How many pucks can I wire on one hub?
Up to six per NMPA-6P-24 hub. Each puck must plug into the hub—no puck-to-puck daisy-chaining.
What cutout is required for recessed mounting?
Provide a 3.15" diameter hole.
Is it dimmable?
Yes—use a compatible driver to enable 0–10V, ELV, or MLV dimming.
What are the photometric details?
Wide-flood distribution (about 113°), with lab-measured output near 305 lm for 2700K.
Can I use these inside enclosed cabinets?
Yes—listed for under-cabinet and cabinet use; up to three pucks may be installed in a 3.5" × 11.5" × 12" enclosed cabinet.
What’s included on the lead?
A factory 72" wire with a quick connector for easy plug-in to the hub.
What is the warranty?
5-year limited warranty.
