NMIOTL-12-NF-AW-27X-10-MPW Iolite MLS 2-HEAD Trimless Reflector Kit combines one adjustable snoot head with one wall wash head for versatile accent + vertical illumination. Engineered by Nora Lighting, this trimless (no-flange) 2-head module delivers up to 1000 lumens per head at warm 2700K (90+ CRI) with universal 120–277V operation and Triac/ELV/0–10V dimming for smooth control.
Model: NMIOTL-12-NF-AW-27X-10-MPW
Brand: Nora Lighting
Type: Iolite MLS 2-Head Trimless Kit — Adjustable Snoot + Wall Wash
Lumens: 1000 lm per head (delivered varies by reflector/CCT/finish)
Wattage: 12W per head
Color Temperature: 2700K
CRI: 90+
Voltage: 120–277V
Dimming: Triac, ELV, 0–10V
Included Optics (Adjustable Snoot head): 25° Spot, 38° Narrow Flood, 60° Flood
Finish: Matte Powder White (MPW)
Free shipping on orders over $250
Product Benefits
- Architectural trimless aesthetic—mud-in plate creates a clean, flangeless ceiling plane that disappears into the design.
- Dual-function lighting—precise accent from the adjustable snoot head plus uniform wall wash for vertical surfaces.
- Warm, high-quality light at 2700K and 90+ CRI enhances finishes in retail, hospitality and residential applications.
- Flexible controls—works with Triac, ELV or 0–10V dimmers across 120–277V circuits.
Key Features
- Two independently addressed heads: one Adjustable Snoot (359° rotation, ~20° tilt) and one Wall Wash (engineered vertical distribution).
- Field-changeable optics (snoot head): 25°, 38°, 60° included; optional 22° & 26° TIR optics available.
- Durable housing: 0.0475" galvanized steel with individual drivers for each module; adjustable bar hangers included.
- Code-ready: cULus Listed for Damp Locations, Title 24 JA8 compliant; ENERGY STAR certification on most trims (wall wash not certified).
Specifications
| Technical Specs | |
|---|---|
| Heads | 2 (Adjustable Snoot + Wall Wash) |
| Wattage | 12W per head |
| Voltage | 120–277V |
| Dimming | Triac, ELV, 0–10V |
| CRI | 90+ |
| Included Optics (Snoot) | 25° Spot, 38° Narrow Flood, 60° Flood |
| Optional Optics | 22° & 26° Premium TIR (not for Comfort Dim) |
| Performance Specs | |
|---|---|
| Lumen Output | Up to 1000 lm per head (varies by reflector/CCT/finish) |
| Color Temperature | 2700K |
| Aiming (Snoot) | ~359° rotation; up to ~20° tilt |
| Wall Wash | Fixed reflector optimized for even vertical illumination |
| Physical Specs | |
|---|---|
| Finish | Matte Powder White (MPW) |

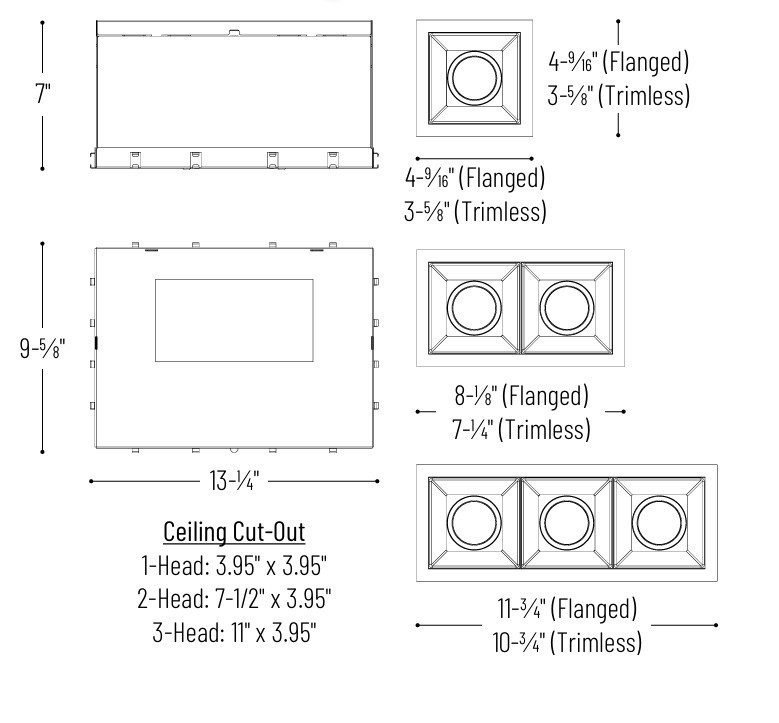

| Ceiling Cut-Out (2-Head) | 7-1/2" x 3.95" |
| Installed Height (Trimless) | 3-5/8" |
| Ceiling Thickness | Accepts up to 1-1/2" (varies by ceiling type) |
| Bar Hangers | 13-7/8" to 25" adjustable with captive nails |
| Junction Box | 40 cu. in. galvanized steel with six 1/2" knockouts |
| Compliance & Safety | |
|---|---|
| Listings | cULus Listed for Damp Location; ENERGY STAR (wall wash not certified) |
| Energy Code | California Title 24 JA8-2022 compliant |
| Warranty | 5-Year Limited |
Application Examples
- Retail feature walls and merchandise highlights
- Hospitality: reception backdrops, corridors, lounge accents
- Commercial offices and conference rooms
- High-end residential trimless ceilings
Installation Tips
- Mount the trimless mud plate flush with drywall; float, sand, and paint for a seamless ceiling plane.
- Use included adjustable bar hangers (13-7/8"–25") to land on joists or T-bar grids.
- For uniform wall washing, start at about 2'–3' from the wall and consider ~3' on-center spacing; see the wall-wash photometric chart for example footcandles.
- Select the included optic (25° / 38° / 60°) on the snoot head during aim & commissioning.
- Verify dimmer compatibility when using Triac/ELV/0–10V controls.
Frequently Asked Questions
Q: What does the “AW” configuration mean?
A: It combines one Adjustable Snoot head and one Wall Wash head in the same 2-head trimless kit.
Q: How much light does each head provide?
A: The MLS series is rated at 1000 lm / 12W per head; delivered output varies by reflector, CCT, beam and finish.
Q: What dimming is supported?
A: Triac, ELV, or 0–10V across 120–277V input.
Q: What ceiling opening do I need?
A: For the 2-head trimless kit, cut out 7-1/2" x 3.95"; installed trimless height is about 3-5/8".
Q: Do both heads include interchangeable optics?
A: The Adjustable Snoot head ships with 25°, 38°, and 60° optics; the Wall Wash head uses a fixed reflector engineered for even vertical illumination.
Q: Is it code compliant?
A: Yes—cULus Listed for Damp Locations and Title 24 JA8 compliant; most trims are ENERGY STAR certified (wall wash not certified).
Q: Can I tighten the beam later?
A: Optional premium 22° and 26° TIR optics are available for the snoot head.
