Product Description

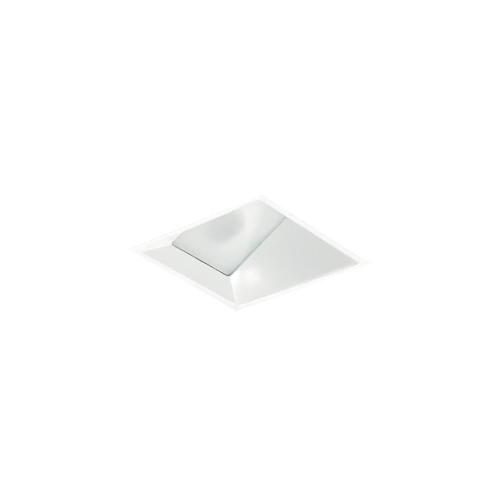

NMIOTL-11-NF-W-27X-10-MPW Iolite MLS 1-HEAD Trimless Reflector Kit delivers a seamless, mud-in wall wash solution for uniform vertical illumination. Engineered by Nora Lighting, this trimless 1-head module operates on 120–277V with Triac/ELV/0–10V dimming and ships with field-changeable optics for precise distribution control while maintaining a minimalist ceiling aesthetic.
Model: NMIOTL-11-NF-W-27X-10-MPW
Brand: Nora Lighting
Type: Iolite MLS 1-Head Trimless Wall Wash Reflector Kit
Lumens: Up to 1000 lm per head (delivered output varies by reflector, CCT, beam, finish)
Wattage: 12W per head
Color Temperature: 2700K
CRI: 90+
Voltage: 120–277V
Dimming: Triac, ELV, 0–10V
Finish: Matte Powder White (MPW)
Free shipping on orders over $250
Product Benefits
- Seamless trimless design with mud plate for a clean, flangeless ceiling detail that disappears into the architecture.
- Optimized wall wash optic aims light to create smooth, uniform vertical illumination for galleries, retail walls, and feature surfaces.
- High-quality 2700K, 90+ CRI light enhances warm finishes and natural materials.
- Flexible controls with Triac/ELV/0–10V dimming to match a wide range of control systems.
Key Features
- Trimless installation: mud plate mounts flush; finisher floats, sands, and paints for a minimalist appearance.
- Optics included: 25° spot, 38° narrow flood, and 60° flood (field-changeable) for design flexibility.
- Customizable performance: optional premium 22° and 26° TIR optics available (not for Comfort Dim).
- Durable construction: galvanized steel housing with individual drivers per head and adjustable bar hangers.
- Certified & efficient: cULus Listed for Damp Location, Title 24 JA8 compliant; most trims ENERGY STAR (wall wash not certified).
Specifications
| Technical Specs | |
|---|---|
| Wattage | 12W per head |
| Voltage | 120–277V |
| Dimming | Triac, ELV, 0–10V |
| CRI | 90+ |
| Included Optics | 25° Spot, 38° Narrow Flood, 60° Flood |
| Performance Specs | |
|---|---|
| Lumen Output | Up to 1000 lm per head (varies by reflector/CCT/finish) |
| Color Temperature | 2700K |
| Wall Wash Distribution | Engineered for uniform vertical illumination along wall surfaces |
| Physical Specs | |
|---|---|
| Finish | Matte Powder White (MPW) |
| Ceiling Cut-Out | 3.95" x 3.95" (1-head) |
| Installed Height (Trimless) | 3-5/8" |
| Ceiling Thickness | Accepts up to 1-1/2" (varies by ceiling type) |
| Compliance & Safety | |
|---|---|
| Listings | cULus Listed for Damp Location; ENERGY STAR (wall wash not certified) |
| Energy Code | California Title 24 JA8-2022 compliant |
| Warranty | 5-Year Limited |
Application Examples
- Retail perimeter walls and merchandising bays
- Art galleries and museums
- Reception backdrops and feature walls
- Residential hallways and accent surfaces
Installation Tips
- Mount the trimless mud plate inside the housing, then float, sand, and paint for a continuous ceiling plane.
- Verify ceiling thickness (up to 1-1/2") and follow local code for clearances and wiring.
- Select and install the preferred optic (spot / narrow flood / flood) during aiming to tailor wall brightness and uniformity.
- Use compatible Triac/ELV/0–10V controls; confirm dimmer compatibility during commissioning.
Frequently Asked Questions
Q: What is included with this wall wash kit?
A: One Iolite MLS head with a wall wash reflector, trimless mud plate, and three field-changeable optics (25°, 38°, 60°) for fine-tuning distribution.
Q: Does this model support multiple voltages and dimming types?
A: Yes. It operates on 120–277V and supports Triac, ELV, and 0–10V dimming.
Q: How uniform is the wall illumination?
A: The wall wash reflector is designed to distribute light evenly along vertical surfaces; Nora provides example footcandle data for typical spacings.
Q: Is it suitable for code-regulated projects in California?
A: Yes. It meets the high-efficacy requirements of Title 24 JA8.
Q: What ceiling opening is required?
A: 3.95" x 3.95" for the 1-head configuration.
Q: Can I upgrade to premium optics later?
A: Optional 22° and 26° TIR optics are available separately (not for Comfort Dim).
