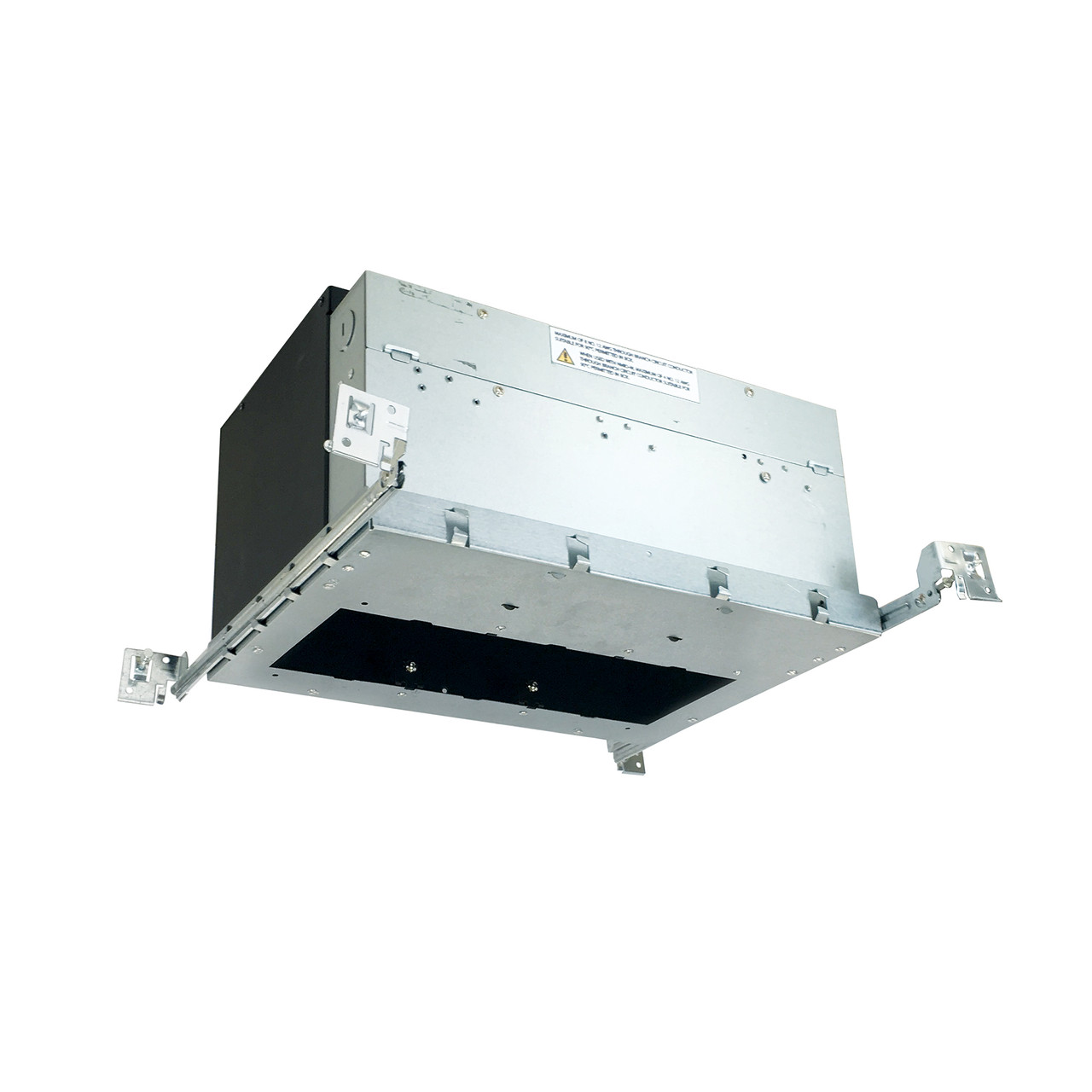

The NMHIOIC-13LE4 Iolite Multiple Lighting System by Nora Lighting is a high-quality, versatile solution for modern lighting needs. Designed for new construction applications, this three-head housing offers precision, performance, and adaptability to various commercial and architectural projects.
Key Features:
- Three-head configuration for dynamic lighting applications.
- Durable galvanized steel housing with quick-connects for ease of installation.
- Integrated individual drivers for each module, ensuring reliable performance.
- Supports Triac, ELV, and 0-10V dimming methods for flexible control.
- Compatible with multiple reflector and optic options for customizable beam distribution.
Specifications:
- Voltage: 120V-277V
- Dimmable: Yes (Triac, ELV, 0-10V)
- Housing Material: Galvanized steel
- Compliance: ENERGY STAR certified and Title 24 JA8-2022 compliant
- Warranty: 5-Year Limited Warranty
Installation Tips:
- Ensure compatibility with standard ceiling thicknesses up to 1-1/2".
- Use the adjustable bar hangers (13-7/8" to 25") for secure and precise installation.
- Quick-connects simplify the installation process, reducing setup time.
- Follow local electrical codes and guidelines for safety and compliance.
Frequently Asked Questions:
Q: What is the voltage range for this housing?
A: It supports a voltage range of 120V-277V.
Q: Is this housing compatible with dimming systems?
A: Yes, it supports Triac, ELV, and 0-10V dimming methods.
Q: What material is the housing made of?
A: The housing is constructed from galvanized steel.
Q: Can this housing be used in insulated ceilings?
A: Yes, it is rated for direct contact with insulation.
Q: What is the warranty period for this product?
A: It comes with a 5-Year Limited Warranty.
Q: Does it include the necessary bar hangers for installation?
A: Yes, two adjustable bar hangers are included.
