Product Description

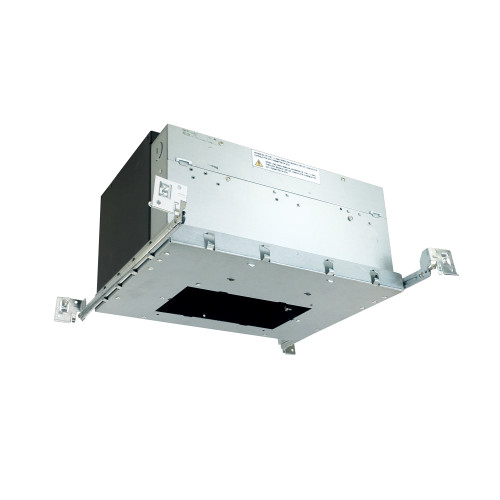

NMHIOIC-12LE4 Iolite Multiple Lighting System Two Head New Construction Housing from Nora Lighting provides a flexible, IC-rated platform for high-performance multiple LED downlighting. Designed for modern retail, hospitality and commercial spaces, this two-head housing pairs with Iolite Multiple trims to deliver precise beam control, excellent color quality and a clean, architectural ceiling appearance.
Quick Specs:
- Brand: Nora Lighting
- Series: Iolite Multiple Lighting System (MLS)
- Model: NMHIOIC-12LE4 (two-head IC new construction housing)
- Source: 12W LED per head, nominal 1000 lumens per head (Comfort Dim option at 800 lumens)
- Voltage: 120-277V universal input
- Dimming: Triac, ELV or 0-10V
- Color Temperature Options: 2700K, 3000K, 3500K, 4000K, 5000K, or Comfort Dim 3100K–2000K
- CRI: 90+ high color rendering
- Configuration: Two independently adjustable heads (with compatible trims)
- IC Rating: Approved for direct contact with insulation (excluding spray foam)
Shipping: Free shipping on orders over $250.
Benefits of the NMHIOIC-12LE4 Iolite Multiple Housing
- Flexible two-head platform allows you to aim each Iolite module independently, making it ideal for accenting merchandise, artwork or architectural features from a single housing.
- Architectural trim options including flanged and trimless mud ring designs help create a clean, minimalist ceiling appearance that blends into high-end interiors.
- High-performance LED system delivers up to 1000 lumens per head with 90+ CRI and multiple beam spreads for precise lighting design in retail, hospitality and commercial spaces.
- Contractor-friendly installation with adjustable bar hangers, IC rating and a spacious junction box simplifies layout on joists or T-bar ceilings and speeds up rough-in work.
Key Features
- Iolite Multiple System: Works with one to three head Iolite trims; this housing is configured for two heads.
- IC-Rated Construction: Suitable for insulated ceilings with no minimum clearance, while maintaining safe operation when installed per instructions.
- Trimless or flanged appearance: Use the optional mud plate for a trimless look or standard flange trims for a defined aperture.
- Independent drivers per head: Each LED module is powered by its own driver for consistent performance and easier servicing.
- Multiple trim types: Compatible with fixed downlight, adjustable snoot, adjustable gimbal and wall wash trims, plus blank plates for unused heads.
- Field-changeable optics: Standard trims include interchangeable 25° spot, 38° narrow flood and 60° flood optics; premium 22° and 26° TIR optics are available.
- Universal dimming: LE4 driver supports Triac, ELV and 0-10V dimming controls for seamless integration with existing systems.
- High efficacy performance: LED system is designed to meet high efficacy requirements, supporting energy code compliance.
Specifications
Technical Specifications
| Brand | Nora Lighting |
| Series | NMIO Series Iolite Multiple Lighting System (MLS) |
| Model Number | NMHIOIC-12LE4 |
| Product Type | IC-rated new construction recessed housing for Iolite Multiple trims (two heads) |
| Light Source | Integrated LED modules (ordered with separate Iolite Multiple trims) |
| Driver | LE4 driver, universal 120-277V input with Triac / ELV / 0-10V dimming, one driver per head |
| Voltage | 120-277V AC |
| Number of Heads Supported | Two LED heads |
| Ceiling Applications | Insulated or non-insulated new construction; drywall or T-bar ceilings using adjustable bar hangers |
| Trim Compatibility | NMIOT / NMIOTL Iolite Multiple trims: fixed downlight, adjustable snoot, adjustable gimbal, wall wash, blank plate |
Physical Specifications
| Housing Material | 0.0475" galvanized steel housing with quick-connects from each driver |
| Junction Box | Pre-wired 40 cubic inch galvanized steel junction box with six 1/2" knockouts and #18 AWG leads |
| Bar Hangers | Adjustable from 13-7/8" to 25" with captive nails; can be repositioned 90° to junction box; includes L-shaped foot and T-bar notch |
| Ceiling Thickness | Accepts standard ceiling thickness up to approximately 1-1/2" (up to about 1" with NMIO-W accessories) |
| Trimless Mud Plate | Mud plate mounts inside housing; screws to drywall and is floated, sanded and painted for a flush, trimless finish |
| Two-Head Ceiling Cutout | Approximately 7-1/2" x 3.95" rectangular opening |
| Housing Height | Approximate overall height of 7" (see spec sheet drawing for exact dimensions) |
| Finish | Galvanized steel housing; reflector and flange finishes determined by selected trims |
| Branch Circuit Capacity | Maximum of eight no. 12 AWG branch circuit conductors rated for at least 90°C (maximum of four with wall wash trims) |
Performance Specifications
| Lumen Output | Nominal 1000 lumens per head (800 lumens per head with Comfort Dim trims; delivered lumens vary with trim and beam) |
| Wattage | 12W LED per head |
| Color Temperatures | 2700K, 3000K, 3500K, 4000K, 5000K; Comfort Dim option warms from 3100K to 2000K as it dims |
| Color Rendering Index (CRI) | 90+ high color rendering |
| Standard Optics | Interchangeable 25° spot, 38° narrow flood and 60° flood reflectors included with each trim |
| Optional Optics | Premium 22° and 26° TIR optics available (not compatible with Comfort Dim) |
| Dimming | Triac, ELV or 0-10V dimming with compatible controls |
| Operating Environment | Suitable for damp locations when used with compatible trims |
Compliance & Safety
| Listings | cULus Listed for damp location |
| IC Rating | IC-rated for direct contact with insulation; not intended for direct contact with spray foam insulation |
| Energy Compliance | Certified to the high-efficacy requirements of California Title 24 JA8-2022 |
| Supply Conductors | Use branch circuit conductors rated for at least 90°C as required |
| Warranty | 5-year limited warranty from Nora Lighting |
Application Examples
- Retail environments such as boutiques, showrooms and department stores where multiple beams highlight displays and merchandise.
- Hospitality spaces including hotel lobbies, guest corridors, lounges and restaurants requiring flexible accent and ambient lighting from a discreet aperture.
- Commercial interiors such as offices, conference rooms and reception areas where targeted illumination enhances architecture and branding.
- Gallery and museum installations where independently adjustable heads can be aimed at artwork or exhibits and fine-tuned with different beam spreads.
- Residential high-end applications including great rooms, home theaters and kitchens where a clean ceiling aesthetic and flexible aiming are desired.
Installation Tips
- Plan head locations carefully based on the objects or surfaces you want to illuminate, allowing enough space for each beam spread and aiming range.
- Use the adjustable bar hangers to span joists from approximately 13-7/8" to 25" and align the L-shaped hanger foot to the bottom of the joist for consistent ceiling height.
- For suspended T-bar ceilings, use the integrated T-bar notch on the bar hangers to secure the housing to the grid before ceiling tiles are installed.
- Observe IC rating limitations by allowing contact with insulation while avoiding direct contact with spray foam insulation as specified by the manufacturer.
- Follow conductor requirements and use supply conductors rated for 90°C minimum, ensuring all connections are made in the 40 cubic inch junction box.
- When using trimless installations, have a skilled drywall finisher float, sand and paint the mud plate so the opening is clean and flush before inserting trims.
- Install trims and optics after ceiling finishing, choosing the appropriate beam (spot, narrow flood or flood) and adjusting each head to the desired target.
- Verify dimmer compatibility with the selected Triac, ELV or 0-10V control system, and test operation at different levels to ensure smooth dimming performance.
Frequently Asked Questions
What is the NMHIOIC-12LE4 used for?
The NMHIOIC-12LE4 is a two-head IC-rated new construction housing designed for Nora Iolite Multiple trims. It provides a recessed platform for adjustable or fixed LED modules in retail, hospitality and commercial applications where flexible multi-head lighting is needed.
Does this housing include the LED light modules and trims?
No. The housing provides the IC-rated frame, drivers and junction box, while the LED modules and reflectors are supplied with Iolite Multiple trims such as fixed downlight, adjustable snoot, gimbal or wall wash options ordered separately.
What dimming options are compatible with the NMHIOIC-12LE4?
The LE4 driver supports Triac, ELV and 0-10V dimming, making the housing compatible with a wide variety of wall dimmers and control systems. For best results, use dimmers listed on Nora Lighting’s compatibility resources.
Is the housing suitable for insulated ceilings?
Yes. The NMHIOIC-12LE4 is IC-rated for direct contact with thermal insulation in the ceiling. However, it should not be installed in direct contact with spray foam insulation and must always be wired with conductors rated for 90°C.
What color temperature options are available with compatible trims?
Iolite Multiple trims for this housing are available in standard color temperatures of 2700K, 3000K, 3500K, 4000K and 5000K. A Comfort Dim option is also available, which warms from about 3100K at full output down to a more intimate 2000K as it dims.
How many lumens does each head provide?
Each Iolite head installed in the NMHIOIC-12LE4 housing typically provides about 1000 lumens at 12W, depending on the selected trim, finish and beam spread. Comfort Dim versions provide approximately 800 lumens per head.
Can the light direction be adjusted after installation?
Yes. When used with adjustable snoot or gimbal trims, each head can rotate and tilt to aim the light where needed. This makes the housing ideal for accenting displays, walls or artwork that may change over time.
Is this product compliant with California Title 24 requirements?
The Iolite Multiple system used with this housing is certified to meet the high-efficacy requirements of California Title 24 JA8-2022 when paired with compatible trims and modules, supporting energy code compliance in applicable jurisdictions.
Can I use this housing on a suspended T-bar ceiling?
Yes. The included bar hangers feature a T-bar notch that allows the housing to be attached securely to a suspended ceiling grid. Always follow local codes and grid manufacturer recommendations when installing in T-bar ceilings.
What warranty does Nora Lighting provide for this housing?
Nora Lighting backs the Iolite Multiple system, including the NMHIOIC-12LE4 housing, with a 5-year limited warranty, offering long-term reliability for commercial and residential projects.
