Product Description

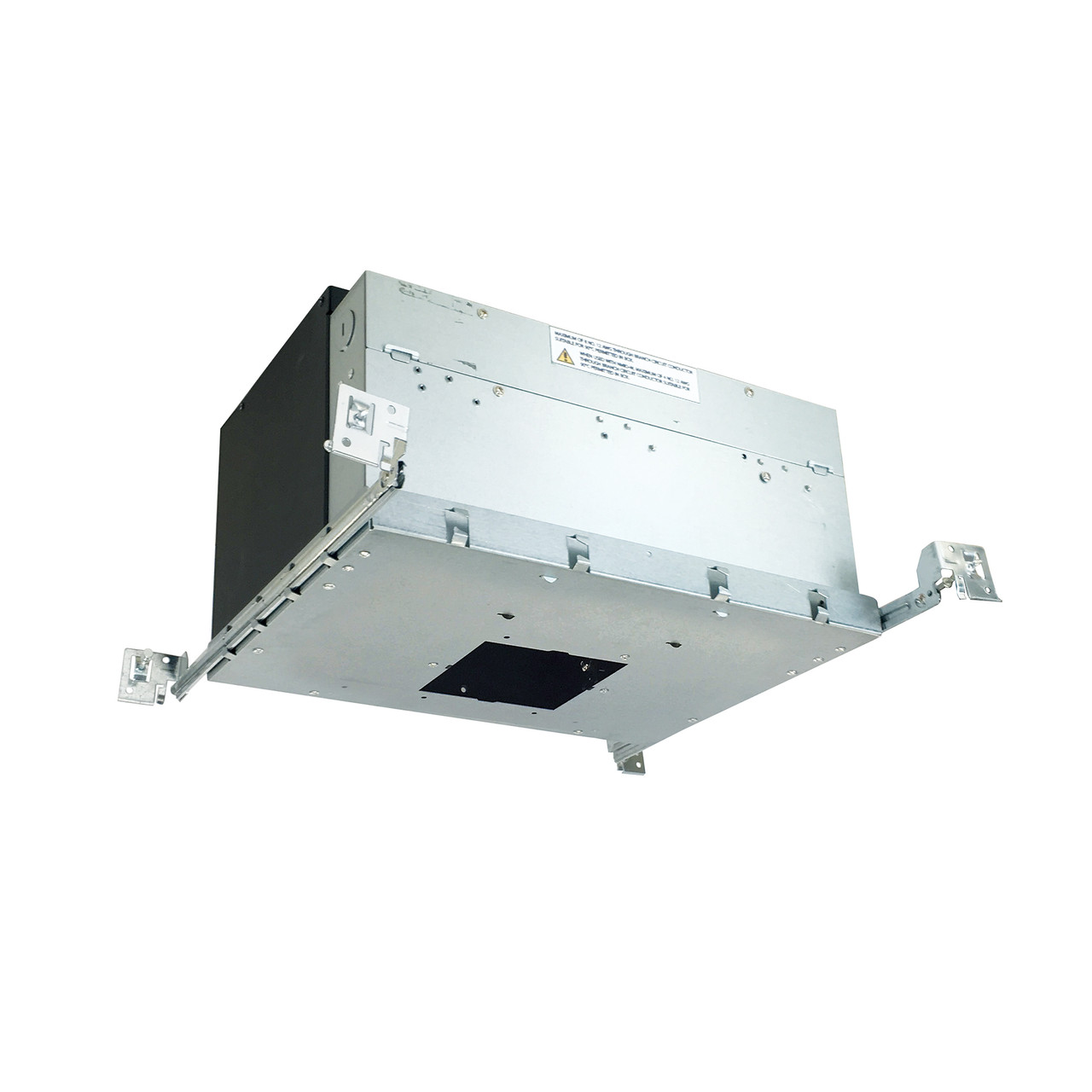

NMHIOIC-11LE4 is a precision-engineered one-head housing from the Nora Lighting Iolite Multiple Lighting System (MLS). This new construction IC-rated unit offers architectural flexibility with high-output performance and customizable optics, making it ideal for upscale retail, commercial, and hospitality environments.
• One Adjustable or Fixed LED Head
• 1000lm @ 12W (800lm for Comfort Dim)
• IC-Rated Housing for Direct Contact with Insulation
• 120/277V Input with Triac, ELV, or 0-10V Dimming
Free shipping on orders over $250
Why Choose the NMHIOIC-11LE4?
- Highly customizable with trimless or flanged design and multiple optics
- Delivers architectural-grade lighting in compact new construction applications
- Independently driven LED modules ensure efficient, long-lasting performance
- Meets California Title 24 JA8-2022 efficacy requirements
Key Features
- One-Head Configuration: Ideal for focused applications requiring a single point of illumination
- High Lumen Output: 1000lm @ 12W per head (Comfort Dim 800lm)
- Field Adjustable Optics: Includes 25°, 38°, and 60° lenses per head
- Driver Compatibility: Triac, ELV, and 0-10V dimming supported
- Installation Flexibility: Includes bar hangers and pre-wired galvanized junction box
- Trim Styles: Fixed Downlight, Adjustable Snoot, Gimbal, or Wall Wash
Specifications
Technical Specs
| Input Voltage | 120/277V |
| Wattage | 12W per head |
| Dimming | Triac / ELV / 0-10V |
| IC Rating | IC Rated for direct insulation contact |
Performance Specs
| Lumen Output | 1000lm per head (up to 1368lm depending on configuration) |
| Comfort Dim Option | 800lm, dims from 3100K to 2000K |
| Color Temperatures | 2700K, 3000K, 3500K, 4000K, 5000K |
| Color Rendering Index (CRI) | 90+ |
| Beam Angles | 25° Spot, 38° Narrow Flood, 60° Flood |
Physical Specs
| Housing Material | 0.0475" Galvanized Steel |
| Ceiling Thickness | Up to 1-1/2" |
| Cutout Size | 3.95" x 3.95" |
| Installation Type | New Construction with Adjustable Bar Hangers |
Applications
- Retail showrooms and boutiques
- Hotel lobbies and hospitality venues
- Commercial corridors and conference areas
- Residential new construction needing minimalist recessed lighting
Installation Tips
- Use adjustable bar hangers for quick alignment to joists or T-bars
- Ensure compatibility with ceiling thickness up to 1-1/2"
- Trimless installs require professional drywall finishing for a seamless look
- Use included quick connects and junction box for efficient wiring
Frequently Asked Questions
Q: Is this housing IC rated?
A: Yes, the NMHIOIC-11LE4 is IC-rated and approved for direct contact with insulation.
Q: Can I use this with 0-10V dimmers?
A: Yes, it is compatible with Triac, ELV, and 0-10V dimming systems.
Q: What optics are included?
A: Each head includes 25°, 38°, and 60° field-changeable optics. Premium TIR options are also available separately.
Q: Can I choose different reflector styles?
A: Yes, you can select from fixed, snoot, gimbal, wall wash, or blank trim types per head.
Q: What’s the benefit of Comfort Dim?
A: Comfort Dim mimics incandescent dimming, tuning from 3100K down to a warm 2000K for ambient settings.
Q: Is it suitable for damp locations?
A: Yes, it is cULus listed for damp locations and Title 24 JA8-2022 compliant.
