Product Description

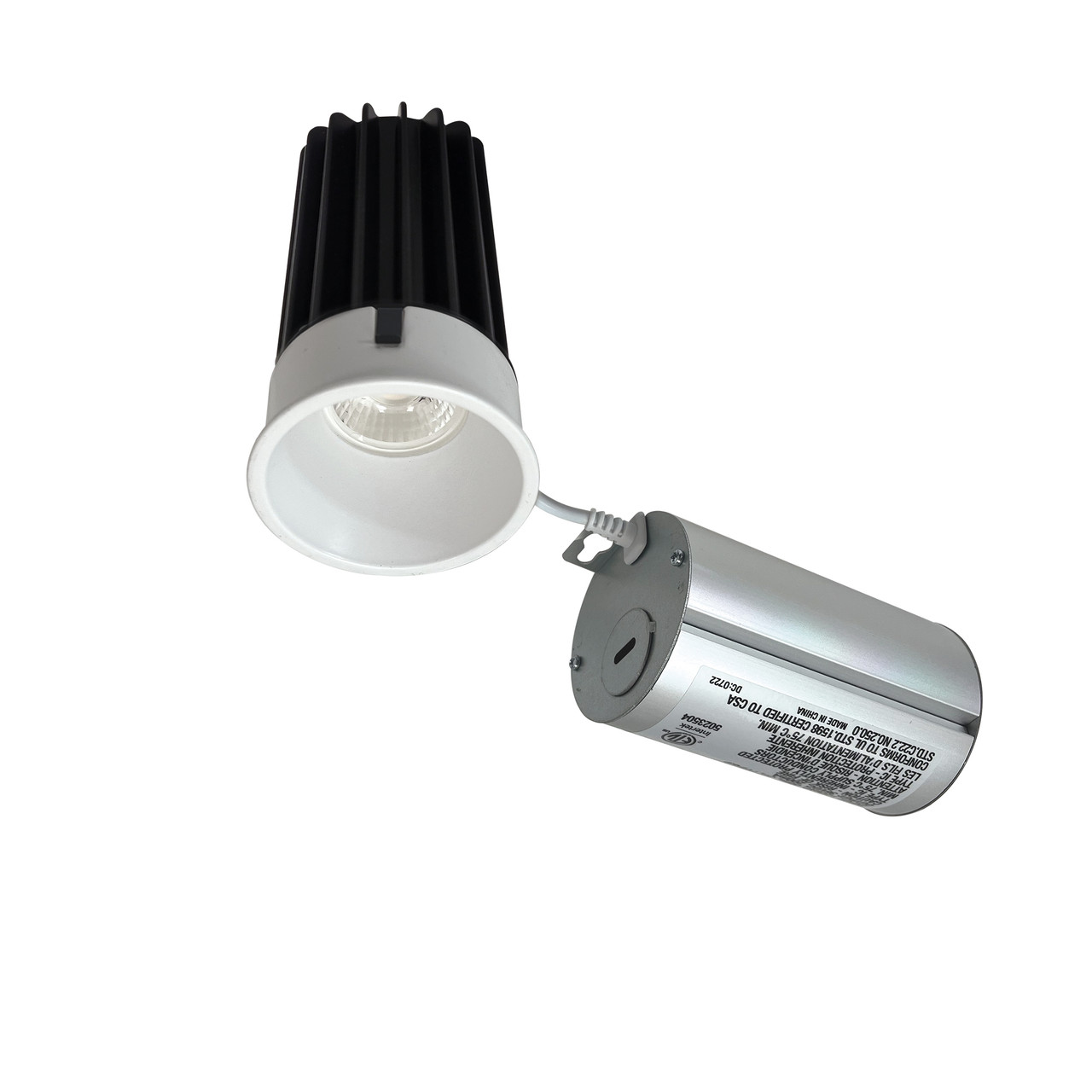

NM2-2RTLDC8540MPW 2" M2 Round Trimless LED Downlight delivers up to 935 lumens at a crisp 4000K with a 90+ CRI, ensuring bright, true-to-color illumination. Designed by Nora Lighting, this fixture features a trimless, modern look with a matte powder white finish, making it an excellent choice for architectural applications where a seamless ceiling appearance is desired.
Nora Lighting
935 lumens • 10W • 4000K • 90+ CRI • Matte Powder White • Trimless ceiling integration
- Lumen Output: 935lm
- Wattage: 10W
- Color Temperature: 4000K
- CRI: 90+
- Finish: Matte Powder White
- Free shipping on orders over $250
Product Benefits
- Seamless design: Trimless mud plate installation creates a clean, modern ceiling appearance.
- High-performance output: Produces 935 lumens at 4000K for bright, balanced lighting.
- Versatile installation: Suitable for remodels or new construction without requiring a housing.
- Energy efficient: ENERGY STAR certified and Title 24 JA8-2022 compliant for sustainability and efficiency.
Key Features
- No housing required – IC Air-Tight rated for safe installation
- Easy installation with quick-disconnect wiring
- Die-cast aluminum construction with matte powder white finish
- Dimmable with Triac or ELV dimmers
- Certified for damp locations and backed by a 5-year limited warranty
Specifications
| Technical Specs | |
|---|---|
| Input Voltage | 120V |
| Wattage | 10W |
| Lumen Output | 935lm |
| Color Temperature | 4000K |
| CRI | 90+ |
| Dimming | Triac or ELV |
| Physical Specs | |
|---|---|
| Cutout | 2-3/4" |
| Finish | Matte Powder White (MPW) |
| Construction | Die-cast aluminum |
| Compliance & Safety | |
|---|---|
| Certifications | cETLus, ENERGY STAR |
| California Title 24 | JA8-2022 Compliant |
| Warranty | 5-Year Limited |
Application Examples
- Modern residential living rooms, kitchens, and hallways
- Hospitality and retail settings requiring architectural-grade lighting
- Office and commercial spaces with seamless ceiling integration
- Gallery and showroom lighting where clean aesthetics are essential
Installation Tips
- Requires NM2-TLMR-R Trimless Mud Plate for mounting
- Cut ceiling opening at 2-3/4" for proper fit
- Secure mud plate before applying ceiling finish for seamless look
- Compatible with both remodel and new construction installations
- Use only with approved dimmers for smooth performance
Frequently Asked Questions
Q: Does this downlight require a housing?
A: No, the NM2-2RTLDC series is designed for housing-free installation with the trimless mud plate.
Q: Is the NM2-2RTLDC8540MPW dimmable?
A: Yes, it is dimmable using Triac or ELV dimming systems.
Q: What ceiling cutout size is needed?
A: A 2-3/4" cutout is required for proper installation.
Q: Is it safe to install in insulated ceilings?
A: Yes, it is IC rated for direct contact with insulation, though not with spray foam insulation.
Q: What finish options are available?
A: Matte Powder White (MPW) and Matte Black (BB).
Q: Is it ENERGY STAR certified?
A: Yes, it meets ENERGY STAR standards and Title 24 JA8-2022 requirements.
Q: What is the lumen output at 4000K?
A: This model delivers 935 lumens at 4000K with 90+ CRI
Q: What accessories are required?
A: The NM2-TLMR-R trimless mud plate is required. Optional accessories include NF-R246, NFC-R275, and extension cables.
